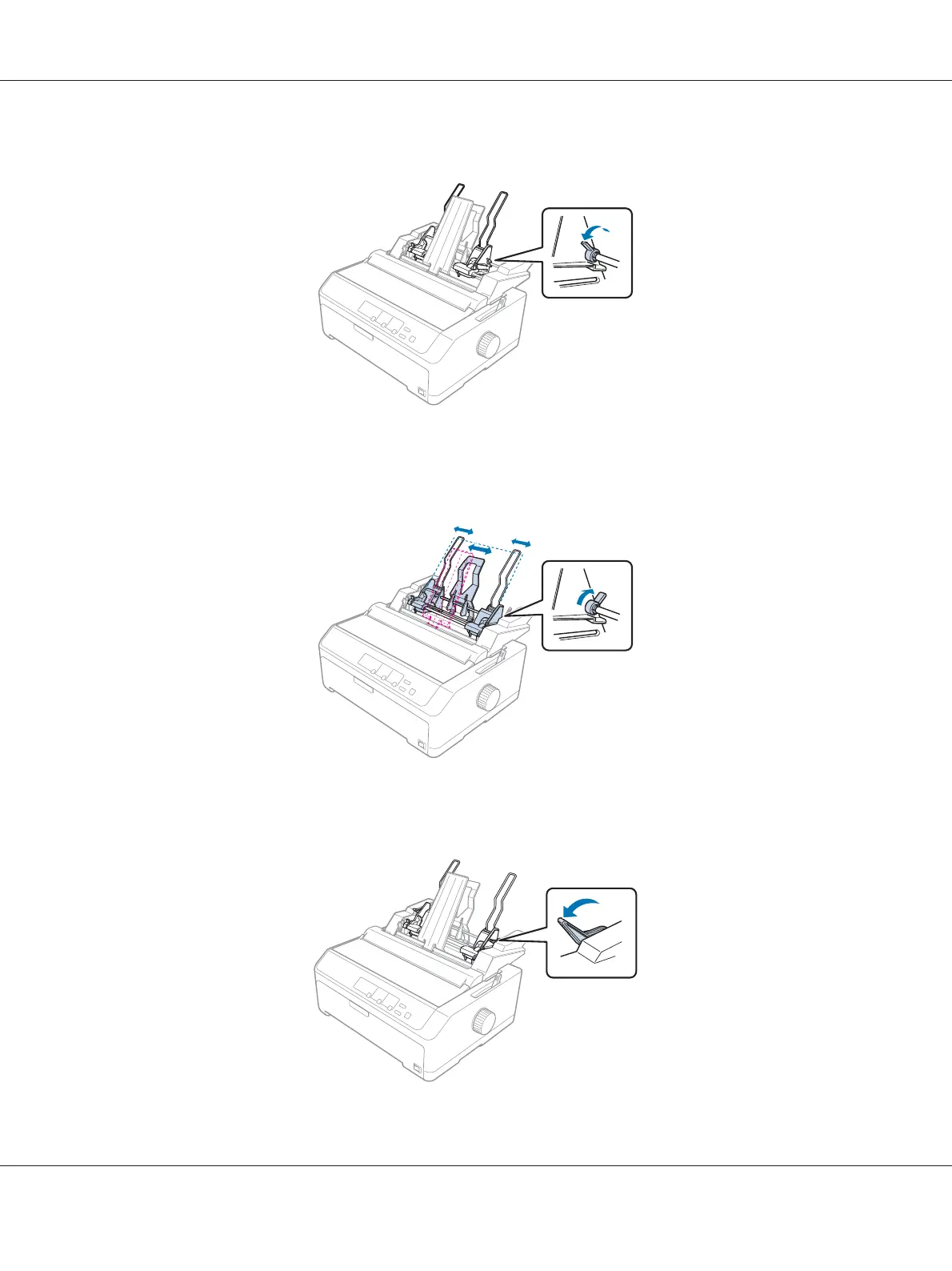

2. Pull the lock levers on the edge guides forward to release them.
3. Slide the left paper guide until it is aligned with the triangle mark; then lock it in place by pushing
back its lock lever. Next, slide the right paper guide to roughly match the width of your paper. Slide
the paper support to midway between the paper guides.
4. Pull both paper set levers forward until the paper guides retract and lock open to allow paper
loading.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Options and Consumables 133
