Installing the roll paper holder
Follow these steps to install the roll paper holder on your printer:
1. Make sure the printer is turned off.
2. Remove the sheet guide, then remove the tractor if it is installed in the pull or rear push position.
Reinstall the paper tension unit if necessary.

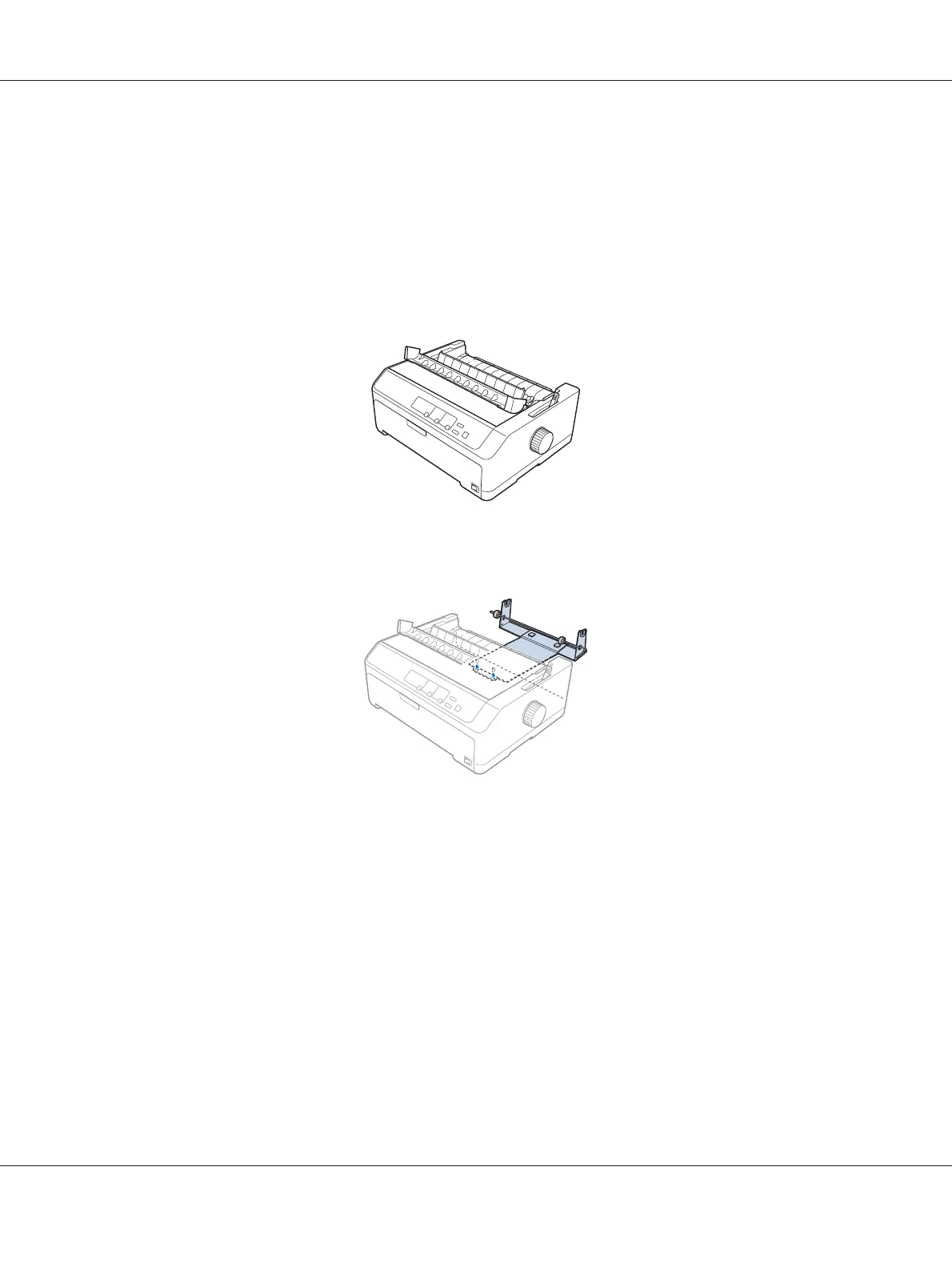

3. Position the roll paper holder underneath the printer as shown below. Fit the two positioning pegs
on the bottom of the printer into the two holes in the base plate.
!
Caution:
The roll paper holder is not fastened to the printer; only the printer’s weight and the two
positioning pegs hold it in place. If you pick up the printer, be careful not to drop the roll paper
holder.
Loading roll paper
Follow these steps to load a roll of paper after you install the roll paper holder:
1. Make sure the printer is turned off and the sheet guide is removed. Also make sure the tractor is not
installed in the pull or rear push position, and the paper tension unit is installed.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Options and Consumables 138
To Next Page
