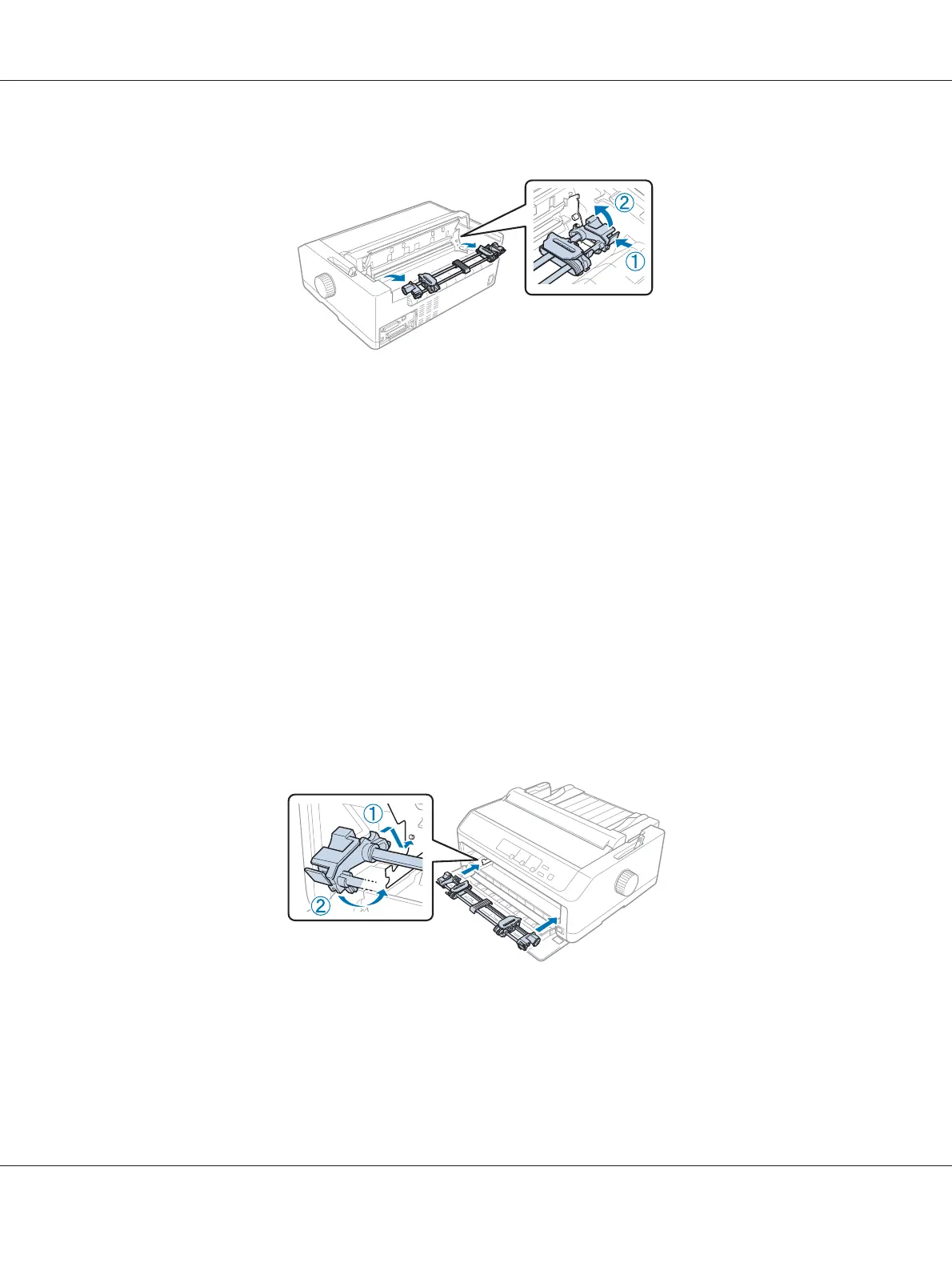

3. Press the tractor’s lock tabs, tilt the tractor up, and lift it out of the printer.
Using the tractor in the front push position
Installing the tractor in the front push position
Before installing the tractor in the front push position, remove it from its current position. If the
tractor is in the rear push position, remove the sheet guide and then press the tractor’s lock tabs while
lifting it out. If the tractor is in the pull position, remove it following the instructions in “Removing the
tractor from the pull position” on page 38.
1. Make sure the printer is turned off. If necessary, install the sheet guide on your printer as described
in the supplied setup sheet.
2. If the sheet guide is installed in the front, remove it by grasping the fins on both sides and pulling
the guide slightly up and away from the printer.
3. Insert the tractor into the printer’s mounting slots and press down both ends of the tractor to make
sure that it is firmly seated.
See “Loading paper with the front push tractor” on page 27 for instructions on loading continuous
paper with the front push tractor.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 26
