9. Slide the edge guides on the sheet guide to the center.

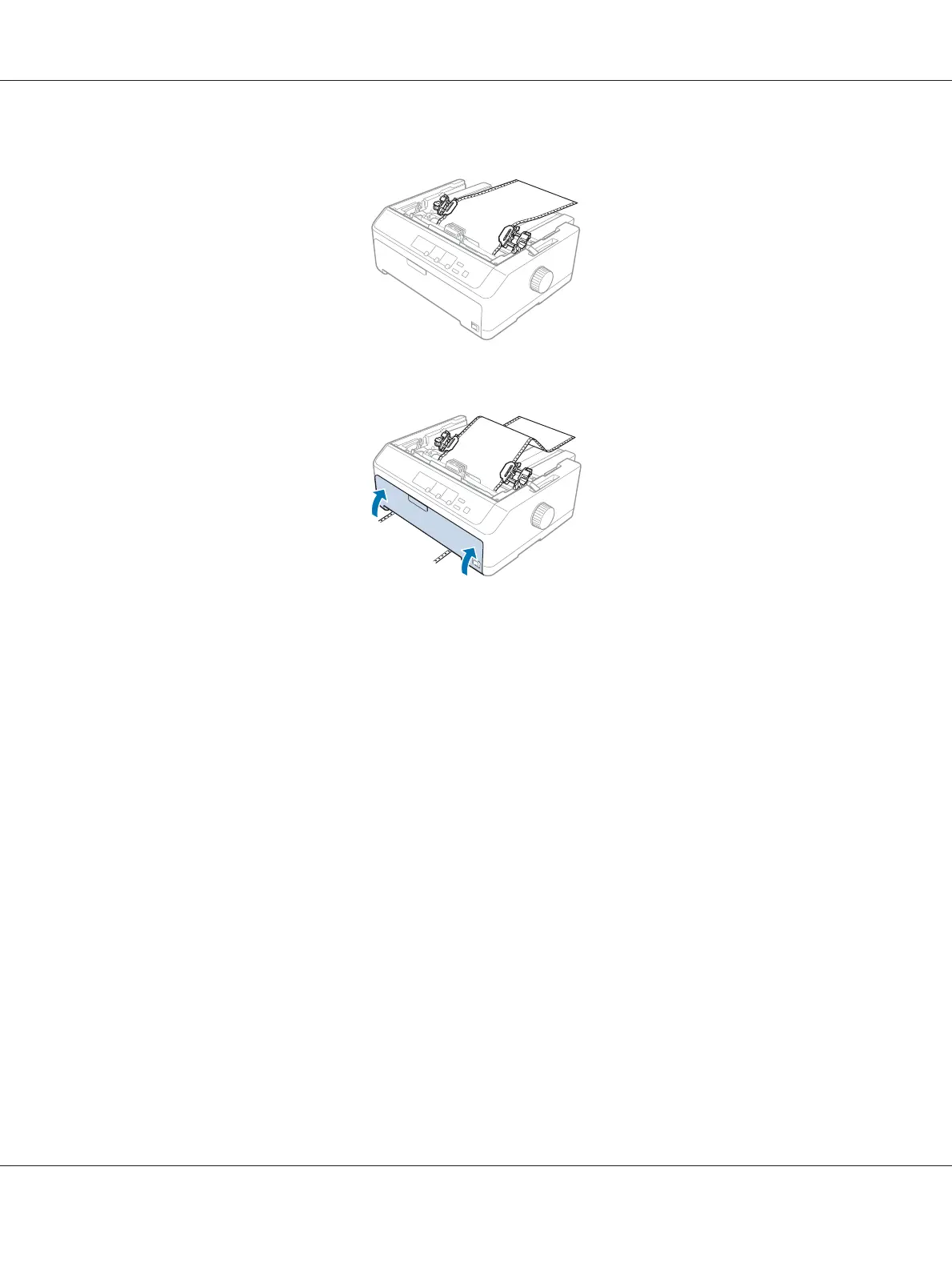

10. Close the front cover as shown below.
Note:
When using the bottom slot, you do not need to open the front cover.
11. Turn on the printer.
12. Remove any slack in the paper by pressing the LF/FF button.
!
Caution:
Always remove any slack from the paper; otherwise print quality may deteriorate.
13. If necessary, follow the steps in “Adjusting the top-of-form position” on page 56 to adjust the
current position of the paper.
!
Caution:
Never use the knob to adjust the top-of-form position; this may damage the printer or cause it
to lose the top-of-form position.
14. Attach the printer cover by inserting the front tabs into the slots on the printer, then lowering the
cover into place. Then close the paper guide cover.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 37
