Loading paper in the front sheet guide
You can load single sheets or multipart forms one at a time in the front sheet guide. Follow these
steps:
!
Caution:
Do not load labels or envelopes in the front sheet guide.
1. Make sure the sheet guide is in the upright position and the edge guides are open all the way to the
left and right. Set the paper release lever to the single-sheet position.

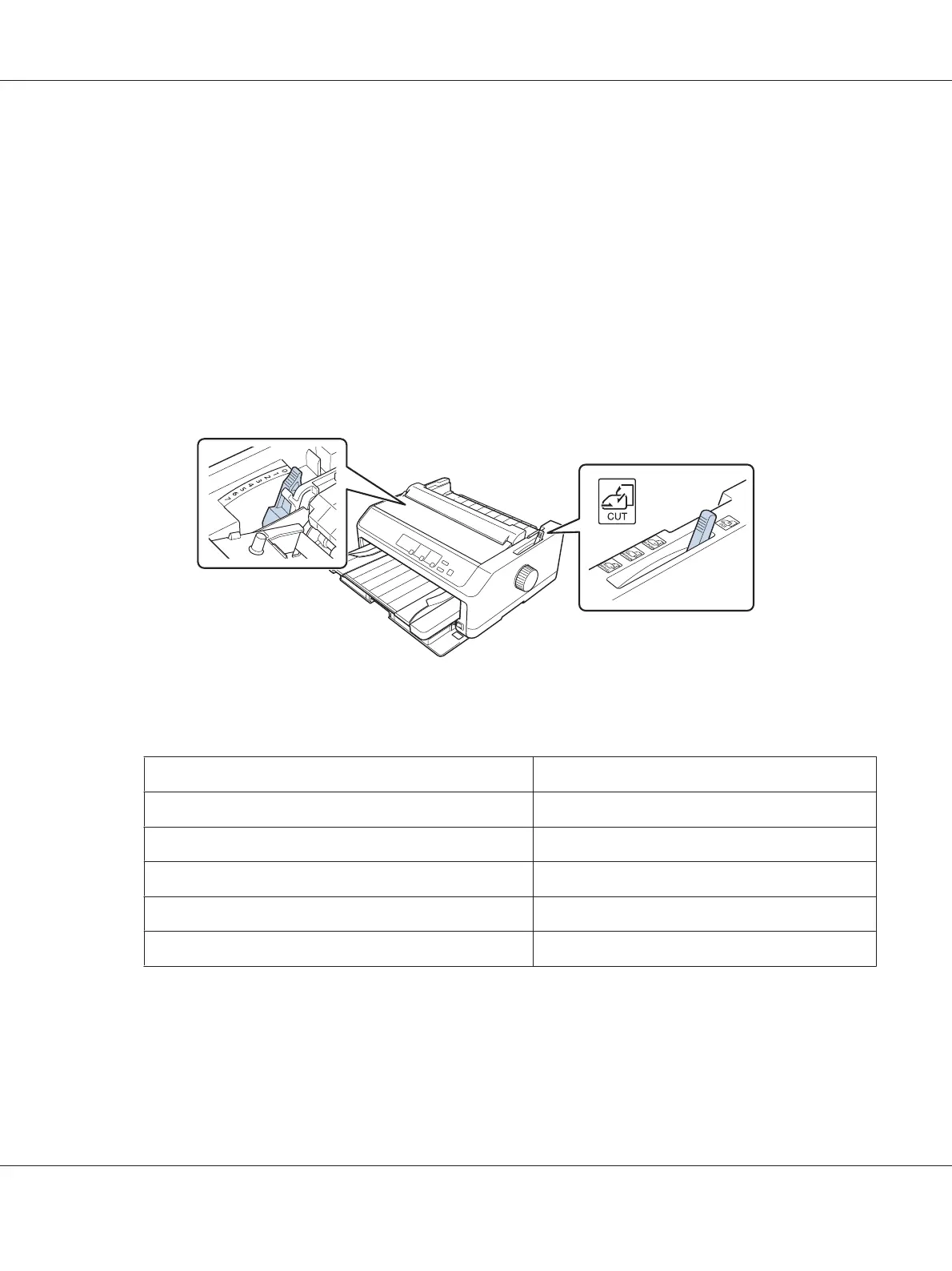

2. If you are using ordinary single-sheet paper, set the paper-thickness lever (located under the
printer cover) to 0 as shown below.
If you are loading a single-sheet multipart form, set the paper-thickness lever to the proper
position, as shown in the table below.
Multipart form type Paper-thickness lever position
2 parts (original + 1 copy) 1
3 parts (original + 2 copies) 2
4 parts (original + 3 copies) 3
5 parts (original + 4 copies) 4
6 parts (original + 5 copies) 5 or 6
3. Turn on the printer, if necessary.
4. Slide the left edge guide to the triangle mark on the sheet guide. Then adjust the right edge guide to
match the width of your paper.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 46
To Next Page
