Epson DFX-9000 User Manual

10 Loading Paper On the Front Tractor

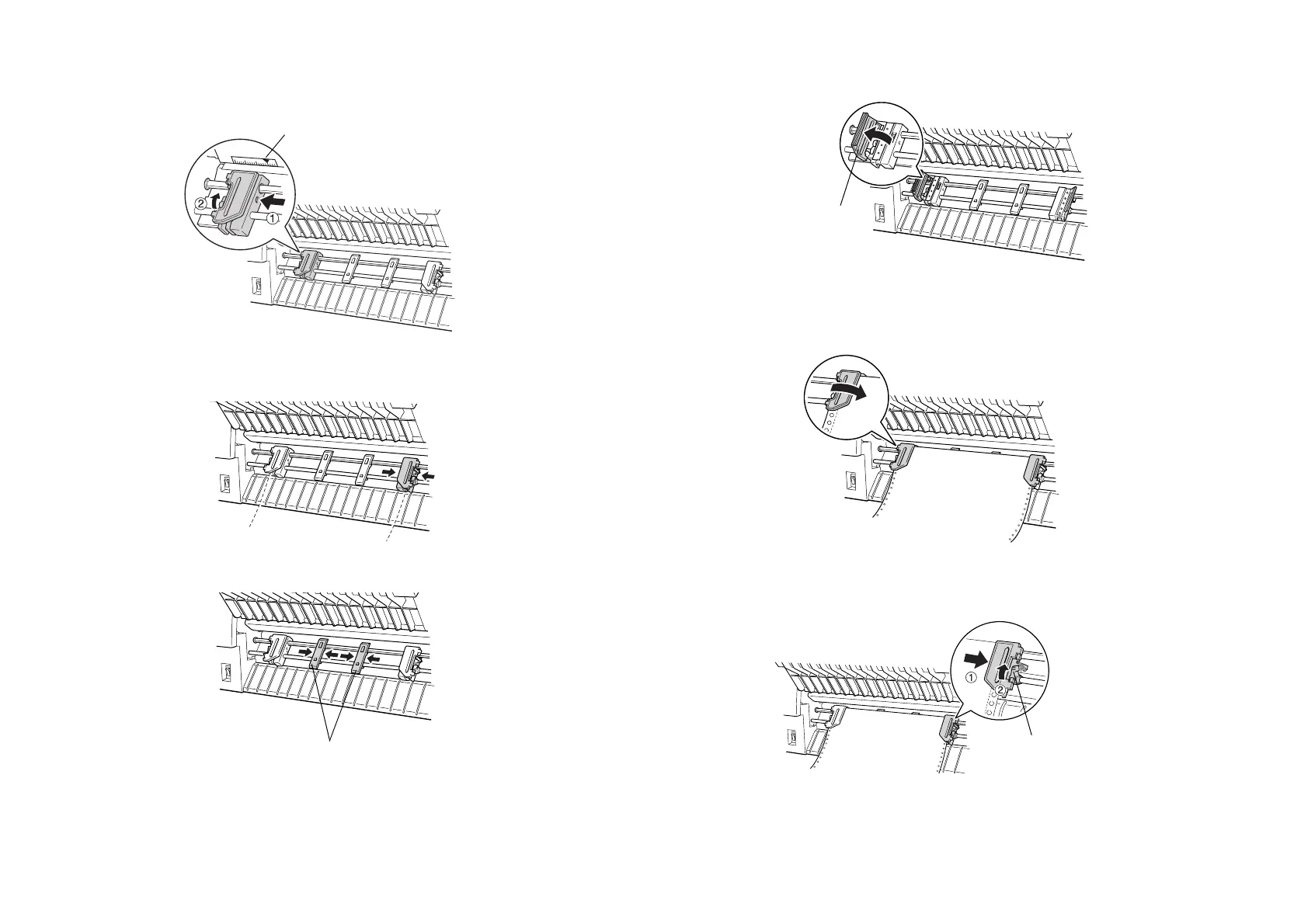

3. Position the left sprocket so the pins are to the left of the arrow mark on the
scale. Push up the sprocket lock lever to lock it in place.
4. Slide the right sprocket to match the width of your paper. (Do not lock it in
place yet.)
5. Center the two paper supports between the two sprockets.
Note:
For paper less than four inches wide, remove the paper supports by pulling them
off the tractor.
6. Open both sprocket covers.
7. Be sure your paper has a clean, straight edge and that the printable side of
the paper is facing up. Fit the first few holes over the sprocket pins and close
the sprocket covers.
8. Slide the right sprocket until the paper is straight and there is no slack. Lock
the sprocket by pushing up the sprocket lock lever. (The right sprocket may
move slightly.)
Note:
Be careful not to pull the paper too tightly.
arrow mark
paper supports
sprocket cover
sprocket lock lever
http://www.ochimp.com
http://www.ochimp.com
For More Info
Click Here ===>

Epson DFX-9000 Specifications

General

Color	No
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Maximum resolution	240 x 144 DPI
Maximum print size	A4 (210 x 297 mm)
Standard interfaces	Serial
Dimensions (WxDxH)	700 x 378 x 363 mm
Power requirements	100-240V, 50-60Hz
Connectivity technology	Wired
Compatible operating systems	Microsoft Windows 95 / 98 / 2000 / Me / XP/ Windows NT 4.0
Sound pressure level (printing)	58 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Power consumption (standby)	1.85 W
Power consumption (typical)	7.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
