Epson DFX-9000 User Manual

Loading Paper On the Front Tractor 11
English

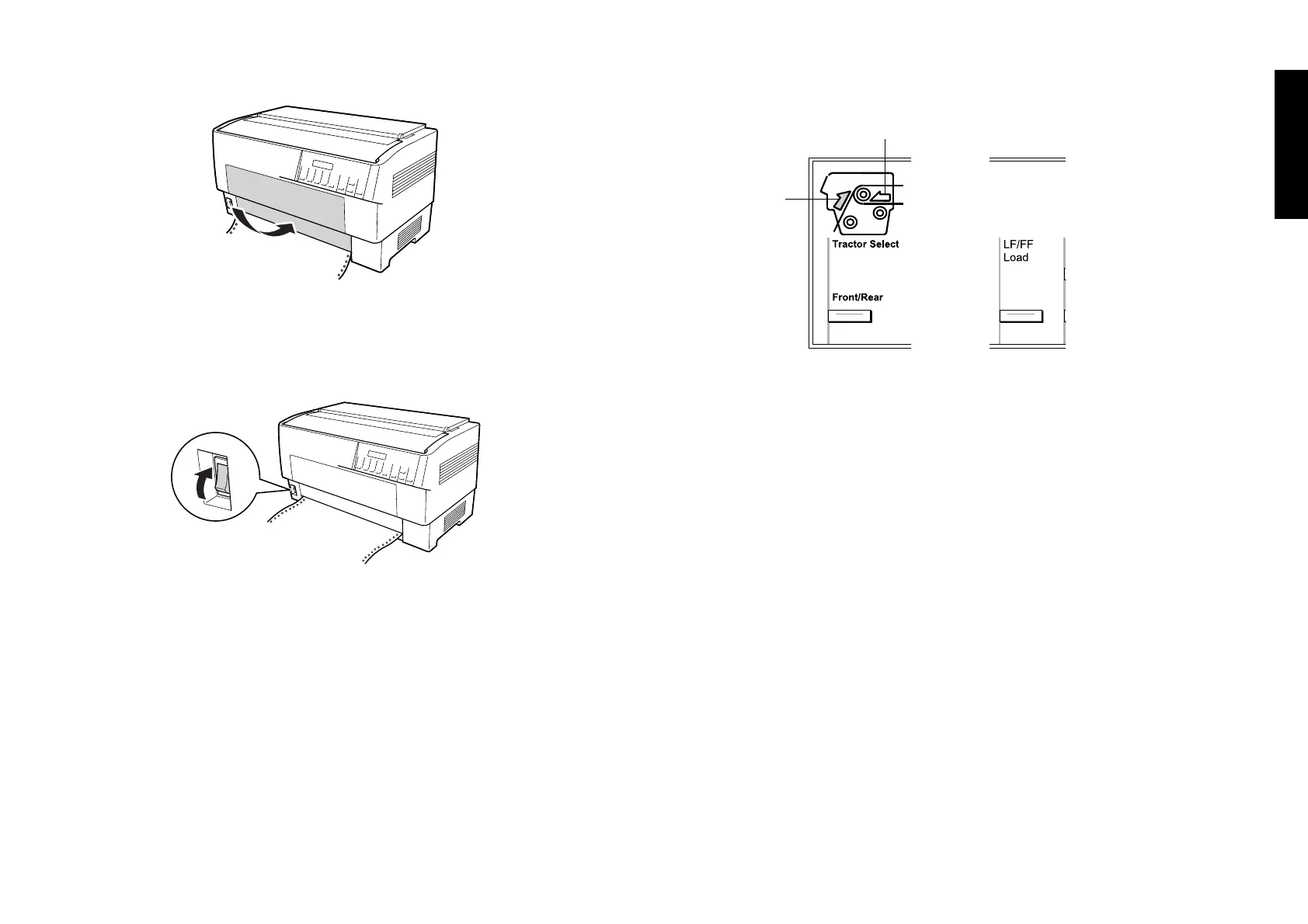

9. Pull the printer’s front cover out slightly, then close it.
c
Caution:
Do not just push down the front cover; always pull it out slightly before
closing it.
10. Turn on the printer if it is off.
You hear the print head moving to the left and
Ready appears on the LCD.
Either the front or rear
Tractor Select arrow lights up to indicate the tractor
that was selected last.
11. If the front tractor arrow light is red, press the
LF/FF Load button to load
the paper.
If the rear tractor arrow light is red, press the
Front/Rear button to switch to
the front tractor. When the printer switches tractors, it loads the paper
automatically.
The front tractor arrow light turns green and the paper is loaded to the top-of-
form position. If you need to adjust the paper position, see “Adjusting the Paper
Position” in your on-screen Reference Guide.
front
rear
http://www.ochimp.com
http://www.ochimp.com
For More Info
Click Here ===>

Epson DFX-9000 Specifications

General

Color	No
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Maximum resolution	240 x 144 DPI
Maximum print size	A4 (210 x 297 mm)
Standard interfaces	Serial
Dimensions (WxDxH)	700 x 378 x 363 mm
Power requirements	100-240V, 50-60Hz
Connectivity technology	Wired
Compatible operating systems	Microsoft Windows 95 / 98 / 2000 / Me / XP/ Windows NT 4.0
Sound pressure level (printing)	58 dB
Mean time between failures (MTBF)	20000 h
Sustainability certificates	ENERGY STAR
Power consumption (standby)	1.85 W
Power consumption (typical)	7.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
