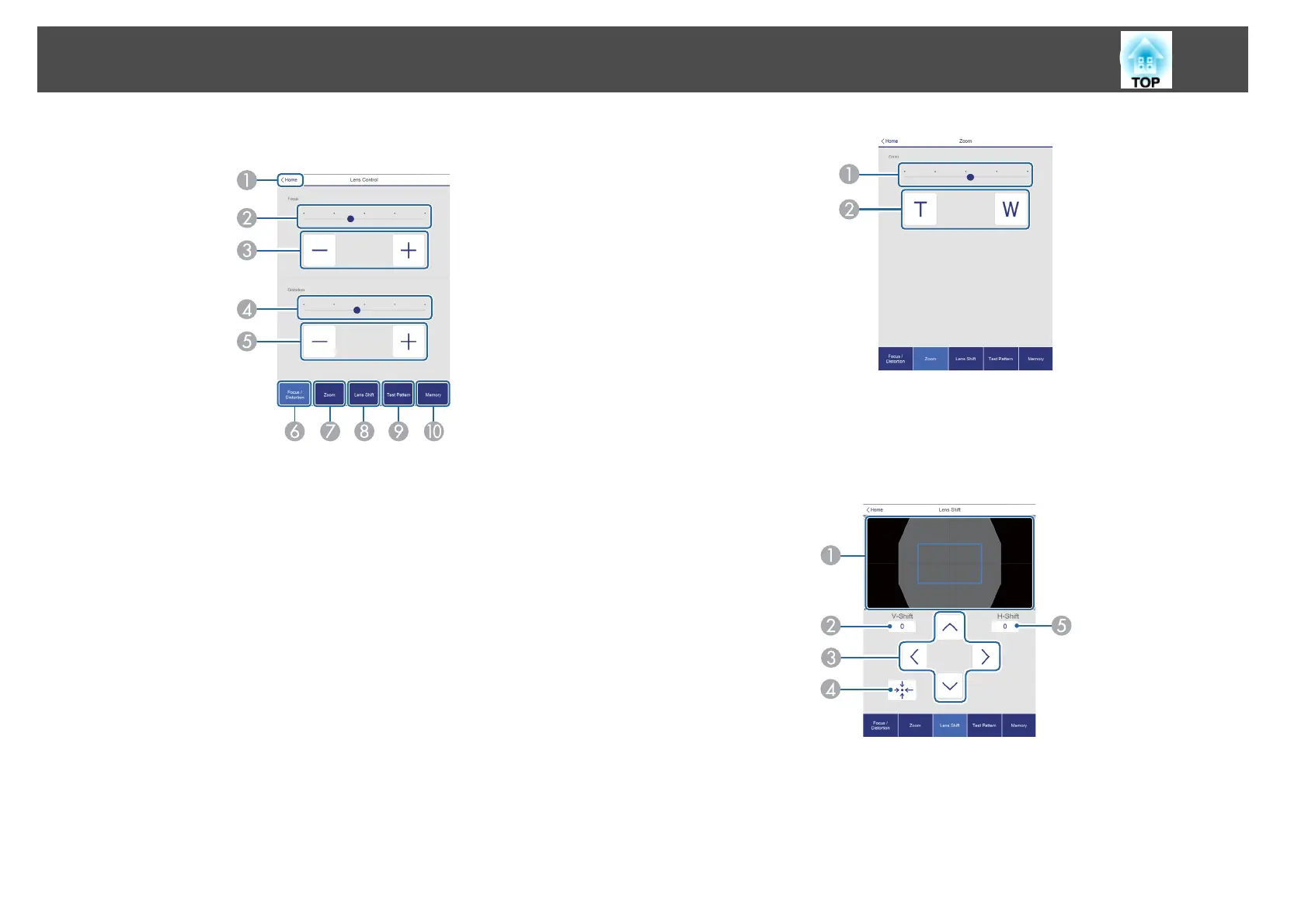

Focus/Distortion Operation Screen
A
Moves to the Home screen.
B
Move the slider to adjust the focus.
C
Press the buttons to adjust the focus.
D
Move the slider to adjust image warping.
*
E
Press the buttons to adjust image warping.
*
F
Displays the Focus/Distortion operation screen.
G
Displays the Zoom operation screen.
H
Displays the Lens Shift operation screen.
I
Displays the Test Pattern operation screen.
J
Displays the Memory operation screen.
* This is not available for ELPLU02.
Zoom Operation Screen
This is not available for ELPLX01 and ELPLR04.
A
Move the slider to adjust the zoom.
B
Press the buttons to adjust the zoom.
Lens Shift Operation Screen
A
Displays the position of the image as a blue square. When you move the image
position, a red square is displayed at the destination.
B
Displays the vertical image position. You can directly specify the position by tap‐
ping it and entering a number.
C
Moves the image position up, down, left, or right.
Monitoring and Controlling
207
