Corner Wall
This allows you to correct distortion that occurs when projecting on a
surface with right angles, such as a square pillar or the corner of a room,
and adjust the amount of expansion and contraction.
Face the projector directly opposing the screen with the lens position
moved to the home position.
s "Adjusting the Position of the Projected Image (Lens Shift)" p.33
a
• Project onto a surface with a right angle.
• If a large amount of adjustment is performed, the focus may not be
uniform even after making adjustments.
• If 4K Enhancement is enabled, a message is displayed. Select Yes to
disable 4K Enhancement. (EB-G7905U/EB-G7900U/EB-G7500U/EB-
G7400U only)
s Image - Image Enhancement - 4K Enhancement p.137
• This is not available for ELPLX01.
Correction range
The correction range is as follows. The lens for projectors with built-in lens
is ELPLM08.
EB-G7905U/EB-G7900U/EB-G7500U/EB-G7400U/EB-G7200W/EB-
G7000W

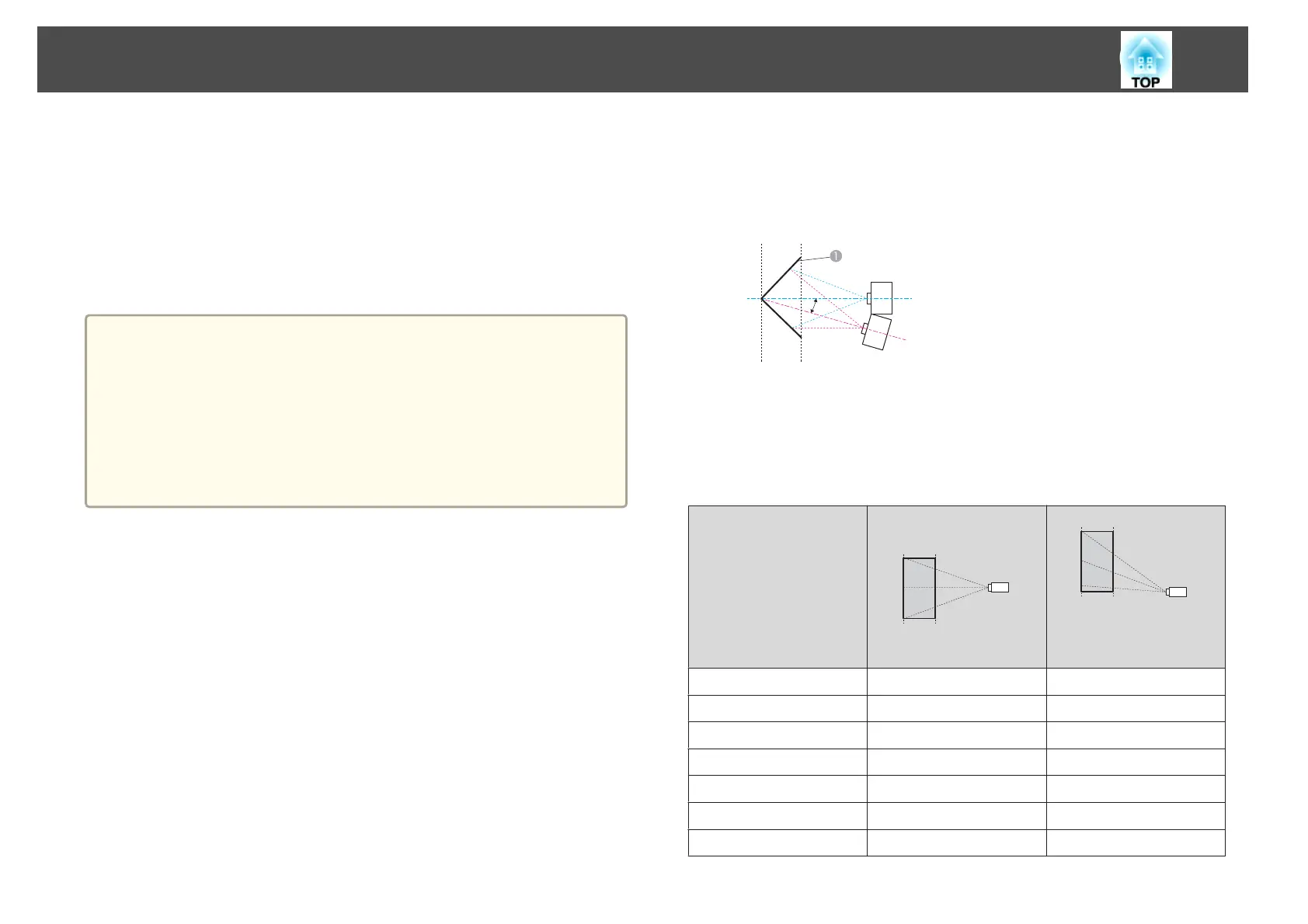

Concave horizontal corner correction (correction to bilateral symmetry by
using the corner as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
α in the figure above is the maximum angle in which the projector can
move. See the table below for detailed values. (Approximate value when
projecting at maximum zoom. ELPLR04 does not support lens shift.)
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 31Ëš 23Ëš
ELPLX01 - -
ELPLU03 29Ëš 9Ëš
ELPLU04/ELPLU02 31Ëš 14Ëš
ELPLR04 32Ëš -
ELPLW05 33Ëš 18Ëš
ELPLW06/ELPLW04 31Ëš 25Ëš
Adjusting Projected Images
76
