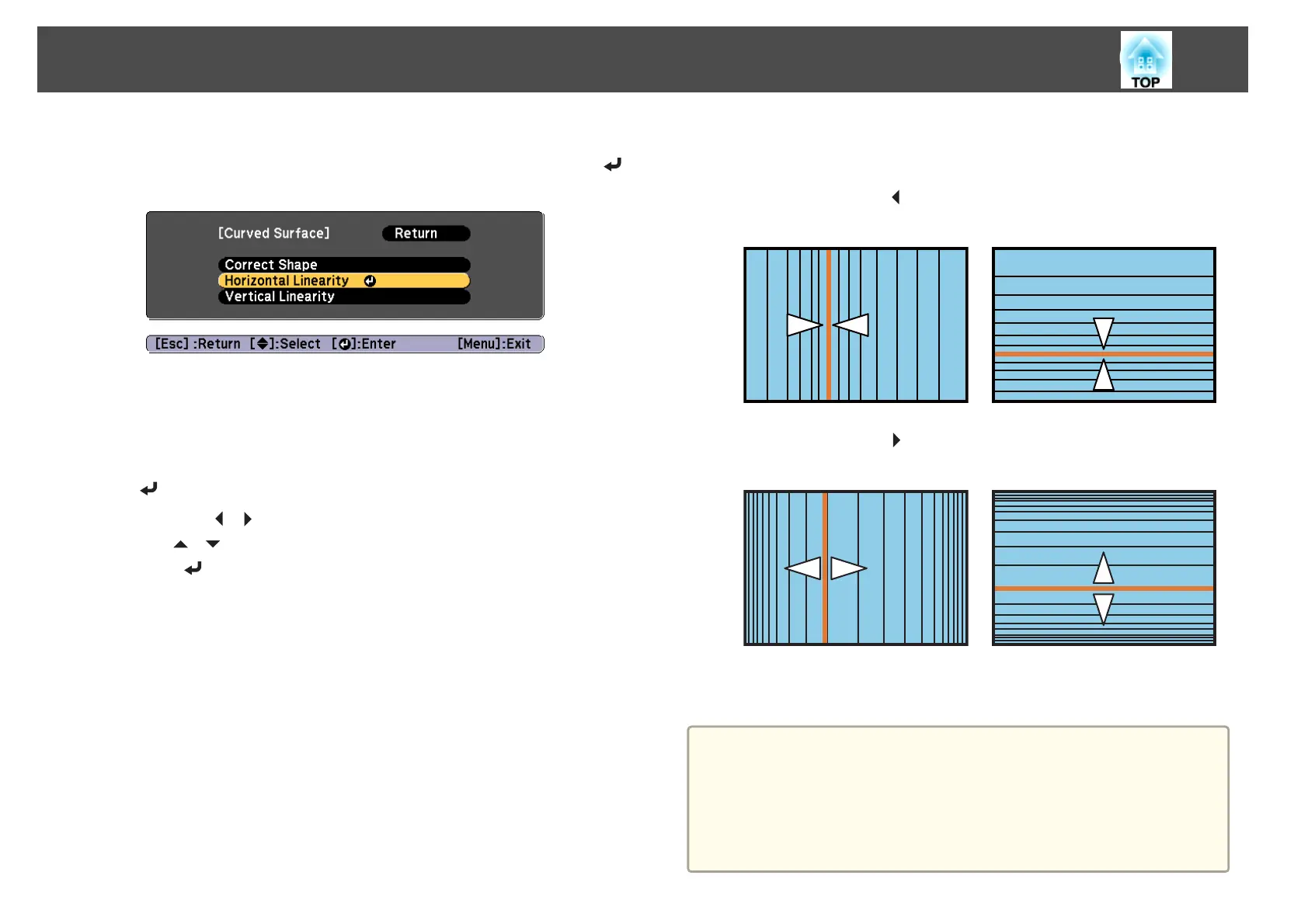

Adjust the linearity.
Correct it so that the distance between lines is equal.
When pressing the [
] button
When Horizontal Linearity is selected When Vertical Linearity is selected
When pressing the [ ] button
When Horizontal Linearity is selected When Vertical Linearity is selected
m
To complete the corrections, press the [Menu] button.
a
You can fine tune the corrected results. Use Quick Corner to adjust
the tilt of the image, and then use Point Correction for fine tuning.
Select Quick Corner or Point Correction on the screen from step
4.
s "Quick Corner" p.64
s "Point Correction" p.84
Corner Wall
This allows you to correct distortion that occurs when projecting on a
surface with right angles, such as a square pillar or the corner of a room,
and adjust the amount of expansion and contraction.
Face the projector directly opposing the screen with the lens position
moved to the home position.
s "Adjusting the Position of the Projected Image (Lens Shift)" p.33
a
• Project onto a surface with a right angle.
• If a large amount of adjustment is performed, the focus may not be
uniform even after making adjustments.
• If 4K Enhancement is enabled, a message is displayed. Select Yes to
disable 4K Enhancement. (EB-G7900U/EB-G7400U only)
s Image - Image Enhancement - 4K Enhancement p.135
• This is not available for ELPLX01.
Correction range
The correction range is as follows. The lens for projectors with built-in lens
is ELPLM08.
Adjusting Projected Images
75
