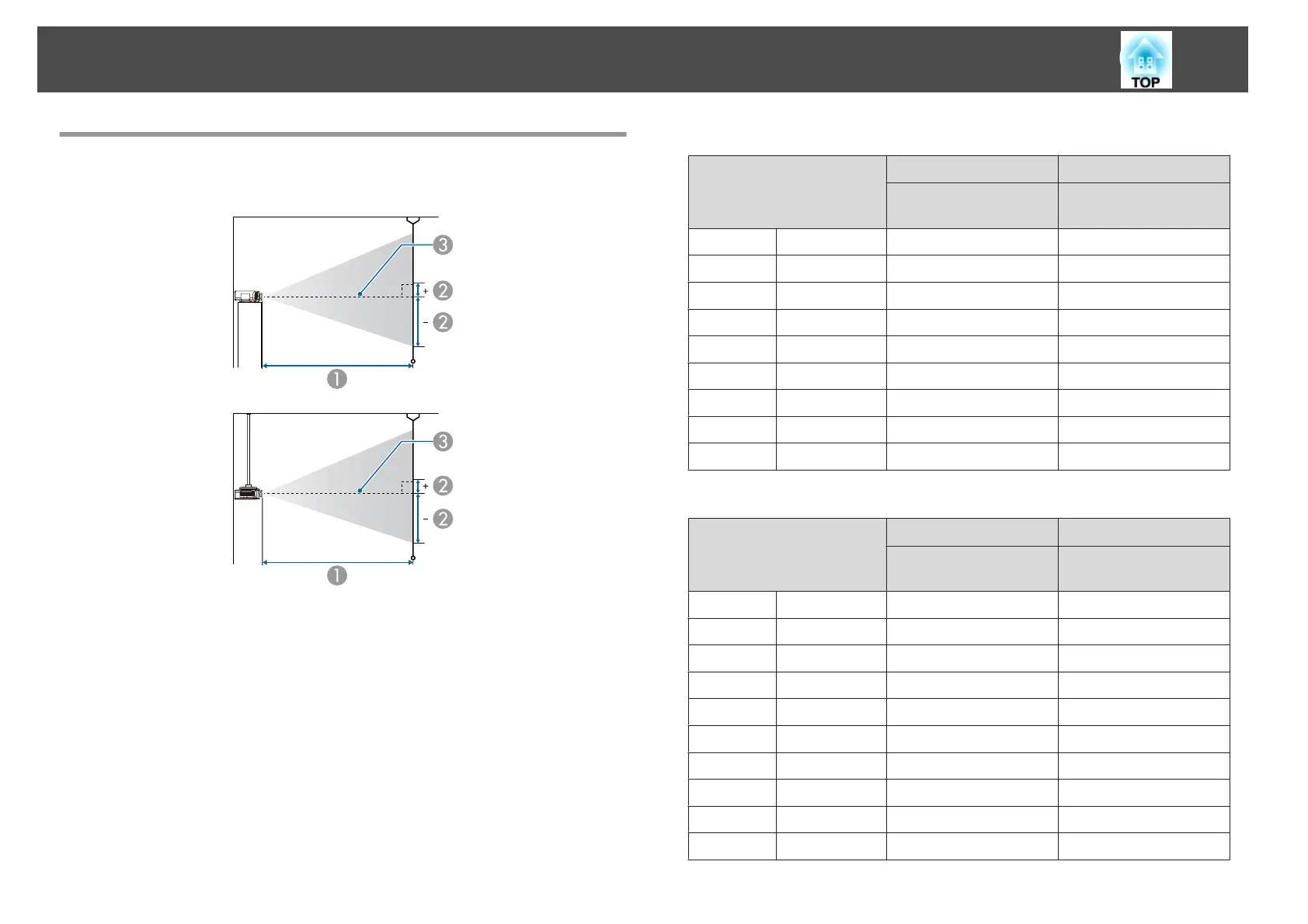

Projection Distance (For EB-G7805/EB-G7800/EB-
G7100)
A
Projection distance
B
is the distance from the center of the lens to the base of the screen. This
changes depending on the setting for vertical lens shift.
C
Center of lens
ELPLM08
This section shows the projection distances for models equipped with
standard lenses.
Unit: cm
4:3 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Top to Bottom
50" 102x76 147 - 239 -82 - +6
60" 122x91 178 - 288 -98 - +7
80" 163x122 239 - 385 -131 - +9
100" 203x152 299 - 482 -164 - +12
120" 244x183 360 - 580 -197 - +14
150" 305x229 452 - 726 -246 - +17
200" 406x305 604 - 969 -328 - +23
250" 508x381 756 - 1213 -410 - +29
300" 610x457 908 - 1456 -492 - +35
Unit: cm
16:9 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Vertical Lens Shift
Top to Bottom
46" 102x57 148 - 240 -73 - +15
50" 111x62 161 - 261 -79 - +17
60" 133x75 194 - 314 -95 - +20
80" 177x100 260 - 420 -126 - +27
100" 221x125 327 - 526 -158 - +33
120" 266x149 393 - 632 -189 - +40
150" 332x187 493 - 791 -237 - +50
200" 443x249 658 - 1057 -316 - +67
250" 553x311 824 - 1322 -395 - +83
275" 609x342 907 - 1454 -434 - +92
Screen Size and Projection Distance
228
