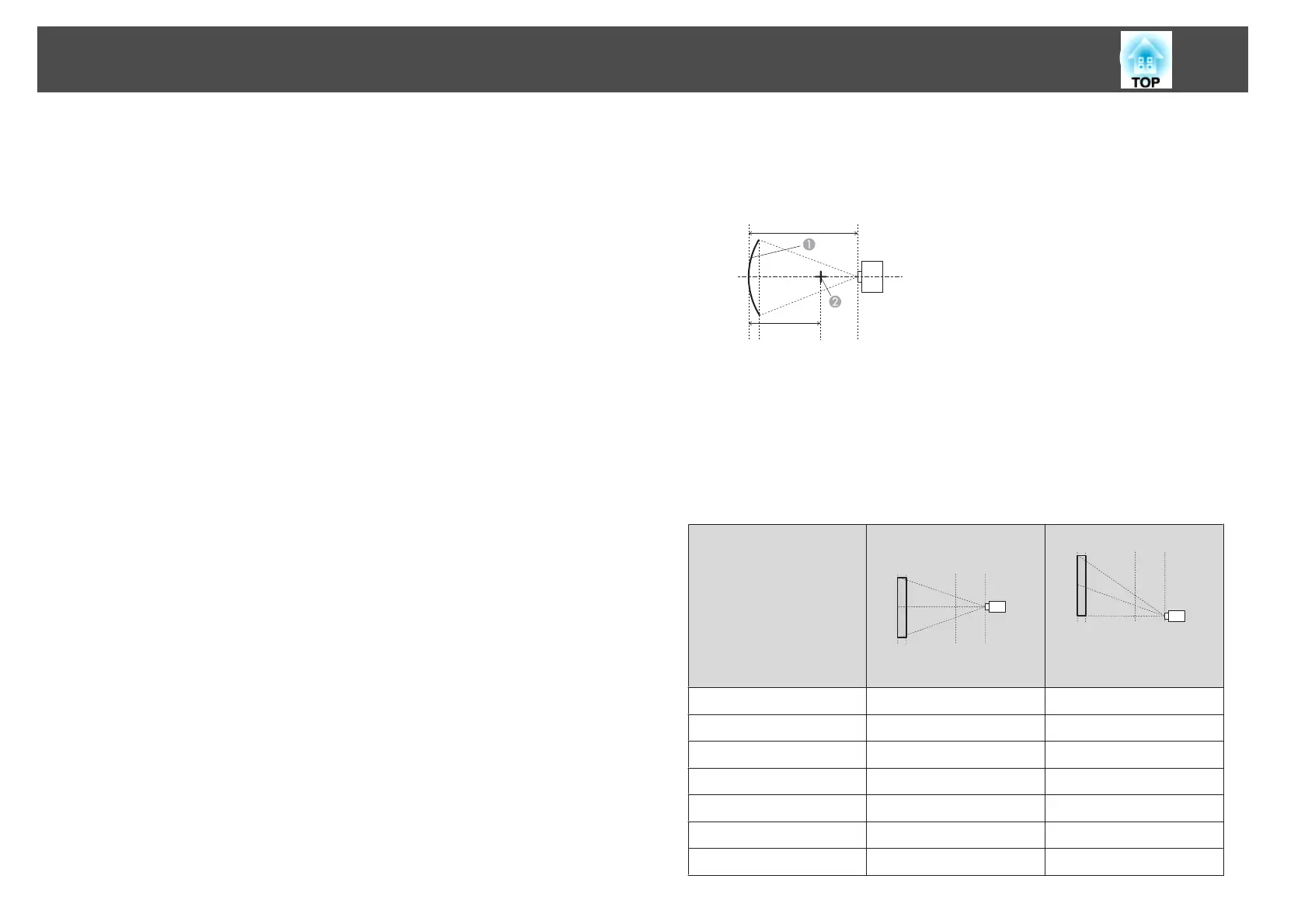

Correction range
The correction ranges are indicated in the following tables. The lens for
projectors with built-in lens is ELPLM08.
EB-G7905U/EB-G7900U/EB-G7500U/EB-G7400U/EB-G7200W/EB-
G7000W
Horizontally curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
The minimum values of R/L in the figure above are indicated in the table
below.
(Approximate value when projecting at maximum zoom. ELPLR04 does not
support lens shift.)
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 0.29 0.30
ELPLX01 - 2.74
ELPLU03 0.45 0.56
ELPLU04/ELPLU02 0.39 0.40
ELPLR04 0.37 -
ELPLW05 0.35 0.37
ELPLW06/ELPLW04 0.26 0.27
Adjusting Projected Images
66
