Corner Wall
s "Corner Wall" p.69
For projectors with a built-in lens, the lens varies depending on the model.
EB-L1505U/EB-L1500U: ELPLM09
EB-L1405U/EB-L1300U/EB-L1200U/EB-L1105U/EB-L1100U/EB-L1000U:
ELPLM08

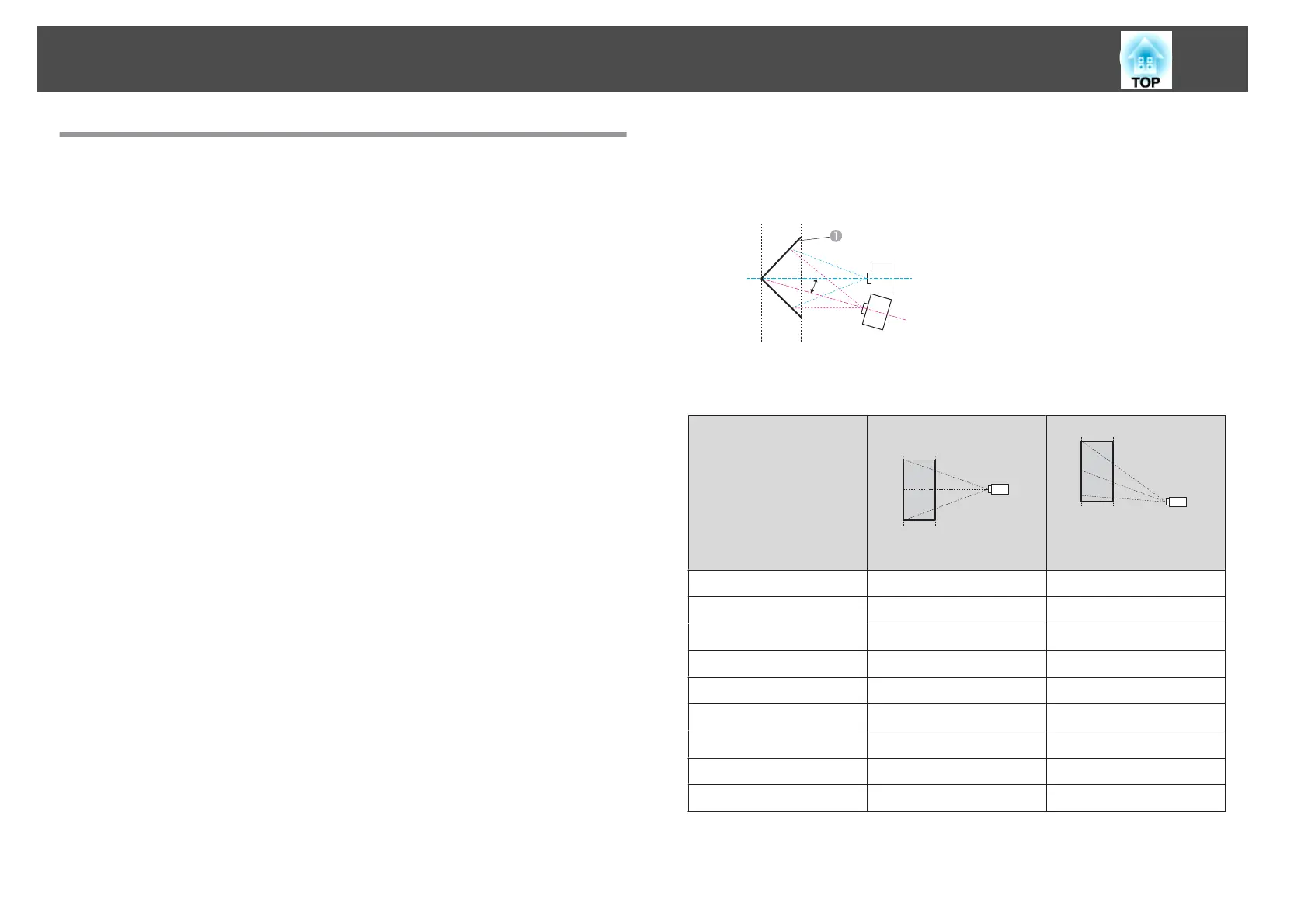

The α in the figure is the maximum angle in which the projector can move.
See the table below for detailed values. (Approximate value when projecting
at maximum zoom. ELPLR04 does not support lens shift.)
EB-L1505U/EB-L1500U
Concave horizontal corner correction (correction to bilateral symmetry by
using corners as the center line)
Ș
A
Screen
α Angle of possible projector
motion
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM09/ELPLS04 31Ëš 25Ëš
ELPLU03 24Ëš 18Ëš
ELPLU04/ELPLU02 29Ëš 11Ëš
ELPLR04 30Ëš -
ELPLW05 30Ëš 24Ëš
ELPLW06/ELPLW04 32Ëš 21Ëš
ELPLM10/ELPLM06 30Ëš 30Ëš
ELPLM11/ELPLM07 29Ëš 29Ëš
ELPLL08/ELPLL07 29Ëš 28Ëš
Adjustment Range for Projected Images
235
