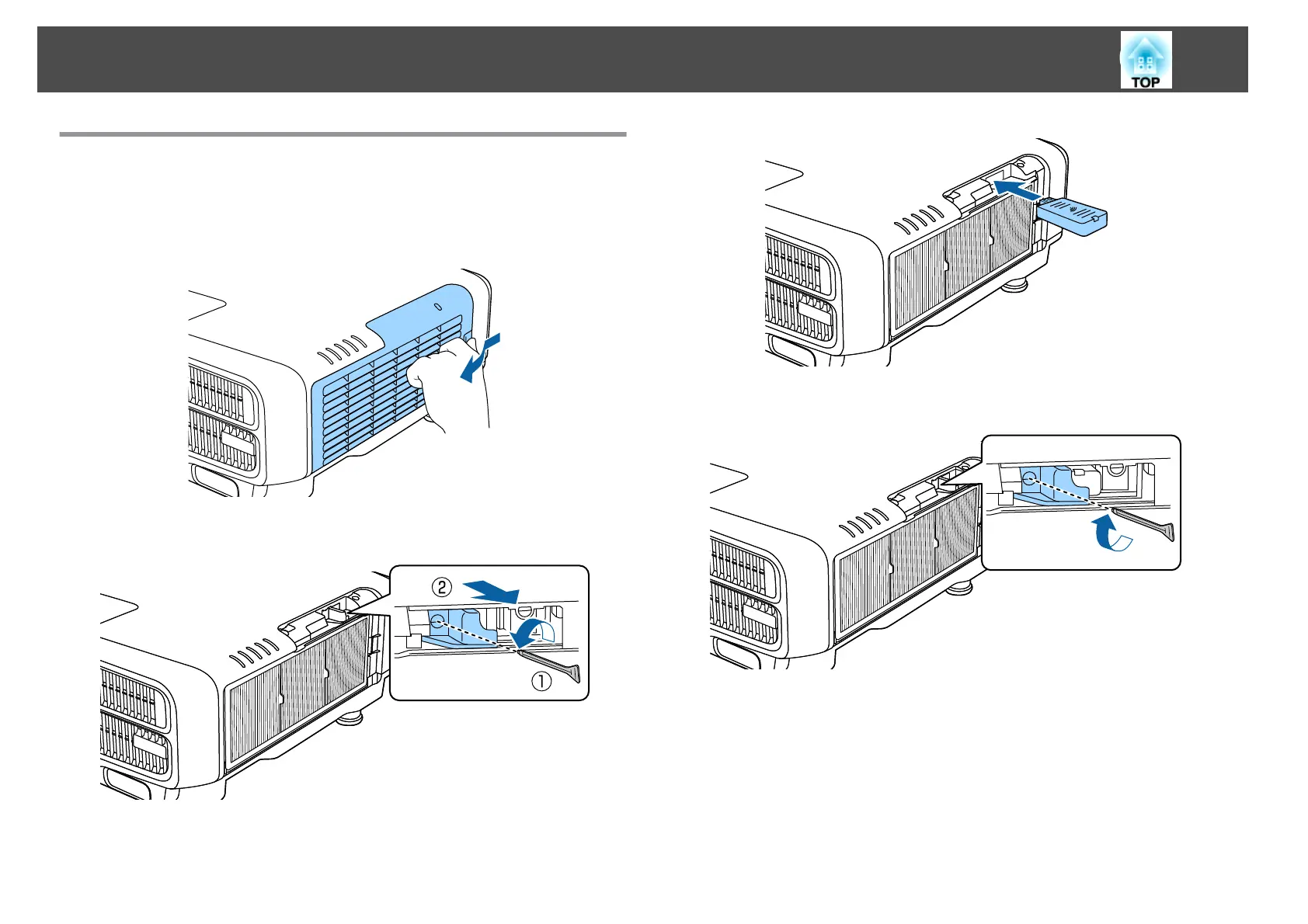

Installing
the
Wireless
LAN
Unit
a
Remove
the
air
filter
cover.
Grip
the
air
filter
cover
tab
between
your
fingers,
and
pull
up
and
r
e
m
o
v
e t
h
e c
o
v
e
r w
h
i
l
e p
r
e
s
s
i
n
g t
h
e t
a
b
.
b
R
e
m
o
v
e t
h
e s
t
o
p
p
e
r f
o
r t
h
e W
i
r
e
l
e
s
s L
A
N u
n
i
t
.
c
Install
the
Wireless
LAN
unit.
d
Secure
the
st
opper
with
a
screw.
e
Attach
the
air
filter
cover.
Connecting Equipment
52
51
53
Table of Contents
Notations Used in this Guide
2
Table of Contents
9
Introduction
14
Part Names and Functions
15
Front/Top
15
Rear
16
Interface
17
Base
18
Control Panel
19
Remote Control
20
Handy Remote Control Operations
23
Replacing the Remote Control Batteries
23
Remote Control Operating Range
24
Connecting a Cable to the Remote Control
25
Preparing the Projector
26
Installing the Projector
27
Removing and Attaching the Projector Lens Unit
27
Attaching
27
Lens Calibration
28
Removing
29
Installation Settings
29
Changing the Direction of the Image (Projection Mode)
29
Screen Settings
30
Adjusting the Position of the Image on the Projected Screen
31
Displaying a Test Pattern
31
Adjusting the Position of the Projected Image (Lens Shift)
33
Eb-L1505U/Eb-L1500U
33
Eb-L1405U/Eb-L1300U/Eb-L1200U/Eb-L1105U/Eb-L1100U/Eb-L1000U
34
Adjusting the Image Size
35
Correcting the Focus
36
Correcting Distortion (Image Warping)
37
Registering and Loading Lens Adjustment Values
38
Adjusting the Height of the Projected Image (for Normal Installment)
39
Adjusting the Horizontal Tilt (for Normal Installment)
40
ID Settings
40
Set the Projector ID
40
Checking the Projector ID
41
Setting the Remote Control ID
41
Setting the Time
41
Other Settings
43
Settings Related to Basic Operations
43
Settings Related to Display
43
Connecting Equipment
45
Connecting a Computer
45
Connecting Image Sources
47
Connecting External Equipment
49
Connecting a LAN Cable
50
Connecting an Hdbaset Transmitter
51
Installing the Wireless LAN Unit
52
Using the Quick Wireless Connection USB Key
53
Attaching the Cable Cover
54
Attaching
54
Basic Usage
55
Turning on the Projector
56
Home Screen
56
Turning off the Projector
58
Projecting Images
59
Automatically Detecting Input Signals and Changing the Projected Image (Source Search)
59
Switching to the Target Image by Remote Control
60
Adjusting the Volume
60
Adjusting Projected Images
62
Correcting Distortion in the Projected Image
62
H/V-Keystone
63
Quick Corner
64
Curved Surface
65
Corner Wall
69
Point Correction
72
Selecting the Projection Quality (Selecting Color Mode)
74
Setting the Brightness
74
Guide to Estimated Remains
76
Relationship between Brightness Level and Usage Time
76
Setting the Amount of Light of the Projected Image
77
Changing the Aspect Ratio of the Projected Image
78
Changing Methods
78
Adjusting the Image
80
Hue, Saturation, and Brightness Adjustment
80
Gamma Adjustment
81
Frame Interpolation
84
Adjusting Image Resolution (Image Enhancement)
84
4K Enhancement
85
Image Preset Mode
86
Noise Reduction
86
MPEG Noise Reduction
86
Super-Resolution
87
Detail Enhancement
87
Projecting 3D Images
88
Useful Functions
89
Multi-Projection Function
90
Adjustment Procedure
90
Adjusting Automatically Online
90
Adjusting Manually Offline
91
Tiling
91
Performing Tiling Automatically
91
Performing Tiling Manually
93
Edge Blending
93
Black Level
95
Screen Matching
99
Operating Conditions for Auto Adjustment Functions
99
Automatically Correct the Brightness and Tint for Multiple Projectors
100
Color Matching
101
Displaying a Scaled Image
102
Projection Functions
105
Projecting Two Images Simultaneously (Split Screen)
105
Input Sources for Split Screen Projection
105
Operating Procedures
106
Restrictions During Split Screen Projection
108
Hiding the Image and Sound Temporarily (A/V Mute)
108
Freezing the Image (Freeze)
109
Enlarging Part of the Image (E-Zoom)
109
Saving a User's Logo
110
Memory Function
112
Saving/Loading/Erasing/Resetting the Memory
112
Scheduling Function
114
Saving an Event
114
Setting an Event
114
Checking an Event
115
Editing an Event
116
Security Functions
118
Managing Users (Password Protection)
118
Kinds of Password Protection
118
Setting Password Protection
118
Entering the Password
119
Restricting Operation
120
Control Panel Lock
120
Lens Lock
121
Remote Control Button Lock
121
Anti-Theft Lock
122
Installing the Wire Lock
122
Configuration Menu
123
Using the Configuration Menu
124
List of Functions
125
Configuration Menu Table
125
Network Menu
126
Image Menu
127
Signal Menu
129
Settings Menu
131
Extended Menu
133
Network Menu
137
Notes on Operating the Network Menu
138
Soft Keyboard Operations
139
Basic Menu
139
Wireless LAN Menu
140
Wired LAN Menu
142
Notifications Menu
143
Others Menu
144
Reset Menu
144
Info Menu (Display Only)
145
Reset Menu
146
Batch Setup
147
Setup Using a USB Flash Drive
147
Saving Settings to the USB Flash Drive
147
Reflecting Saved Settings to Other Projectors
149
Setup by Connecting the Computer and Projector with a USB Cable
151
Saving Settings to a Computer
151
Reflecting Saved Settings to Other Projectors
152
When Setup Fails
153
Troubleshooting
154
Using the Help
155
Reading the Indicators
157
Reading the Status Display
163
Explanations of the Display Content
164
Problem Solving
170
Problems Relating to Images
171
No Images Appear
171
Moving Images Are Not Displayed
171
Projection Stops Automatically
172
"Not Supported." Is Displayed
172
"No Signal." Is Displayed
172
Images Are Fuzzy, out of Focus, or Distorted
173
Interference or Distortion Appear in Images
173
The Image Is Truncated (Large) or Small, the Aspect Is Not Suitable, or the Image Has Been Reversed
174
Image Colors Are Not Right
175
Images Appear Dark
175
Automatic Adjustments Are Not Performed Correctly
176
Problems When Projection Starts
177
The Projector Does Not Turn on
177
Other Problems
178
No Sound Can be Heard or the Sound Is Faint
178
The Remote Control Does Not Work
178
Nothing Appears on the External Monitor
179
I Want to Change the Language for Messages and Menus
180
Email Is Not Received Even if a Problem Occurs in the Projector
180
"The Battery that Saves Your Clock Settings Is Running Low." Is Displayed
180
About Event ID
181
Cleaning
183
Cleaning the Projector's Surface
183
Cleaning the Lens
183
Cleaning the Air Filter
183
Replacing Consumables
186
Replacing the Air Filter
186
Air Filter Replacement Period
186
How to Replace the Air Filter
186
Image Maintenance
188
Color Calibration
188
Panel Alignment
189
Color Uniformity
191
Appendix
193
Monitoring and Controlling
194
About Easymp Monitor
194
About Message Broadcasting
194
Changing Settings Using a Web Browser (Epson Web Control)
194
Displaying the Epson Web Control Screen
194
Basic Control Screen
195
OSD Control Pad Screen
196
Lens Control Screen
196
Status Information Screen
198
Using the Mail Notification Function to Report Problems
199
Reading Error Notification Mail
199
Management Using SNMP
200
ESC/VP21 Commands
200
Command List
200
Cable Layouts
201
About Pjlink
201
About Crestron Roomview
202
Operating a Projector from Your Computer
202
About Art-Net (EB-L1505U/EB-L1500U/EB-L1405U Only)
206
Channel Definitions
206
Optional Accessories and Consumables
211
Optional Accessories
211
Consumables
211
Screen Size and Projection Distance
212
Projection Distance for EB-L1505U/EB-L1500U
212
Elplm09/Elpls04
212
Elplu03
213
Elplu04/Elplu02
213
Elplw05
214
Elplw06/Elplw04
215
Elplm10/Elplm06
216
Elplm11/Elplm07
217
Elpll08/Elpll07
217
Elplr04
218
Projection Distances for EB-L1405U/EB-L1300U/EB-L1200U/EB-L1105U/EB-L1100U/ EB-L1000U
219
Elplm08
219
Elplx01
220
Elplu03
220
Elplu04/Elplu02
221
Elplw05
222
Elplw06/Elplw04
223
Elplm09/Elpls04
224
Elplm10/Elplm06
225
Elplm11/Elplm07
225
Elpll08/Elpll07
226
Elplr04
227
Polarizer (ELPPL01) Installation Distance
228
Eb-L1505U/Eb-L1500U
228
Eb-L1405U/Eb-L1300U/Eb-L1200U/Eb-L1105U/Eb-L1100U/Eb-L1000U
228
Adjustment Range for Projected Images
230
H/V-Keystone
230
Eb-L1505U/Eb-L1500U
230
Eb-L1405U/Eb-L1300U/Eb-L1200U/Eb-L1105U/Eb-L1100U/Eb-L1000U
230
Curved Surface
230
Corner Wall
235
Supported Monitor Displays
240
Supported Resolutions
240
Computer Signals (Analog RGB)
240
Component Video
240
Input Signals from the DVI-D Port, HDMI Port, and Hdbaset Port
240
Input Signals from SDI Input Port
241
Specifications
242
Projector General Specifications
242
Appearance
247
Glossary
248
General Notes
250
About Notations
250
Trademarks and Copyrights
251
List of Safety Symbols Compliant with IEC60950-1 A2
252
Index
254
Other manuals for Epson EB-L1105U
Service Update Information
39 pages
Quick Reference
24 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Epson EB-L1105U and is the answer not in the manual?
Ask a question
Epson EB-L1105U Specifications
General
Brand
Epson
Model
EB-L1105U
Category
Projector
Language
English
Related product manuals
Epson EB-L1505U
254 pages
Epson EB-L1755U
287 pages
Epson EB-L1300U
254 pages
Epson EB-L1500U
254 pages
Epson EB-L1405U
254 pages
Epson EB-L1075U
291 pages
Epson EB-L1750U
296 pages
Epson EB-L1505UH
296 pages
Epson EB-L1505UHNL
296 pages
Epson EB-L730U
267 pages
Epson EB-L630U
267 pages
Epson EB-L260F
306 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
