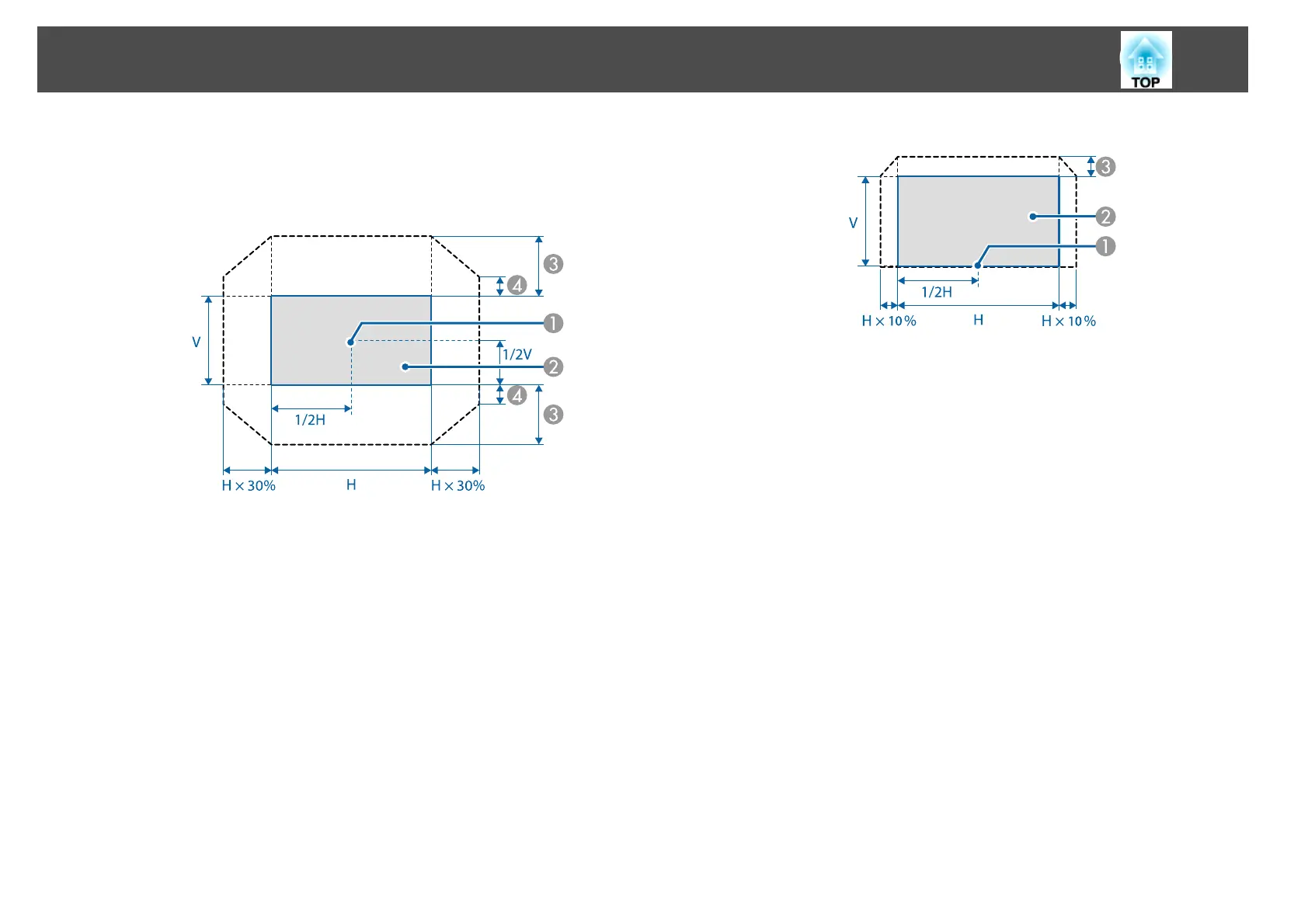

When using the ELPLU03/ELPLU04/ELPLW05/ELPLW06/ELPLM08/
ELPLM09/ELPLM10/ELPLM11/ELPLL08
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 67%
*
D
When the horizontal direction is at the maximum value: V x 19%
* When performing screen matching or color calibration: V (top) x 58%,
V (bottom) x 43% (ELPLU03)
When using the ELPLX01
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 17%
*
* When the horizontal direction is at the maximum value, the image
cannot be moved upward.
