Projector Connections
31
e
Connect the other end to the Audio port that corresponds to the
Computer port you are using.

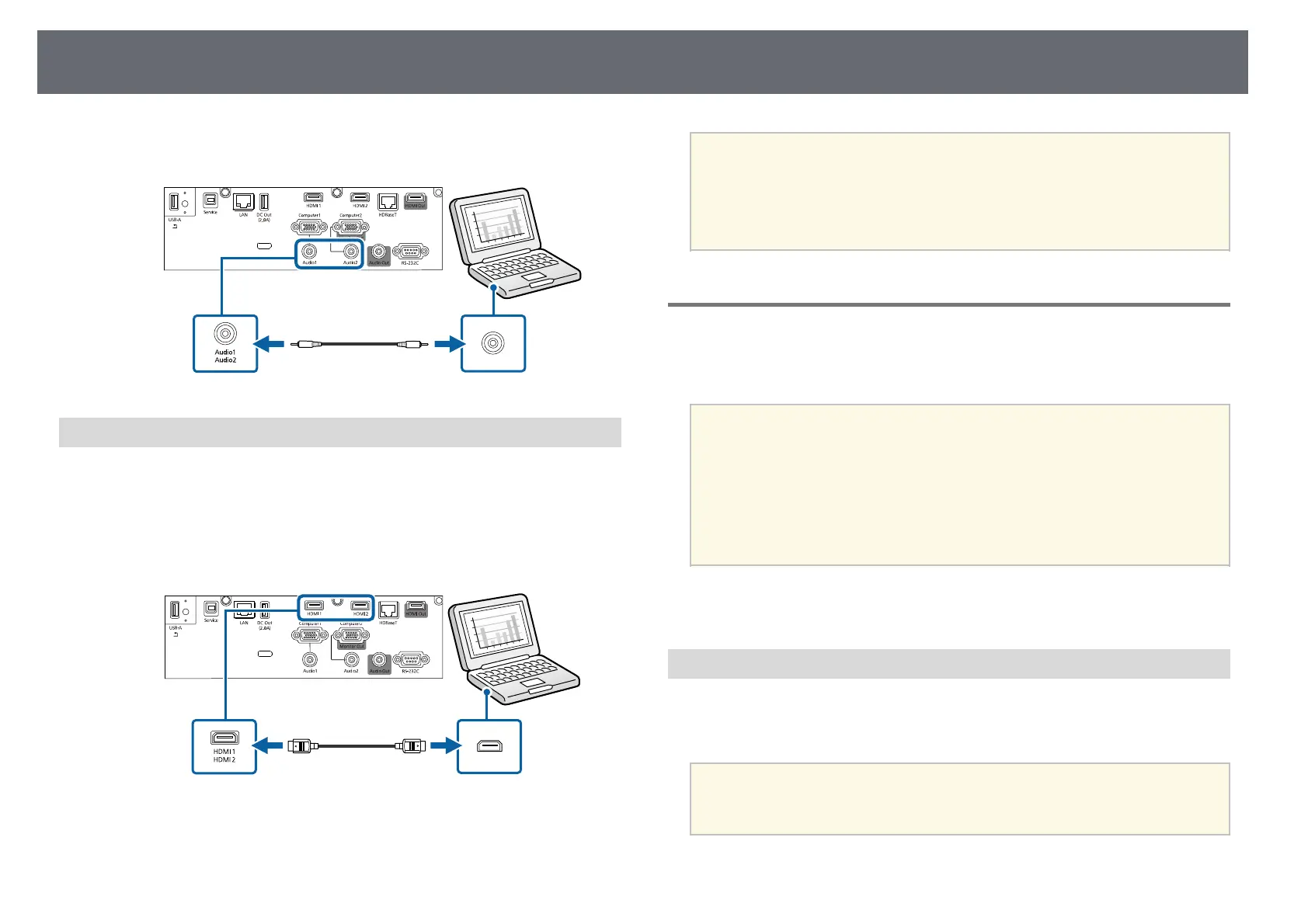

Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using
an HDMI cable and send the computer's audio with the projected image.
a
Connect the HDMI cable to your computer's HDMI output port.
b
Connect the other end to the projector's HDMI port.
a
If you have problems hearing audio through the HDMI connection,
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
computer's audio out port. Select the audio input port you connected
to as the HDMI Audio Output setting in the projector's Signal I/O
menu.
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
a
• If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
gg Related Links
• "Connecting to an HDMI Video Source" p.31
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.

Epson EB-L520U Specifications

General

Matrix size	0.67 \
Number of colors	1.07 billion colors
Native aspect ratio	16:10
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	50 - 500 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	3640 ANSI lumens
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Throw ratio	1.35 - 2.2:1
Zoom capability	Yes
Focal length range	20 - 31.8 mm
Aperture range (F-F)	1.5 - 1.7
3D	No
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Analog signal format system	Not supported
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
USB 2.0 Type-B ports quantity	1
Wi-Fi standards	802.11a, Wi-Fi 4 (802.11n)
Noise level	31 dB
Country of origin	Philippines
Noise level (economic mode)	23 dB
RMS rated power	10 W
Placement	Ceiling, Desktop, Floor, Wall
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	293 W
Power consumption (economy mode)	223 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, HDMI
Bundled software	EasyMP Multi PC Projection
USB display function	3 in 1: Image / Mouse / Sound
Sustainability certificates	TCO
Software support	via: AMX, Crestron (Network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	122 mm
Width	440 mm
Height	304 mm
Weight	7700 g
Package depth	530 mm
Package width	540 mm
Package height	210 mm
Package weight	10450 g
