Epson EB-L520U User Manual

Turning On the Projector
43
gg Related Links
• "Home Screen" p.43
• "Projector Feature Settings - Operation Menu" p.189

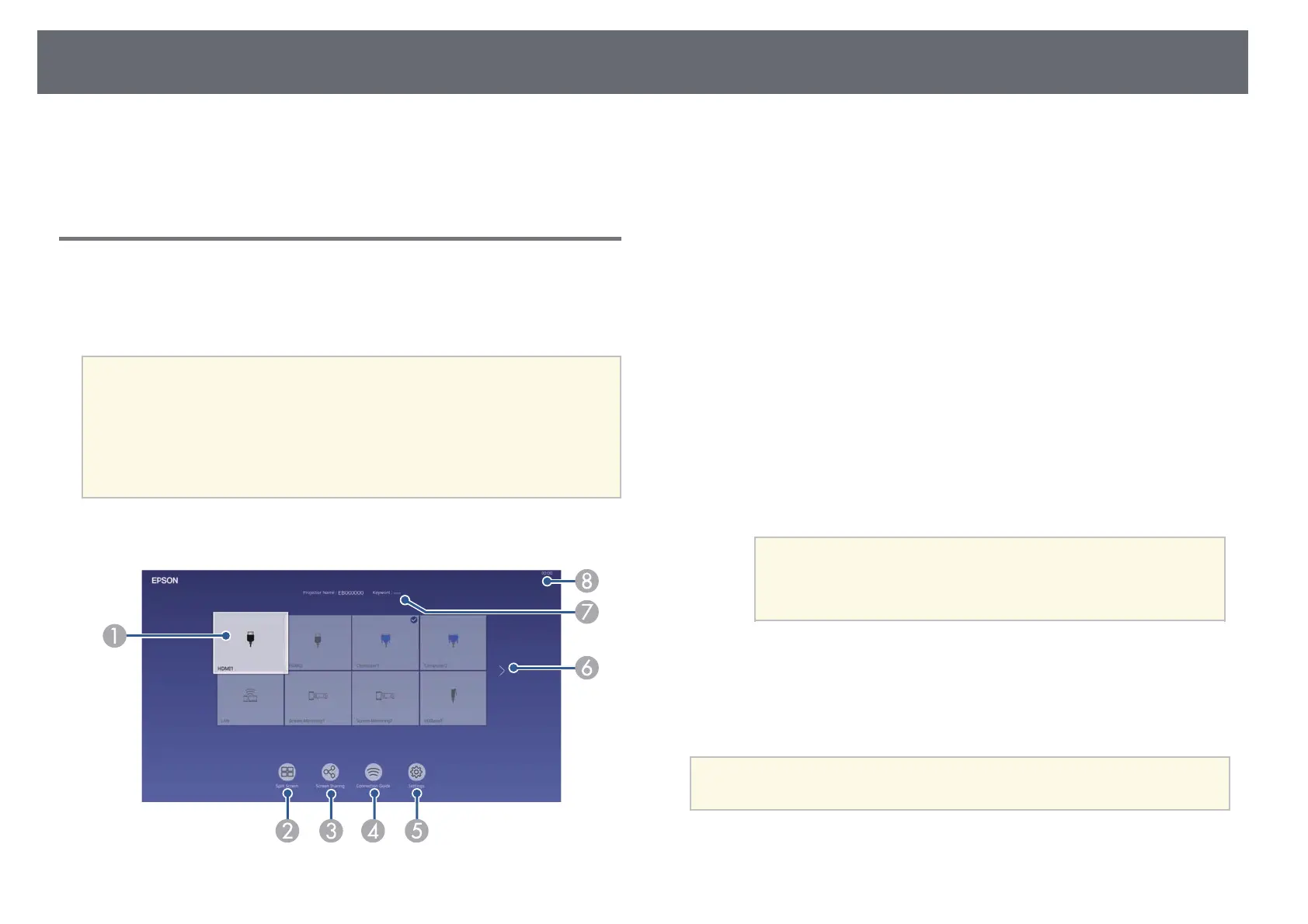

Home Screen
The Home screen feature allows you to easily select an image source and
access useful functions. You can display the Home screen by pressing the
[Home] button on the remote control.
a
• The Home screen is also displayed when you turn on the projector
and no signal is being input.
• When Connection Guide Display is set to On in the projector's
Network menu, the connection guide for the wireless transmitter
(Epson Wireless Presentation) is displayed instead of the Home
screen when no signal is being input.
s Network > Transmitter Settings > Connection Guide Display
Press the arrow buttons on the control panel or remote control to select a
menu item, and then press [Enter].
A
Selects the source you want to project.
A check mark appears on the upper right of the current input source.
You can check a preview of the current input image for most sources as a
thumbnail (other than the USB input source in Content Playback mode).
B
Projects images from two or four different image sources simultaneously in a
grid format.
C
Shares your projected screen image with other projectors connected to the same
network.
D
Displays the connection guide. You can select the wireless connection methods
according to the devices you are using, such as smartphones or computers.
E
Lets you select the following common projector settings (settings may vary
depending on other selected settings):
• Color Mode
• Brightness Level
• Volume
• E-Zoom (EB‑L720U/EB‑L520U)
• Geometry Correction (H/V-Keystone and Quick Corner are available.)
• Aspect
a
The Geometry Correction setting is only displayed when
Fixed Installation is set to Off and Geometry
Correction is set to H/V-Keystone or Quick Corner in
the projector's Installation menu.
F
Moves to the previous or next page if there are more than nine available input
sources.
G
Displays the projector name and the projector keyword.
H
Displays the current time.
a
The Home screen disappears after 10 minutes of inactivity.
gg Related Links
• "Screen Sharing" p.152
• "Projecting Multiple Images Simultaneously" p.86

Epson EB-L520U Specifications

General

Matrix size	0.67 \
Number of colors	1.07 billion colors
Native aspect ratio	16:10
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	50 - 500 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	3640 ANSI lumens
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Throw ratio	1.35 - 2.2:1
Zoom capability	Yes
Focal length range	20 - 31.8 mm
Aperture range (F-F)	1.5 - 1.7
3D	No
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Analog signal format system	Not supported
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
USB 2.0 Type-B ports quantity	1
Wi-Fi standards	802.11a, Wi-Fi 4 (802.11n)
Noise level	31 dB
Country of origin	Philippines
Noise level (economic mode)	23 dB
RMS rated power	10 W
Placement	Ceiling, Desktop, Floor, Wall
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	293 W
Power consumption (economy mode)	223 W
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, HDMI
Bundled software	EasyMP Multi PC Projection
USB display function	3 in 1: Image / Mouse / Sound
Sustainability certificates	TCO
Software support	via: AMX, Crestron (Network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	14 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	122 mm
Width	440 mm
Height	304 mm
Weight	7700 g
Package depth	530 mm
Package width	540 mm
Package height	210 mm
Package weight	10450 g
