Epson EB-L520U User Manual

Projecting in Content Playback Mode
99
a
• To use the effect functions, make sure you perform Refresh Mode
regularly.
s Management > Refresh Mode
• This feature is not available when using the Edge Blending feature.
a

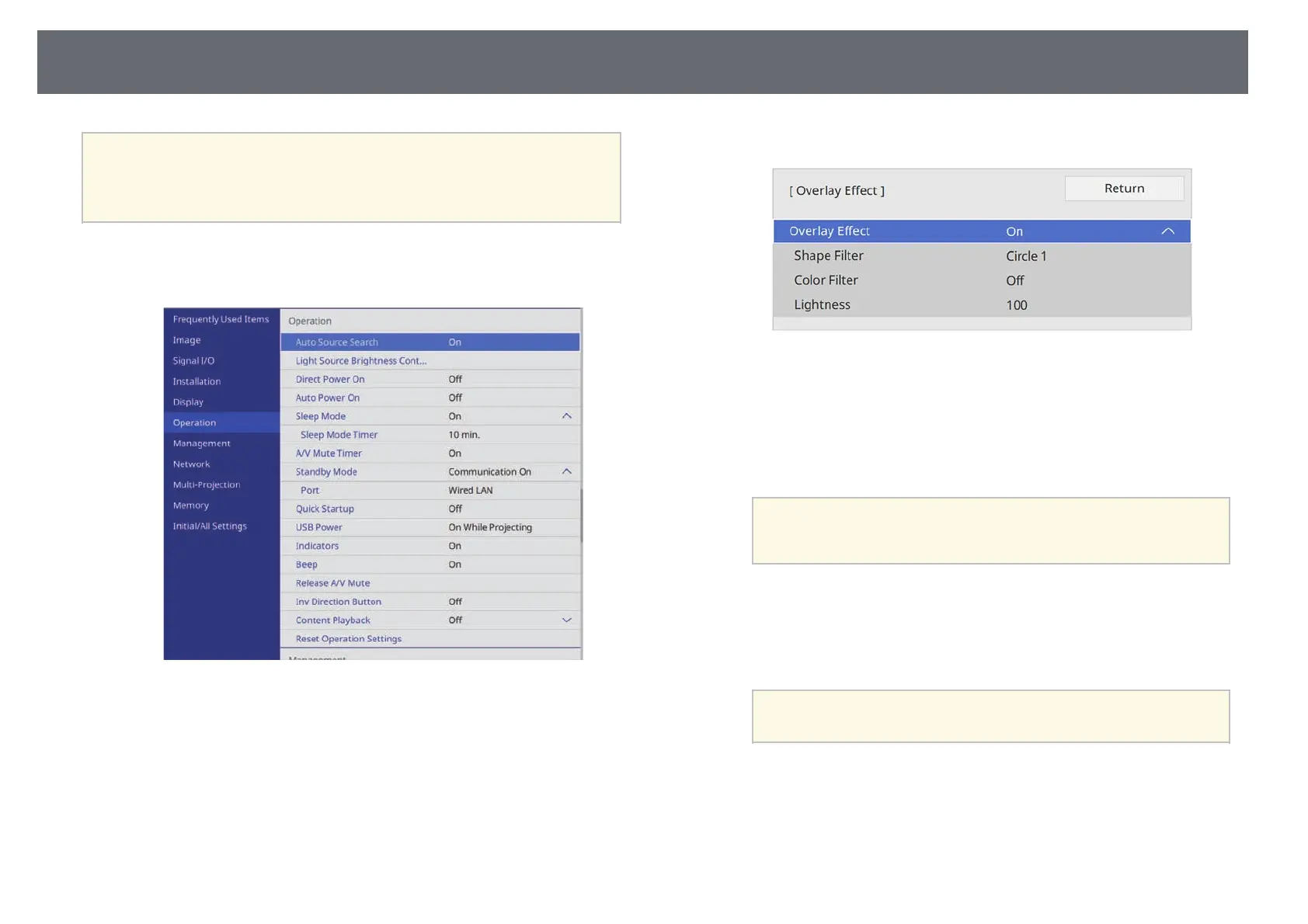

In Content Playback mode, press the [Menu] button, select the
Operation menu, and then press [Enter].
b
Select Overlay Effect and press [Enter].
c
Select On as the Overlay Effect setting and press [Enter].
d
Select Shape Filter and press [Enter].
e
Adjust each of the following options as necessary:
• Shape to select the shape effect you want from circles, rectangles, or
customized shapes.
a
You can add your images as customized shapes using the
Epson Projector Content Manager software. See the Epson
Projector Content Manager Operation Guide for details.
• Filter Effect to select whether to mask inside or outside of the
selected shape.
• Size to set the shape size.
• Position to set the shape position.
a
When you use a customized shape, you cannot change the Size
and Position settings.
f
Select Color Filter and press [Enter].
g
Adjust each of the following options as necessary:
• Color Filter to select the color.
