Epson EB-W06 User Manual

Wireless Network Projection from a Mobile Device (Screen Mirroring)
100
b

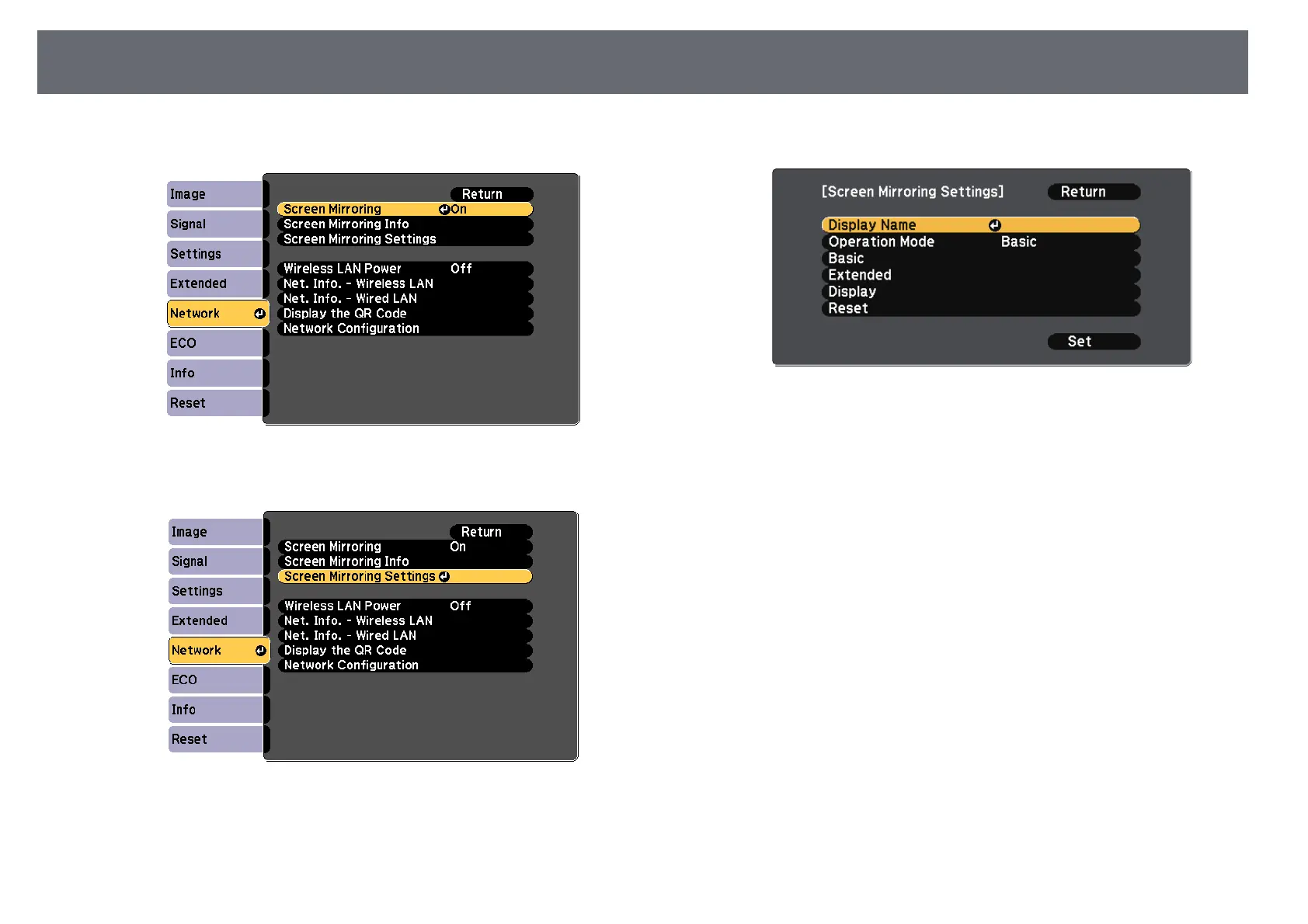

Select On as the Screen Mirroring setting.
c
Select Screen Mirroring Settings and press [Enter].
d
Set the Display Name setting as necessary.
e
Select the Operation Mode setting.
• Basic lets you connect with basic options.
• Extended lets you connect with advanced options.
f
Select the Basic setting as necessary.
• Wireless LAN Sys. lets you select the type of wireless LAN system
the projector is connecting to.
• Adjust Image Quality lets you adjust the screen mirroring
speed/quality. Select a small number to improve the quality and
select large number to increase the speed.
• Connection Mode lets you select the security type. Available only for
the Basic operation mode.
g
For the Extended operation mode, select the Extended setting.
• Meeting Mode lets you select the type of meeting. Select
Interruptions OK to connect to another mobile device during
Screen Mirroring projection or No Interruptions to exclusively
connect to one device.
• Channel lets you select the wireless channel used by Screen
Mirroring.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
