Epson EB-W06 User Manual

Projector Parts and Functions
18
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
The shape may vary depending on the model of your
projector.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.169
• "List of Functions" p.10
• "Resizing the Image with the Zoom Ring" p.54
• "Focusing the Image Using the Focus Ring" p.55
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.50

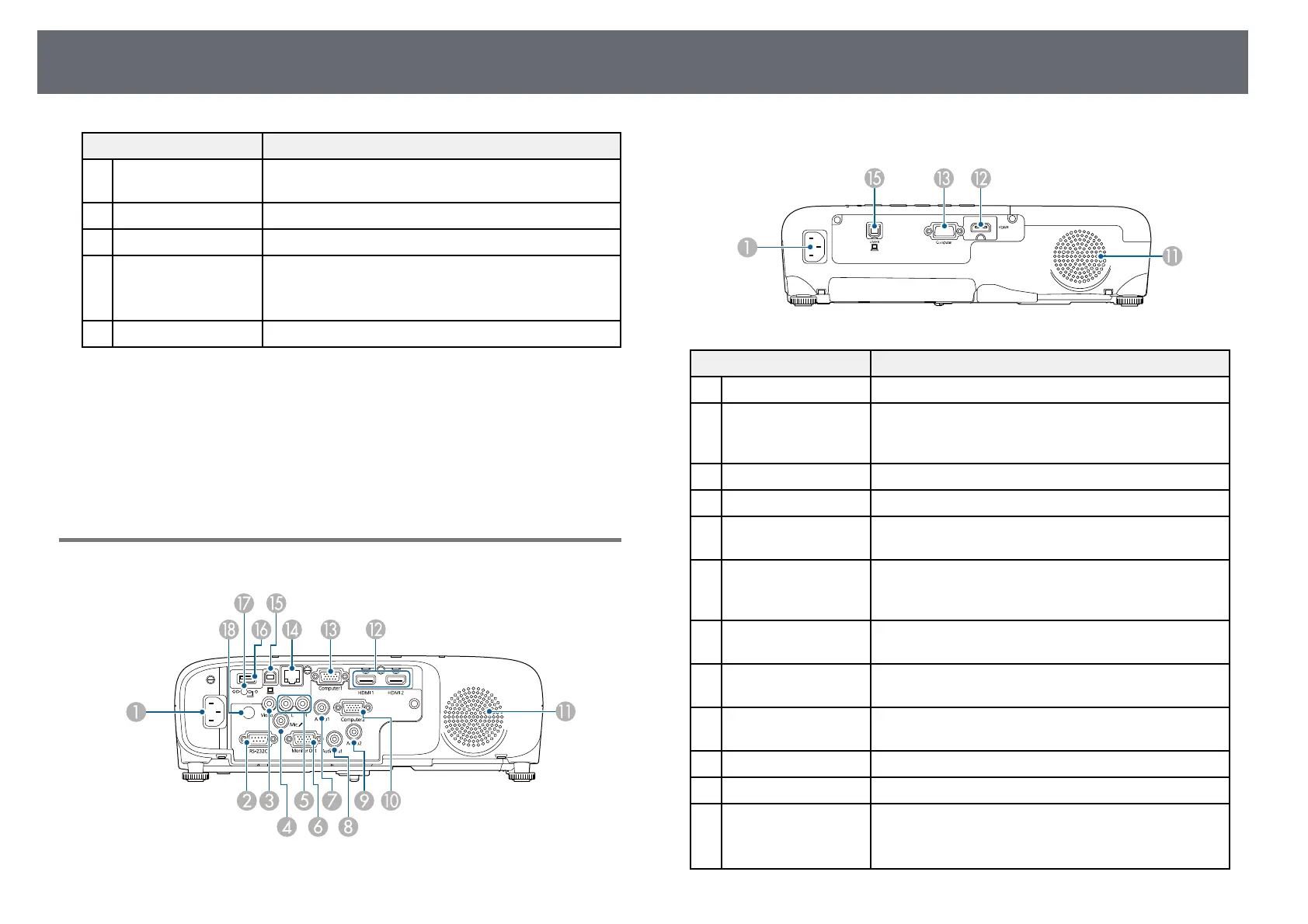

Projector Parts - Rear
EB‑‑E01/VS260
Name Function
A
Power inlet Connects the power cord to the projector.
B
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (You do not need to use this port
normally.)
C
Video port Inputs composite video signals from video sources.
D
Mic port Inputs audio from the microphone.
E
L-Audio-R ports Inputs audio from equipment connected to the Video
port.
F
Monitor Out port Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports.
G
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
H
Audio Out port Outputs audio from the current input source or Mic
port to an external speaker.
I
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
J
Computer2 port Inputs image signals from a computer.
K
Speaker Outputs audio.
L
HDMI1, HDMI2
ports
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
