Epson EB-W06 User Manual

Crestron Connected Support
120
b
Type the projector's IP address into the browser's address box and press
the computer's Enter key.

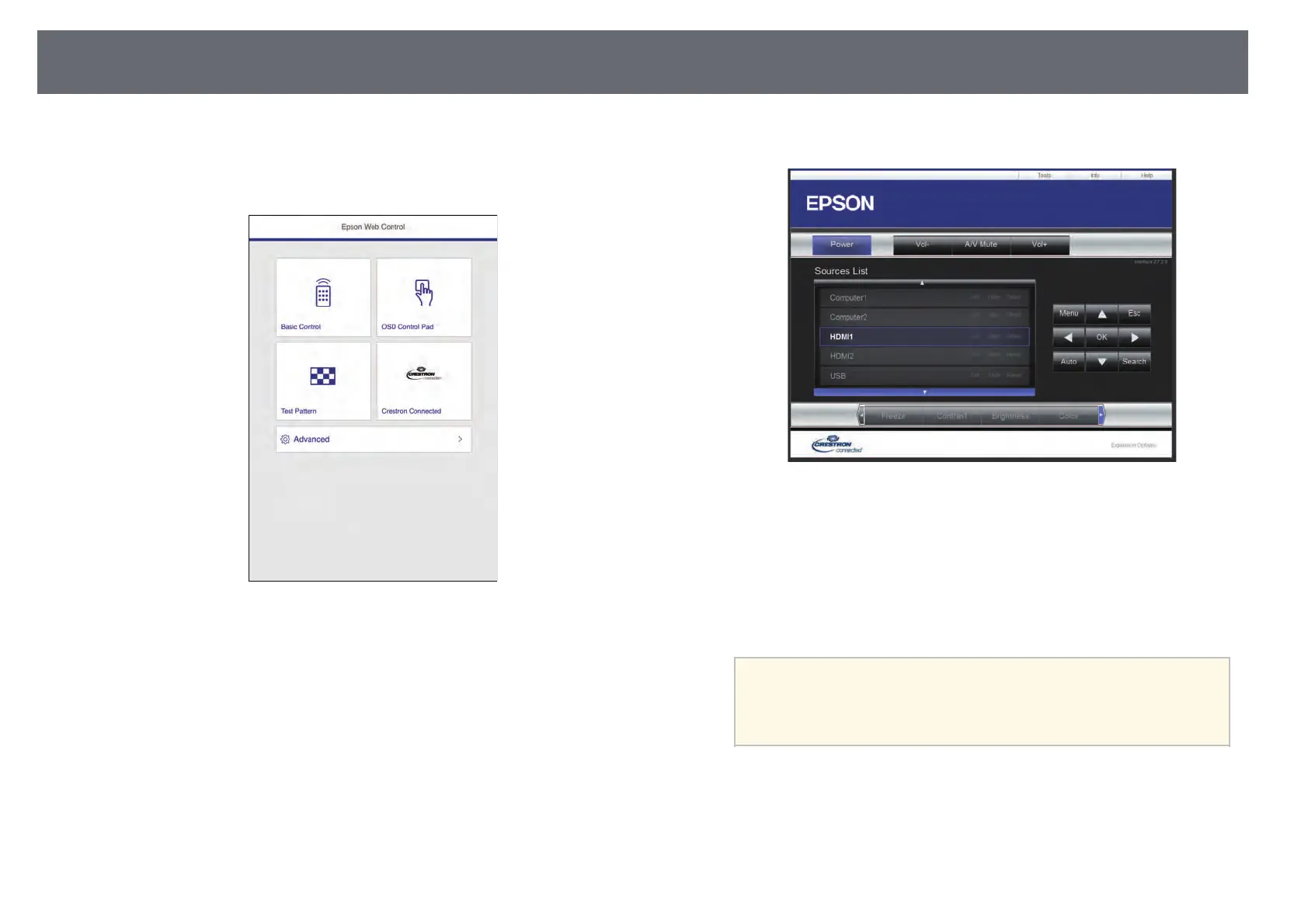

You see the Epson Web Control screen.
c
Select Crestron Connected.
You see this screen:
d
Select the input source that you want to control in the Sources List box.
You can scroll through available sources using the up and down arrows
in the box.
e
To control projection remotely, click the on-screen buttons that
correspond to the projector's remote control buttons. You can scroll
through button options at the bottom of the screen.
a
These on-screen buttons do not directly correspond to the
projector's remote control buttons:
• OK acts as the [Enter] button
• Menu displays the projector's menu
f
To view information about the projector, click the Info tab.
g
To change the projector, Crestron Control, and password settings, click
the Tools tab, select settings on the displayed screen, and then click
Send.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
