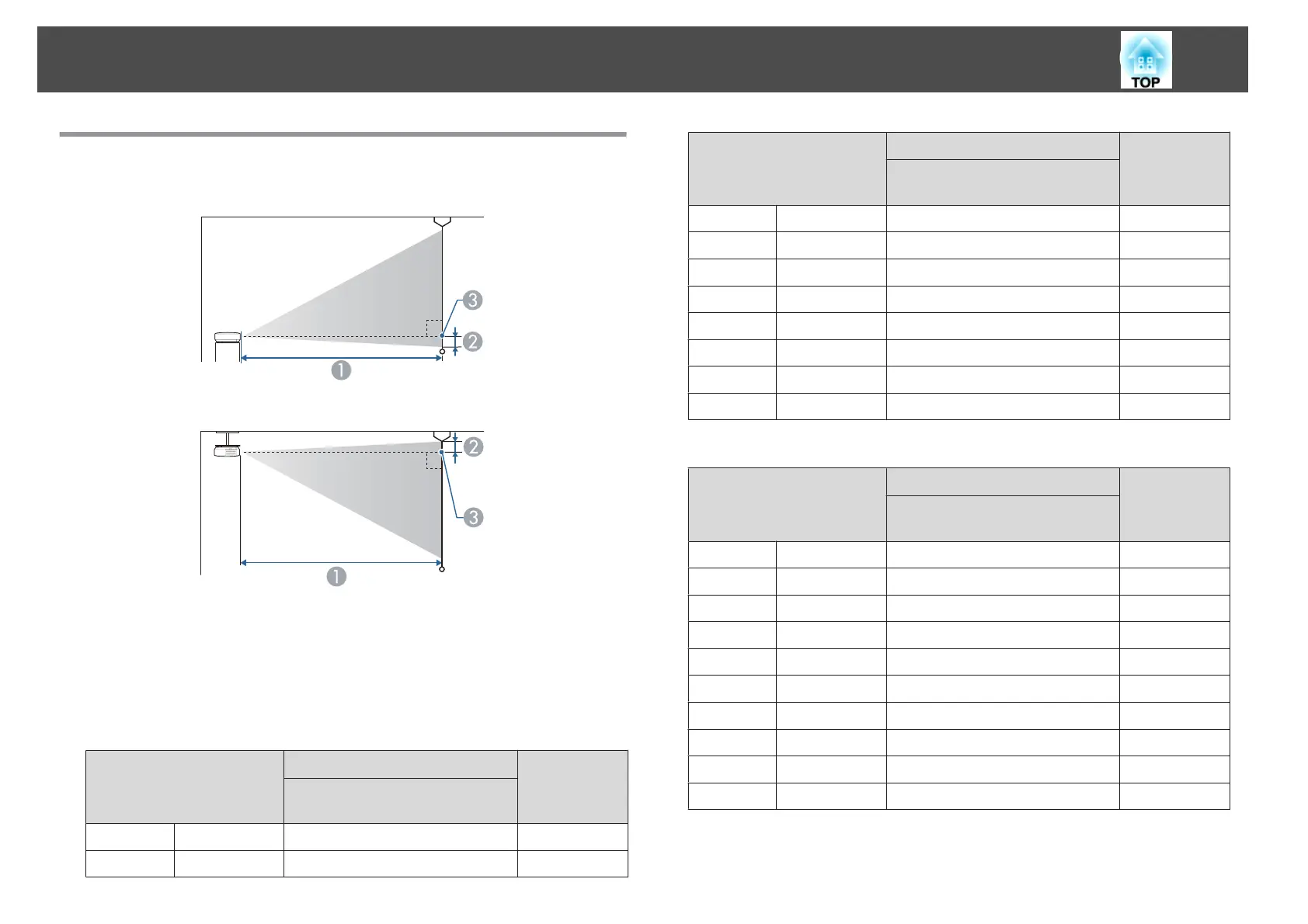

Epson EB-W22 User Manual

Projection Distance (For EB-X22/EB-X21/EB-X20/
EB-X17)
A
Projection distance
B
Distance from the center of the receiver's lens to the base of the screen
(or to the top of the screen, if suspended from a ceiling)
C
Center of lens
Unit: cm
4:3 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
30" 61x46 89 - 107 -5
40" 81x61 119 - 143 -7
4:3 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
50" 100x76 150 - 180 -8
60" 120x91 180 - 217 -10
80" 160x120 241 - 290 -14
100" 200x150 302 - 363 -17
150" 300x230 454 - 546 -25
200" 410x300 607 - 729 -34
250" 510x380 759 - 912 -42
300" 610x460 912 - 1095 -51
Unit: cm
16:9 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
30" 66x37 97 - 117 1
40" 89x50 130 - 156 1
50" 110x62 163 - 196 1
60" 130x75 196 - 236 1
80" 180x100 263 - 316 2
100" 220x120 329 - 396 2
150" 330x190 495 - 595 3
200" 440x250 661 - 794 5
250" 550x310 827 - 994 6
275" 610x340 910 - 1093 6
Screen Size and Projection Distance
129

Epson EB-W22 Specifications


color light output	3, 000 lumen - 2, 100 lumen (economy)
white light output	3, 000 lumen - 2, 100 lumen (economy)
resolution	WXGA, 1280 x 800, 16:10
contrast ratio	10, 000:1
lamp power	200 W

Optical

projection ratio	1.30 - 1.56:1
zoom factor	1.2
projection size	33 inches - 318 inches
projection distance wide/tele	1.68 m - 2.02 m (60 inch screen)
focal distance	16.9 mm - 20.28 mm

Connectivity

usb display function	3 in 1: Image / Mouse / Sound
interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
epson iprojection app	Ad-Hoc / Infrastructure

General

energy use	270 W, 223 W (economy), 0.47 W (standby)
dimensions single carton	363 x 397 x 160 mm
carton weight	4.11 Kg
