e
Using the [ ], [ ], [ ], and [ ] buttons on the remote control,
or the [
w], [v], [a], and [b] buttons (or the [Wide]/[Tele] buttons)
on the control panel, correct the position of the corner.
When you press the [
] button, the screen shown in step 4 is
displayed.

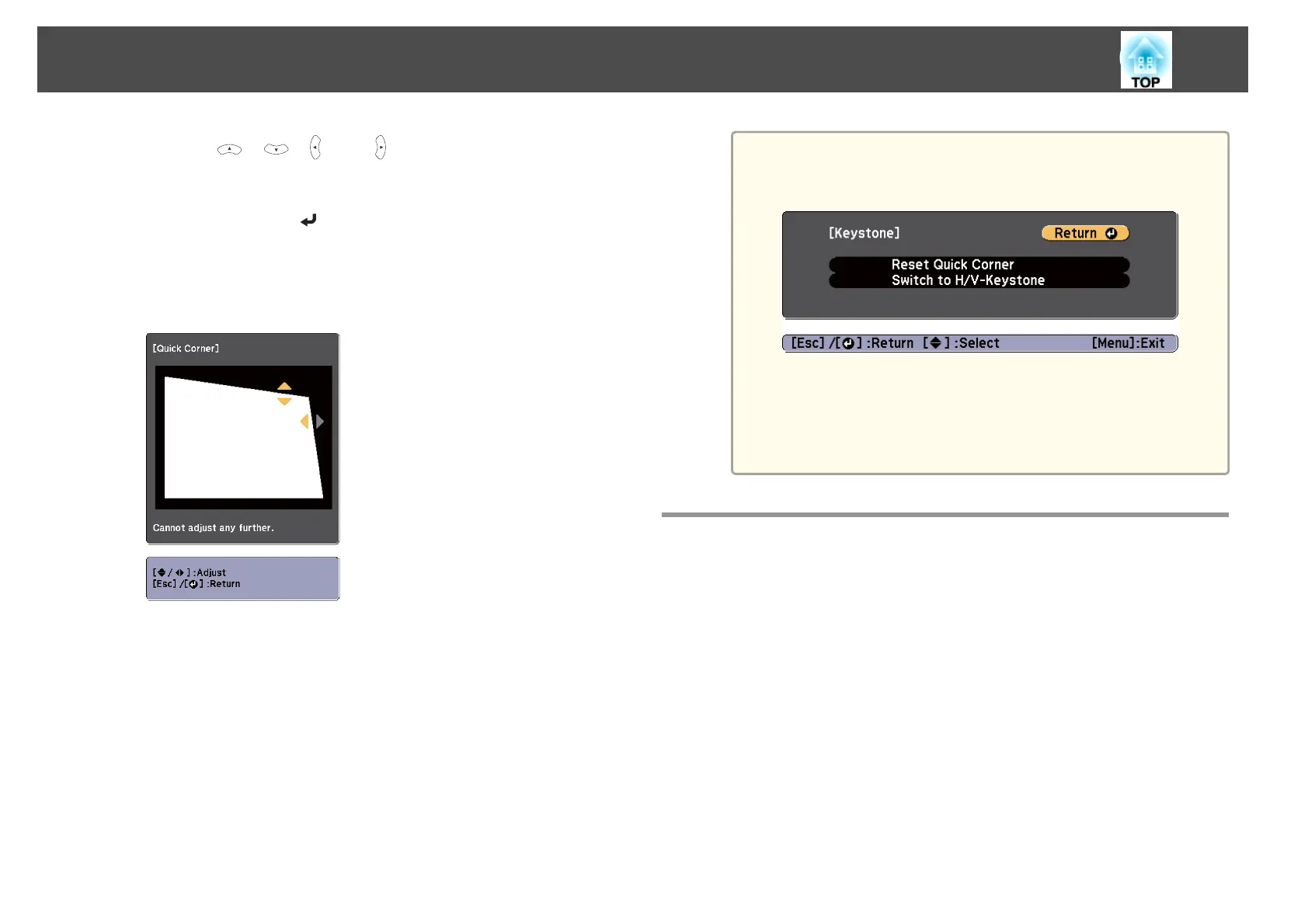

If the message "Cannot adjust any further." is displayed while
adjusting, you cannot adjust the shape any further in the direction
indicated by the gray triangle.
f
Repeat procedures 4 and 5 as needed to adjust any remaining
corners.
g
When you are done, press the [Esc] button to exit the correction
menu.
Because Keystone was changed to Quick Corner, the corner
selection screen shown in step 4 is displayed the next time you press
the [
w] or [v] button on the control panel. Change Keystone to
H/V-Keystone if you want to perform horizontal and vertical
correction using the [
w] or [v] button on the control panel.
s Settings - Keystone - H/V-Keystone p.88
a
If the [Esc] button is held down for about two seconds while
the corner selection screen from step 4 is displayed, the
following screen is displayed.
Reset Quick Corner: Resets the result of Quick Corner
corrections.
Switch to H/V-Keystone: Switches the correction method to
H/V-Keystone.
s "Settings Menu" p.88
Adjusting the Image Size
For EB-X25/EB-W22/EB-X22/EB-X21/EB-X20/EB-X17
Turn the zoom ring to adjust the size of the projected image.
For EB-S21/EB-S17
Adjust by using the [Wide]/[Tele] buttons on the control panel.
Wide: Enlarges the size of the projected image.
Tele: Reduces the size of the projected image.
Adjusting Projected Images
44
