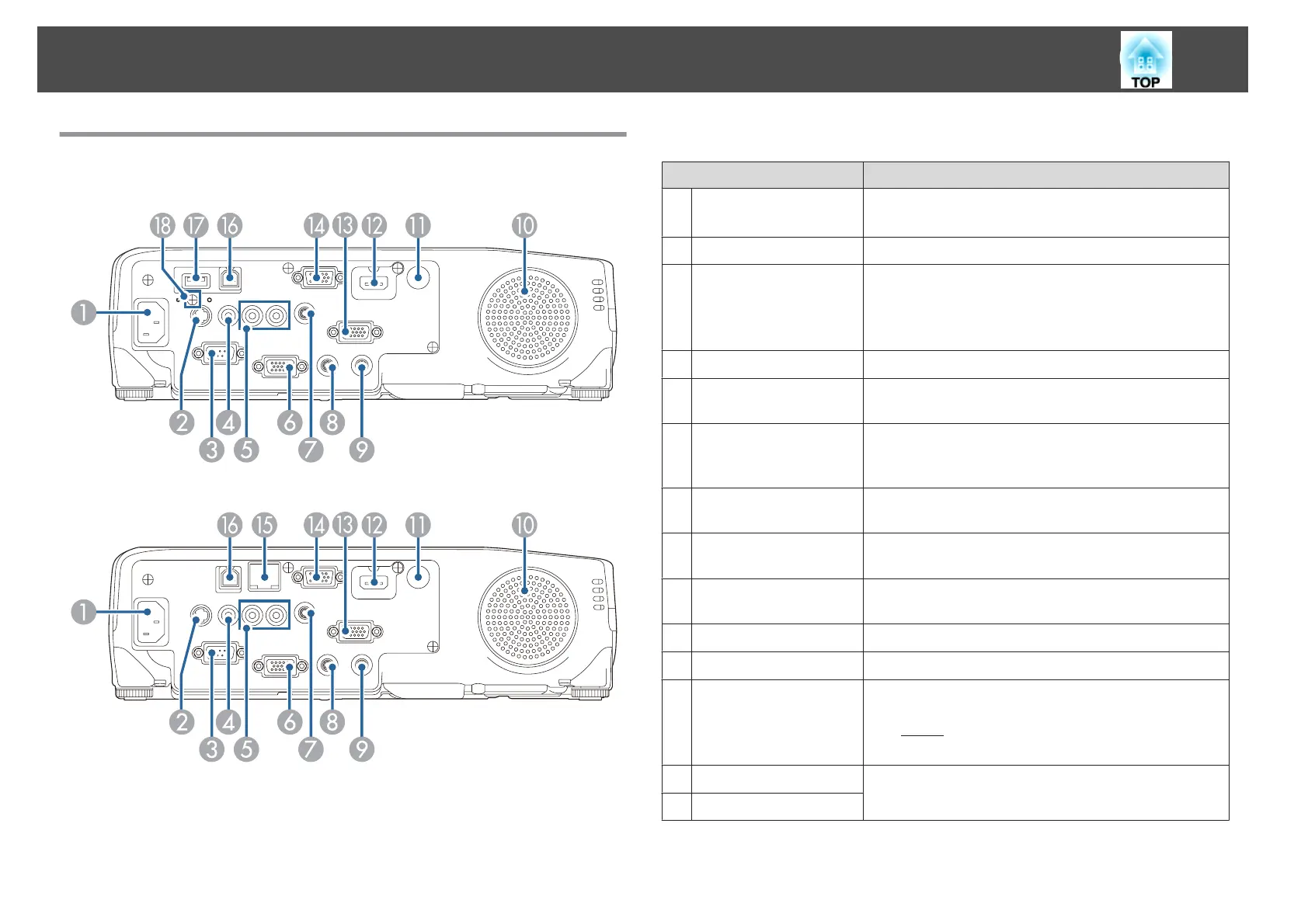

Rear
EB-X21/EB-S21/EB-X17/EB-S17
EB-X25/EB-W22/EB-X22/EB-X20
The ports vary depending on the model being used.
Name Function
A
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.34
B
S-Video port
For S-video signals from video sources.
C
RS-232C port
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.73
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
F
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
G
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
H
Audio Output port
Outputs audio from the currently projected image to an
external speaker.
I
Audio2 port
Inputs audio from equipment connected to the
Computer2 port.
J
Speaker
Outputs audio.
K
Remote receiver
Receives signals from the remote control.
L
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP
g
.
s "Connecting Image Sources" p.26
M
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
N
Computer1 port
Part Names and Functions
13

Table of Contents

Other manuals for Epson EB-W22

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson EB-W22 and is the answer not in the manual?

Epson EB-W22 Specifications

Image IconImage
color light output3, 000 lumen - 2, 100 lumen (economy)
white light output3, 000 lumen - 2, 100 lumen (economy)
resolutionWXGA, 1280 x 800, 16:10
contrast ratio10, 000:1
lamp power200 W
Optical IconOptical
projection ratio1.30 - 1.56:1
zoom factor1.2
projection size33 inches - 318 inches
projection distance wide/tele1.68 m - 2.02 m (60 inch screen)
focal distance16.9 mm - 20.28 mm
Connectivity IconConnectivity
usb display function3 in 1: Image / Mouse / Sound
interfacesUSB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
epson iprojection appAd-Hoc / Infrastructure
General IconGeneral
energy use270 W, 223 W (economy), 0.47 W (standby)
dimensions single carton363 x 397 x 160 mm
carton weight4.11 Kg
