Epson EB-W22 User Manual

EB-S21/EB-S17
EB-X25/EB-W22/EB-X22
/EB-X21/EB-X20/EB-X17

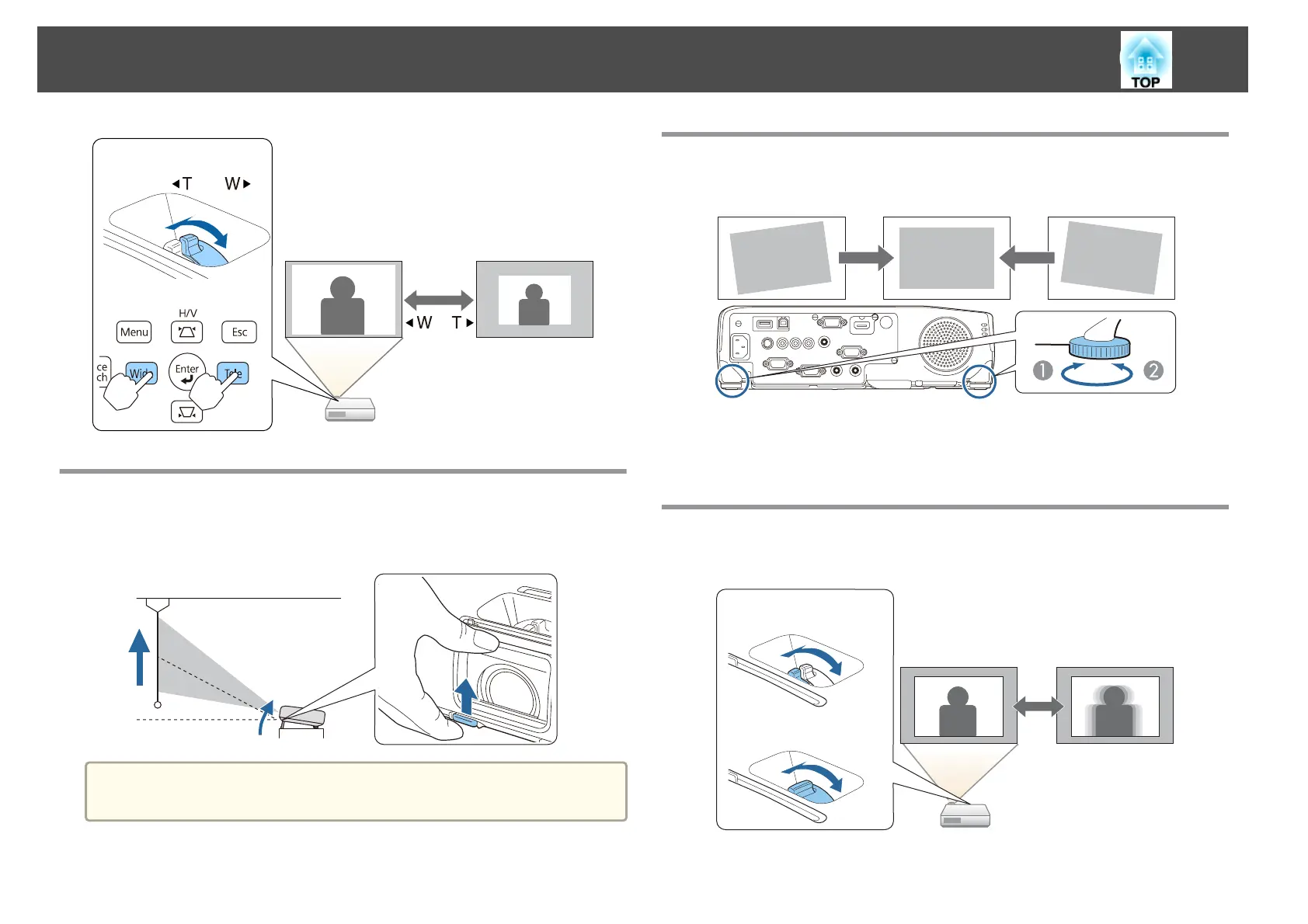

Adjusting the Image Position
Press the foot adjust lever to extend the front adjustable foot. You can
adjust the position of the image by tilting the projector up to 12 degrees.
a
The larger the angle of tilt, the harder it becomes to focus. Install the
projector so that it only needs to be tilted at a small angle.
Adjusting the Horizontal Tilt
Extend and retract the rear feet to adjust the projector's horizontal tilt.
A
Extend the rear foot.
B
Retract the rear foot.
Correcting the Focus
You can correct the focus using the focus ring.
EB-S21/EB-S17
EB-X25/EB-W22/EB-X22
/EB-X21/EB-X20/EB-X17
Adjusting Projected Images
45

Epson EB-W22 Specifications


color light output	3, 000 lumen - 2, 100 lumen (economy)
white light output	3, 000 lumen - 2, 100 lumen (economy)
resolution	WXGA, 1280 x 800, 16:10
contrast ratio	10, 000:1
lamp power	200 W

Optical

projection ratio	1.30 - 1.56:1
zoom factor	1.2
projection size	33 inches - 318 inches
projection distance wide/tele	1.68 m - 2.02 m (60 inch screen)
focal distance	16.9 mm - 20.28 mm

Connectivity

usb display function	3 in 1: Image / Mouse / Sound
interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
epson iprojection app	Ad-Hoc / Infrastructure

General

energy use	270 W, 223 W (economy), 0.47 W (standby)
dimensions single carton	363 x 397 x 160 mm
carton weight	4.11 Kg
