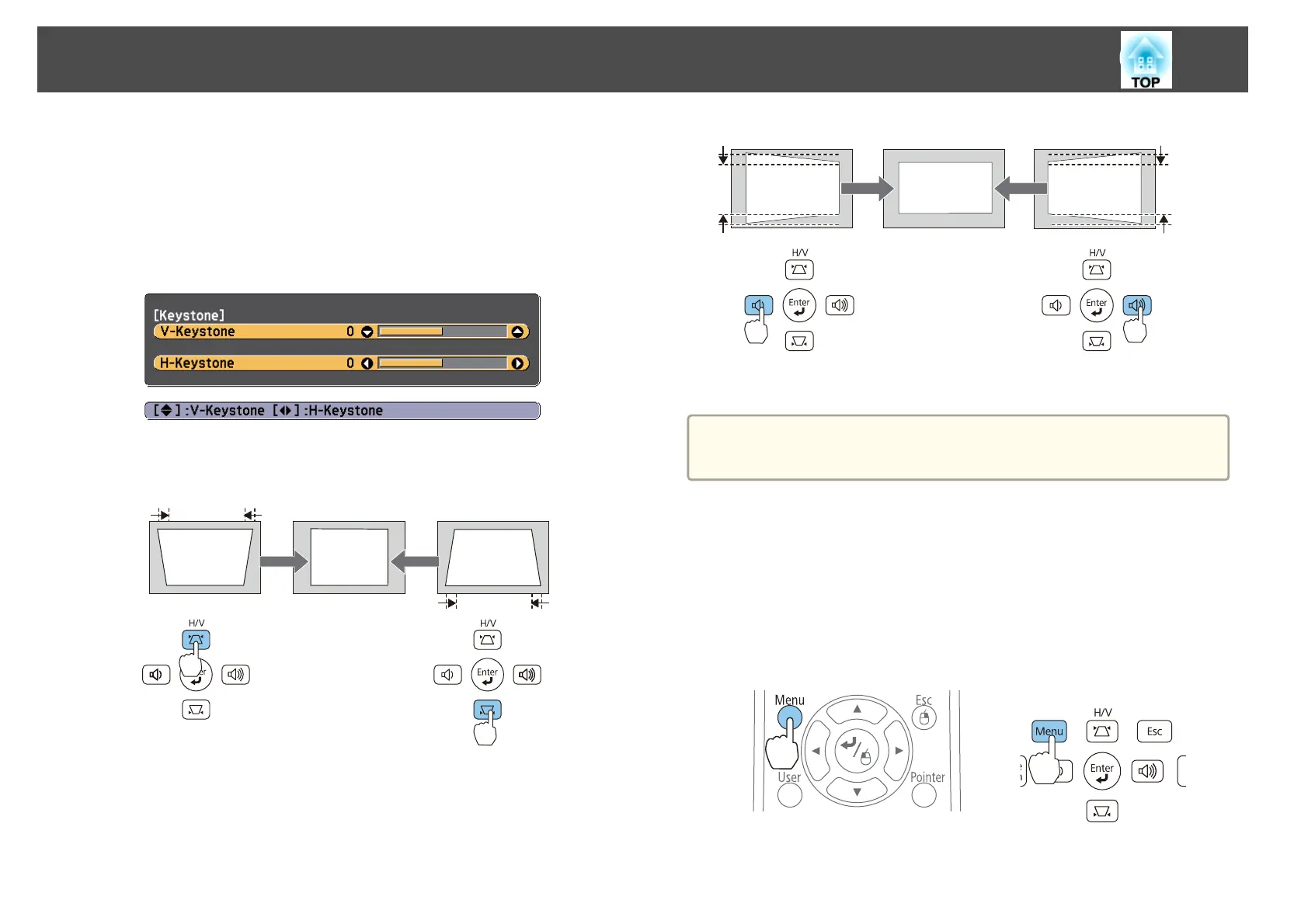

Epson EB-W22 User Manual

H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently.
a
Press the [w] or [v] button on the control panel during
projection to display the Keystone screen.
b
Press the following buttons to correct keystone distortion.
Press the [
w] or [v] button to correct vertical distortion.
Press the [a]/[b] buttons or the [Wide]/[Tele] buttons to correct
horizontal distortion.
a
You can also set H/V-Keystone from the Configuration menu.
s Settings - Keystone - H/V-Keystone p.88
Quick Corner
This allows you to manually correct each of the four corners of the
projected image separately.
a
Press the [Menu] button while projecting.
s "Using the Configuration Menu" p.82
Using the remote control Using the control panel
Adjusting Projected Images
42

Epson EB-W22 Specifications


color light output	3, 000 lumen - 2, 100 lumen (economy)
white light output	3, 000 lumen - 2, 100 lumen (economy)
resolution	WXGA, 1280 x 800, 16:10
contrast ratio	10, 000:1
lamp power	200 W

Optical

projection ratio	1.30 - 1.56:1
zoom factor	1.2
projection size	33 inches - 318 inches
projection distance wide/tele	1.68 m - 2.02 m (60 inch screen)
focal distance	16.9 mm - 20.28 mm

Connectivity

usb display function	3 in 1: Image / Mouse / Sound
interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
epson iprojection app	Ad-Hoc / Infrastructure

General

energy use	270 W, 223 W (economy), 0.47 W (standby)
dimensions single carton	363 x 397 x 160 mm
carton weight	4.11 Kg
