Epson EB-X12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 103 Revision C
3.4 Safety Check after Servicing
To Maintain the safeness of the product, make sure to carry out the safety check
following the instruction in this section after repairing the safety device specified
below.
 Definition of Safety Device/Functions
 The parts that fall into an unsafe state
*
if their specifications or functions are
nonconforming.
 The parts that require attention to the safety precautions of the customer.
 The parts that are designated by the public safety regulations or the like.
*
“Unsafe state” is the state of a part that may cause or contain the risk of the
following:
• Personal injuries
• Damages to the property
• Abnormal heat generation
•Smoking
•Fire
• Explosion
• Damage to the part to be installed
• Disturbance to/from the peripheral device (EMC disturbance)
• Chemical substances regulated by the law
 The Safety Control Points are:
 The processes that Safety Devices/Functions are manufactured, or checked.
 The processes that require the management to maintain the workers' safety.
 Safety Devices/Functions of this product
 Lamp (p.60)
 WARNING LABEL,Sheet (Part A/B/C/D/E) (p.66)
 MA Board (p.79)
 Optical Engine (p.82)
 BA Unit (p.93)
 PS Filter (p.94)
 Method to check the Safety Control Points
Carry out the Check in the order given below.

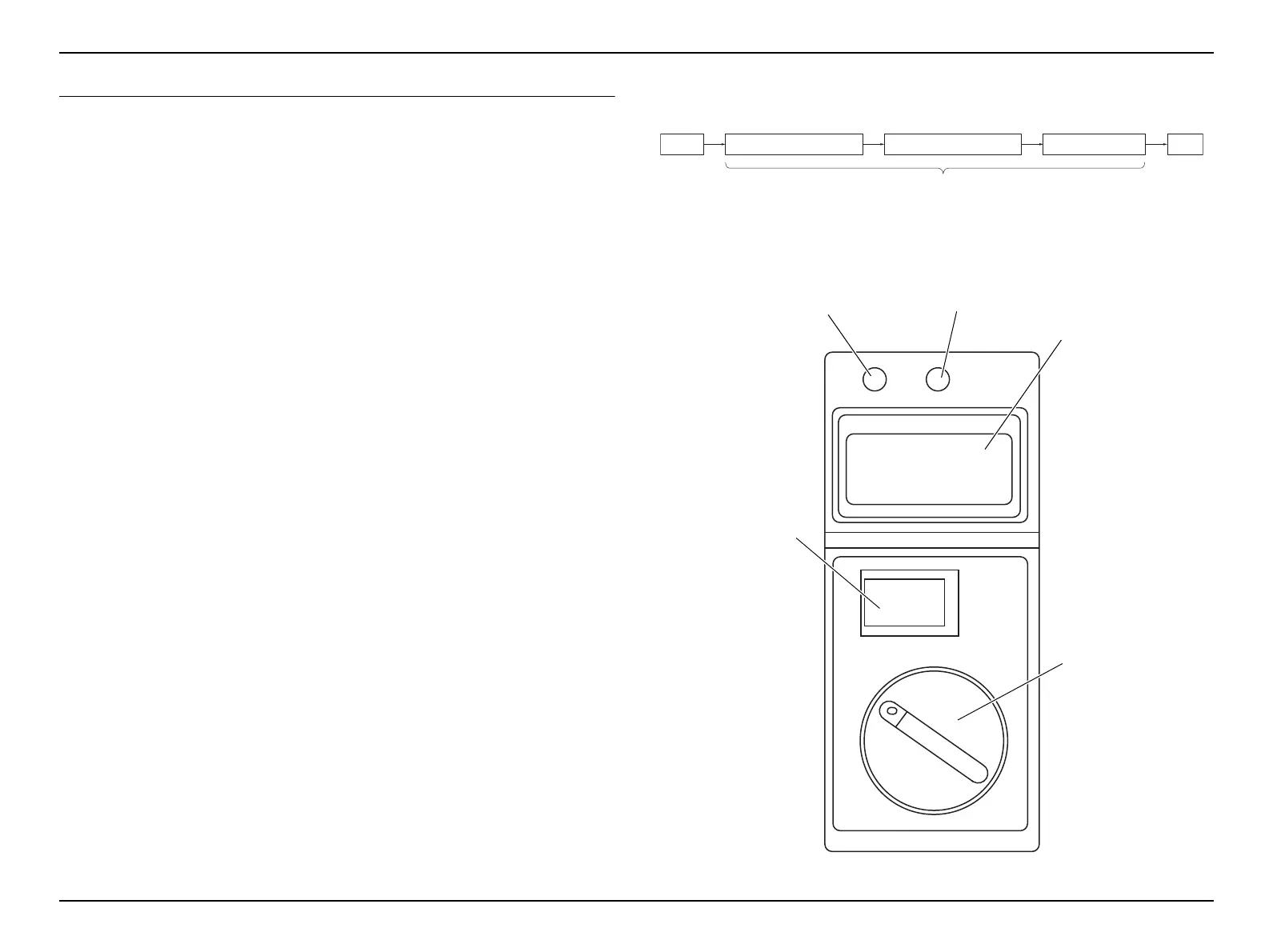

 Testing apparatus
Insulation ohmmeter (Rating: 500 V/100 MΩ)
Repair EndInsulation resistance test Ground continuity check
Safety inspections
Illumination check
Ground terminal
Line terminal
Display
Measure switch
Range selection
switch
