EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 81 Revision C
3.3.7 Speaker
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Speaker from the Lower Case.
6. Remove the INT Fan Cushion (x 2) from the Speaker.

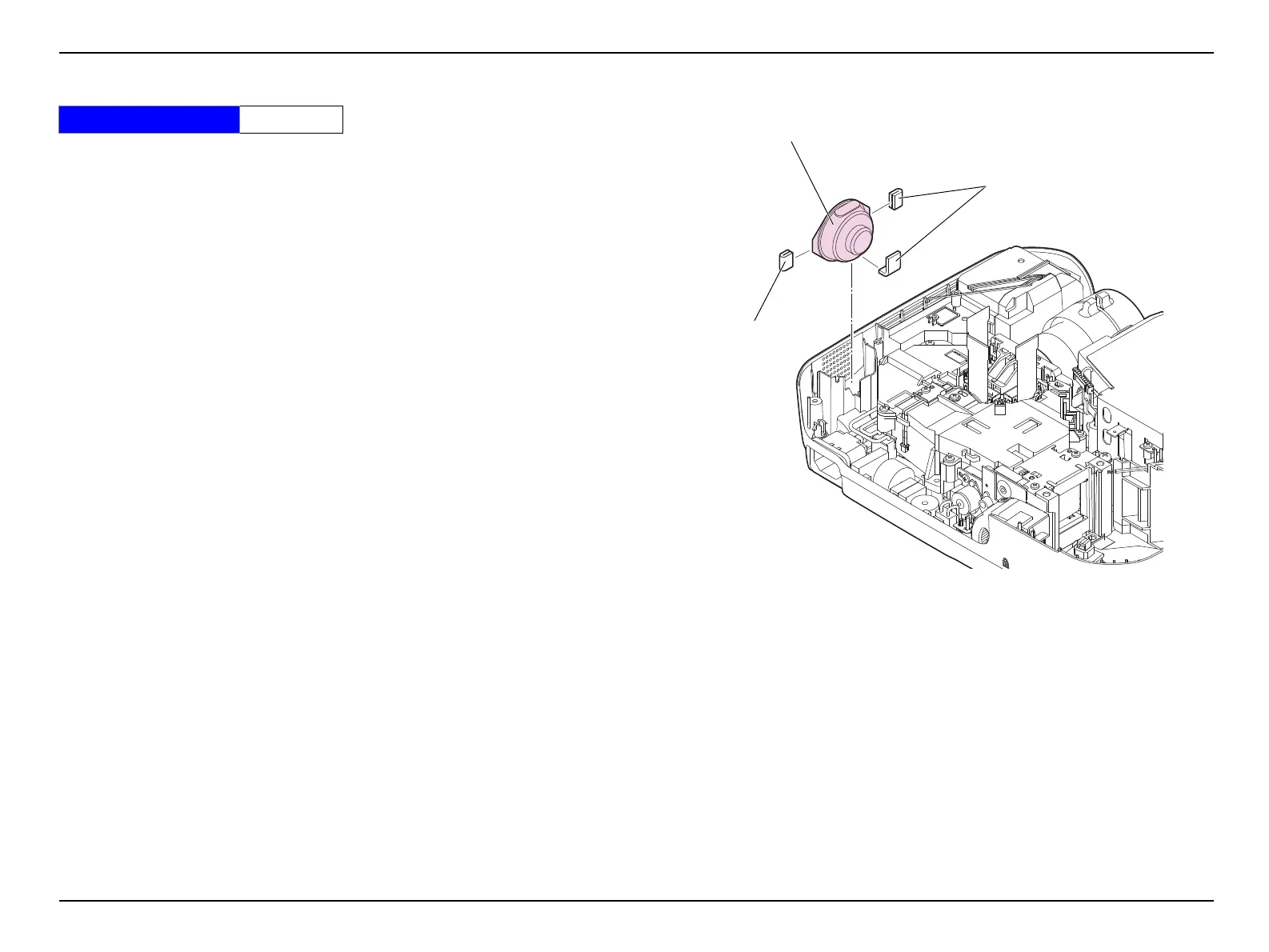

Figure 3-23.
Standard Operation Time 6 Min.
Speaker
INT Fan Cushion
INT Fan Cushions
To Next Page
