Epson EB-X12 - Mirror;R

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 131 Revision C
4.2.4 MIRROR;R
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the two MIRROR;R.
3. Remove the two Spring,Mirror Fixing,FIF.

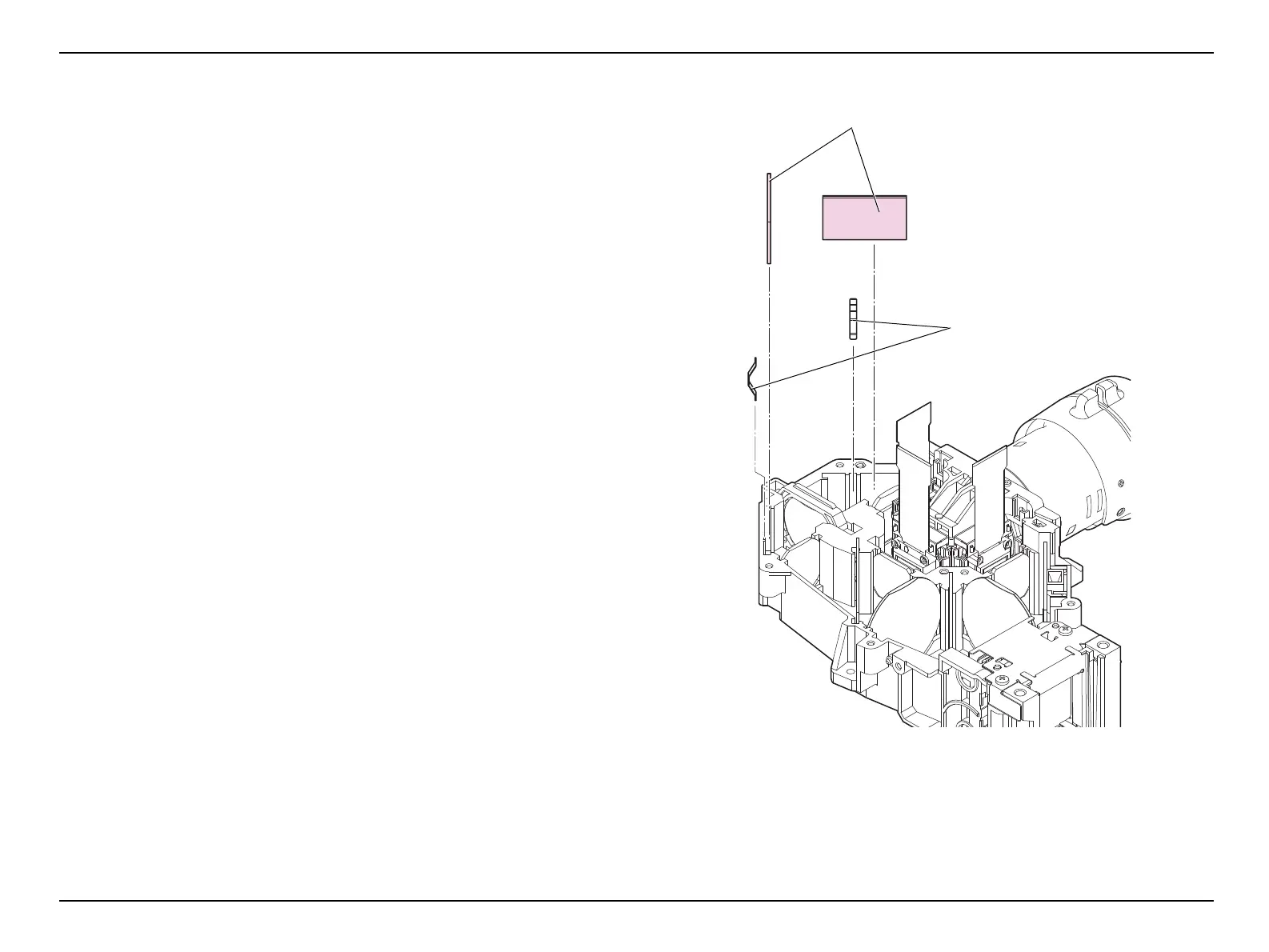

Figure 4-20.
MIRROR;R
Spring,Mirror
Fixing,FIF
