3.3.5.1 SW Board
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the three screws and remove the SW Board.
5. Disconnect the Shutter Switch cable from the SW Board.
6. Remove the SW Cable.
7. Remove the two screws and remove the SW Button.
8. Remove the following parts from the Upper Case (assembly).
•LED Lens
• SW Selection Button

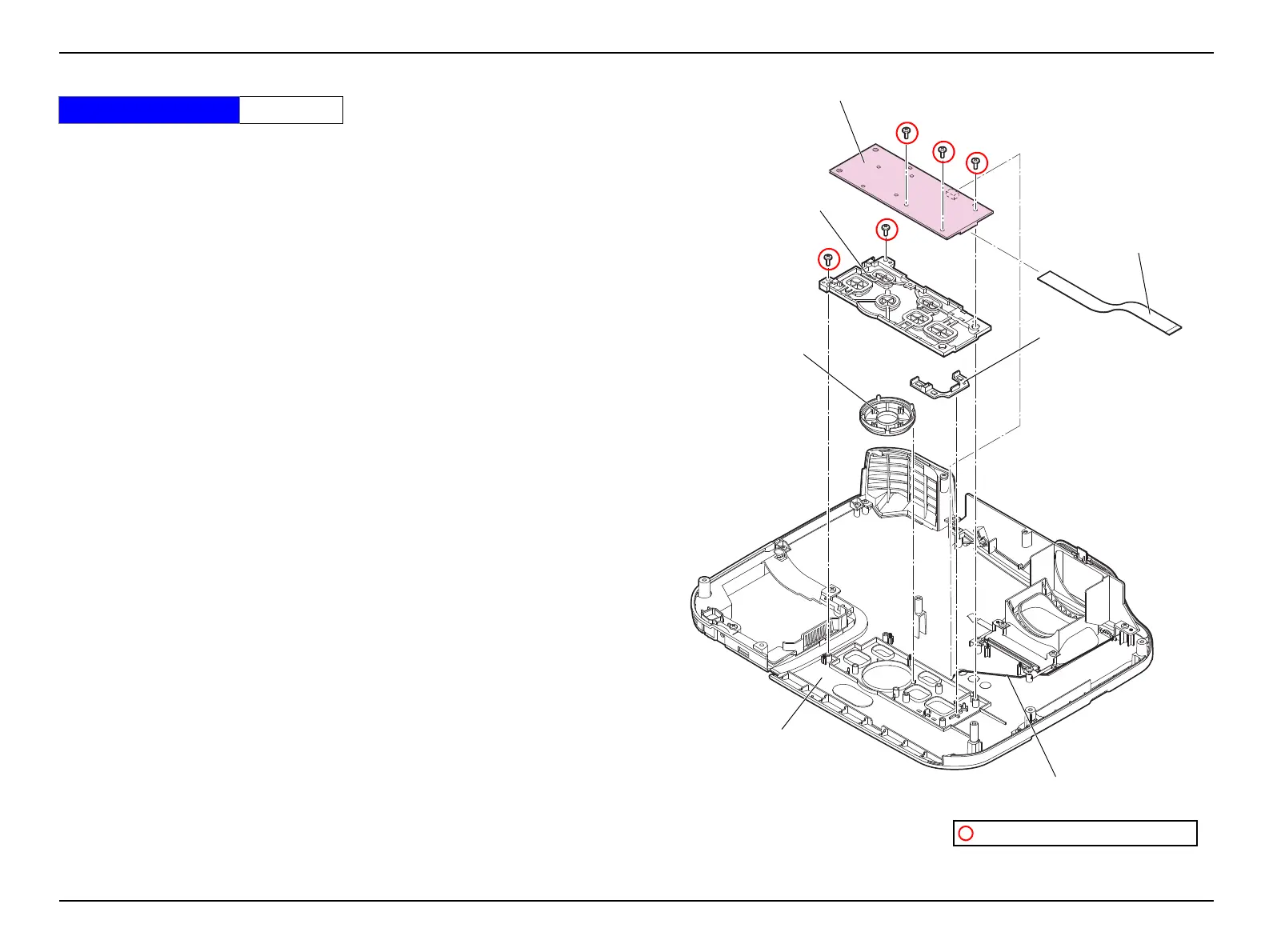

Figure 3-9.
Standard Operation Time 5 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
LED Lens
SW Cable
SW Board
Shutter Switch
Upper Case (assembly)
SW Selection Button
SW Button
