EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Maintenance CONFIDENTIAL
SEIKO EPSON 125 Revision C
4.2.2 CONDENSER LENS;D/FB/FG2/R
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the CONDENSER LENS;D.
3. Remove the CONDENSER LENS;FB.
4. Remove the CONDENSER LENS;FG2.
5. Remove the CONDENSER LENS;R.

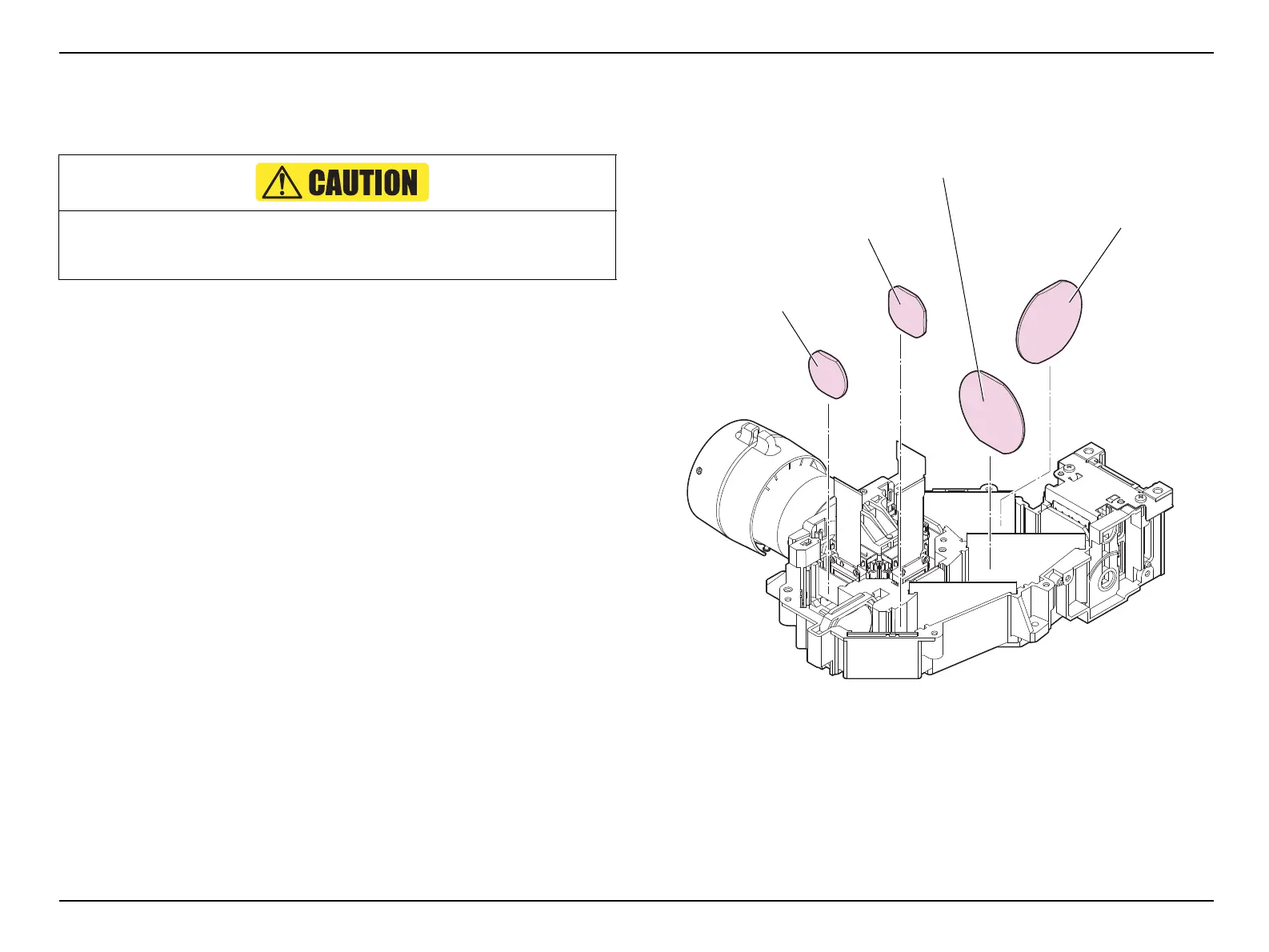

Figure 4-10.
Some of the condenser lenses used for this projector are different according to
the models. Check the correct lenses for your model referring to the table below.
Condenser Lenses according to the Models
(p126)
CONDENSER
LENS;D
CONDENSER
LENS;R
CONDENSER
LENS;FB
CONDENSER
LENS;FG2
To Next Page
