Epson EB-X12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 55 Revision C

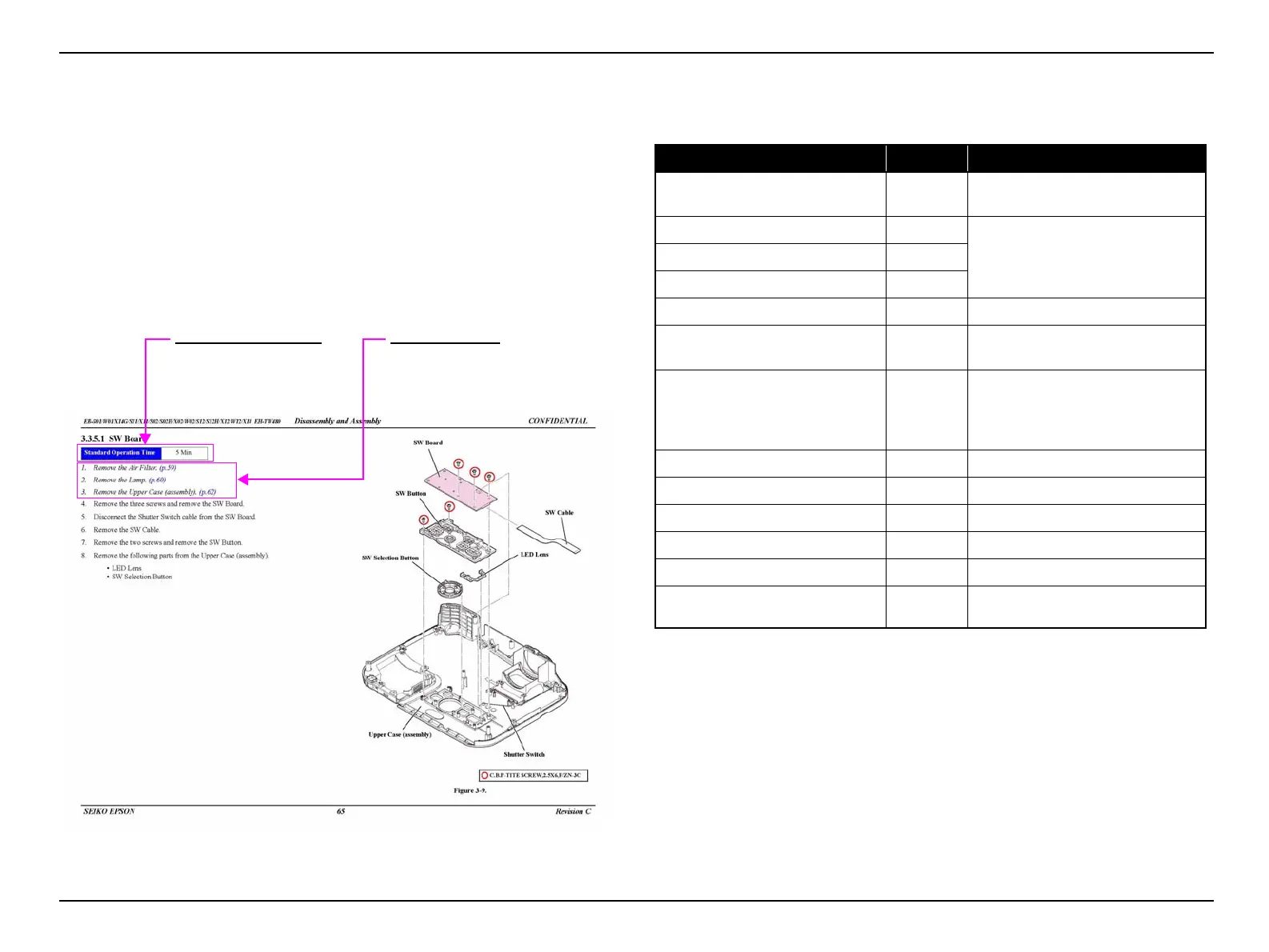

3.1.4 Standard Operation Time
The standard operation time for each operation is provided at the beginning of each
part. Use the time as a guideline for actual operation.
 Basis for the standard operation time
 A service employee would have sufficient knowledge for the target product’s
structure, and be able to disassemble/reassemble the product without any
reference to guide books.
 Each operation time is the total time of disassembling/removing the target part
following the given shortest procedure, and reassembling it.
 Guide to the standard operation time
3.1.5 Tools
The following table indicates the tools recommended for the use of disassembly,
reassembly and adjustment.
Note : *
1
q.s.: Sufficient quantity
*
2
Specified Lubricant: G-78 (AQUADRY W-0082)
Standard Operation Time:
The total time to disassemble/
reassemble the target part
following the shortest
procedure.
Shortest Procedure:
The shortest way to remove the
target part.
Tool Name Qt. Application
Phillips screwdriver No. 00 (8 cm) 1
Disassembling the focus ring and the
zoom ring
Phillips screwdriver No. 0 (8 cm) 1
Disassembling the outer cases and
inner components
Phillips screwdriver No. 1 (10 cm) 1
Phillips screwdriver No. 2 (10 cm) 1
Hexagonal box screwdriver (5 mm) 1 Removing the computer interface
Tweezers 1
Removing the Air Filter Cover Band
and disassembling the Front Foot
Heat-resistant tape q.s.*
1
Securing cables.
Use commercially available Polyimide
tape generally called “KAPTON®
TAPE”.
Brush 1 Cleaning away dust
Vacuum cleaner 1 Cleaning away dust
Lens cleaner q.s.*
1
Cleaning the projection lens
Gloves 1 pair
---
Anti-static wrist band 1
---
Lubricant *
2
q.s.*
1
Lubricating the shutter and its frame.
(See Shutter Switch (p.70))

Epson EB-X12 Specifications

General

Matrix size	0.55 \
Projection distance	- m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Aspect ratio	4:3
RS-232 ports	0
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
Maximum operating altitude	2286 m
Offset	8:1 %
Zoom capability	Yes
Focal length range	1.58 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	-
RMS rated power	2 W
Product type	Standard throw projector
Product color	Black, White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	283 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3847 g
