EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 85 Revision C
3.3.8.2 Focus Ring / Zoom Ring
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the three screws and remove the Focus Ring.
7. Remove the two screws and remove the Zoom Ring.
(EB-W01/X14G/X11/X02/W02/X12/W12/X14 EH-TW480 only)

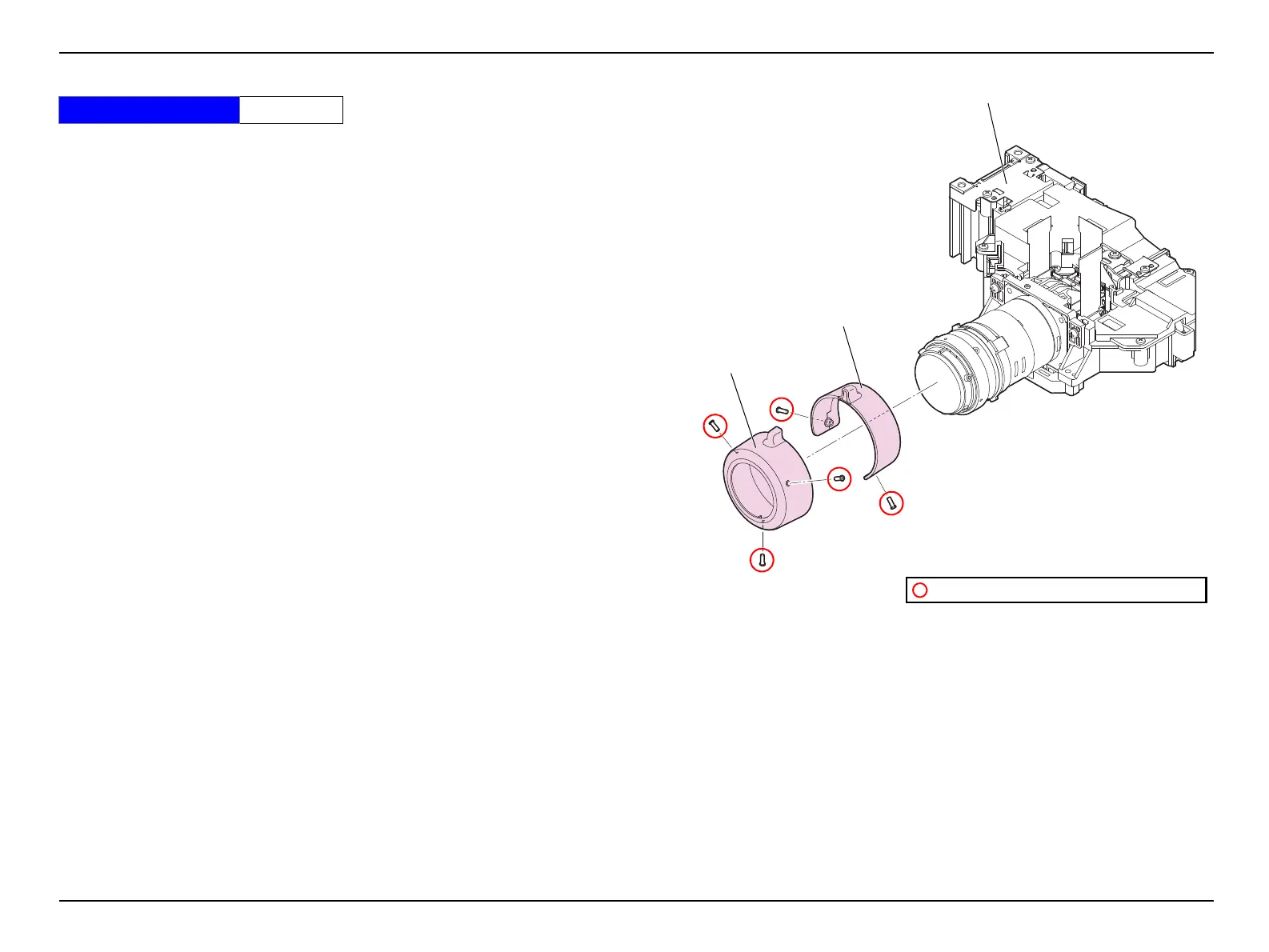

Figure 3-27.
Standard Operation Time 8 Min.
C.P.TYPE1 B-TITET-A.SCREW,2X6,F/ZB-3C
Optical Engine
Focus Ring
Zoom Ring
To Next Page
