4.2.6 MULTI LENS;A
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the COVER,ML. (p.133)
3. Remove the MULTI LENS;A.
4. Remove the two SPRING,ML FASTEN.

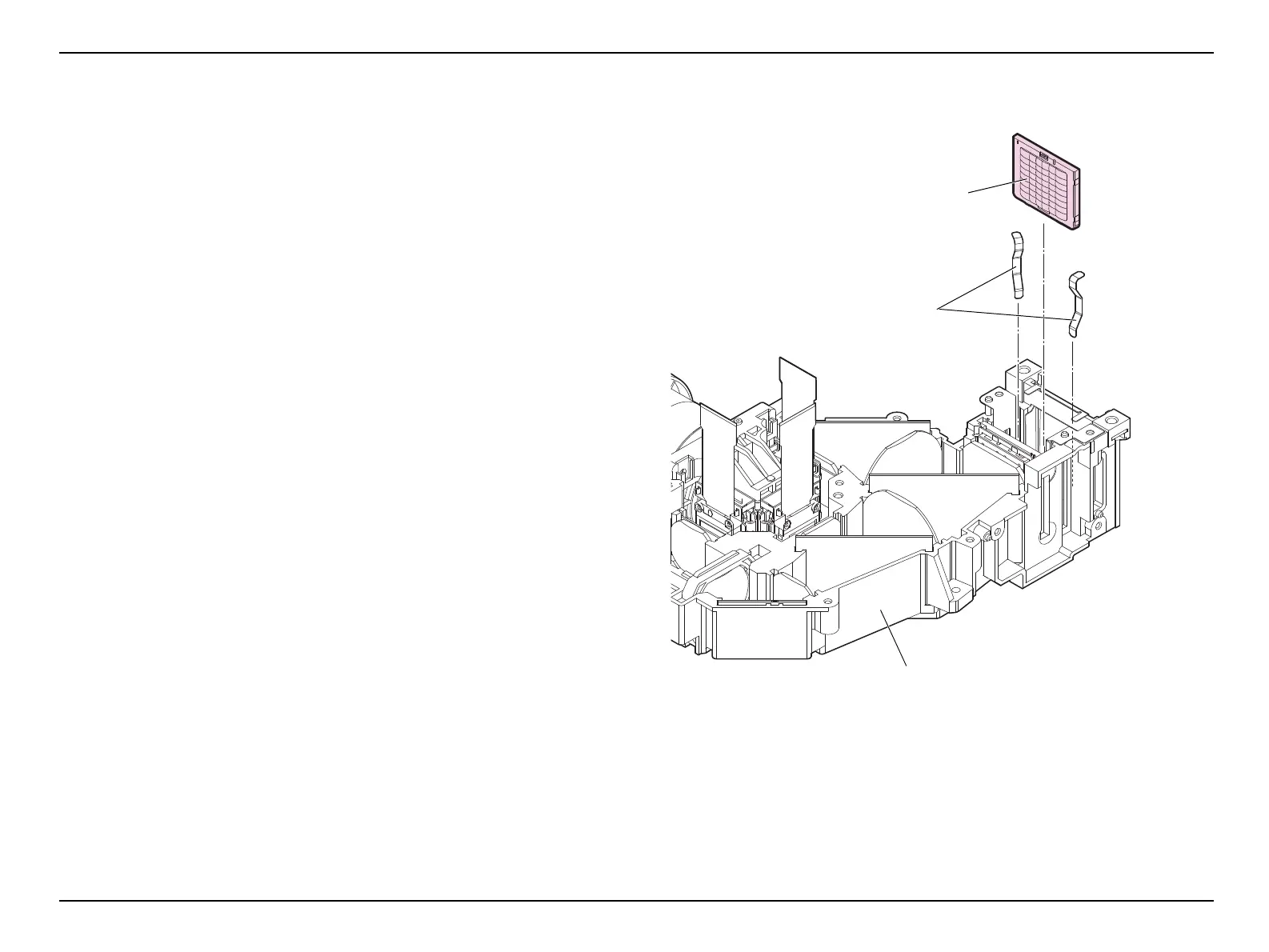

Figure 4-28.
MULTI LENS;A
LIGHT GUIDE,LOWER
SPRING,ML
FASTEN
