Epson EB-X12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 88 Revision C
3.3.10.1 TH Board (2) / EX Fan
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the EX Duct (assembly). (p.87)
7. Remove the two screws ( ) and remove the PS Duct.
8. Remove the TH Board (2) from the Inner EX Duct.
9. Remove the TH Cable from the TH Board (2).
10. Remove the two screws
() and remove the Inner EX Duct.
11. Remove the Shutter Cushion A (x 2) from the Inner EX Duct.
12. Remove the
EX Fan from the EX Fan Holder.

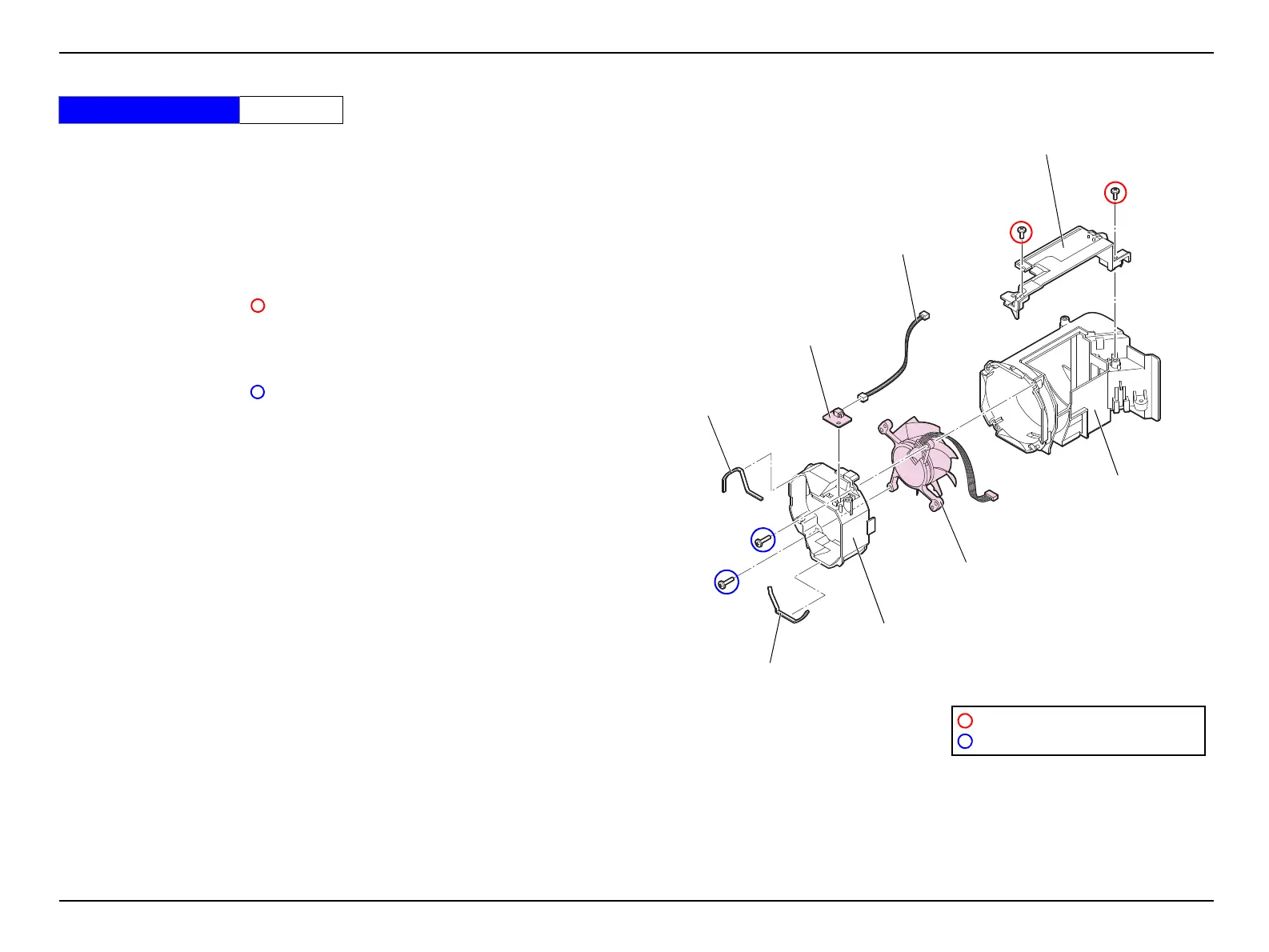

Figure 3-30.
Standard Operation Time 11 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
PS Duct
TH Board (2)
TH Cable
Shutter Cushion A
Shutter Cushion A
Inner EX Duct
EX Fan
EX Fan Holder

Epson EB-X12 Specifications

General

Matrix size	0.55 \
Projection distance	- m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Aspect ratio	4:3
RS-232 ports	0
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
Maximum operating altitude	2286 m
Offset	8:1 %
Zoom capability	Yes
Focal length range	1.58 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	-
RMS rated power	2 W
Product type	Standard throw projector
Product color	Black, White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	283 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3847 g
