4.2.3 BDM/GDM
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the BDM.
3. Remove the Spring,Mirror Fixing,FIF
().
4. Remove the GDM.
5. Remove the two Spring,Mirror Fixing,FIF
().

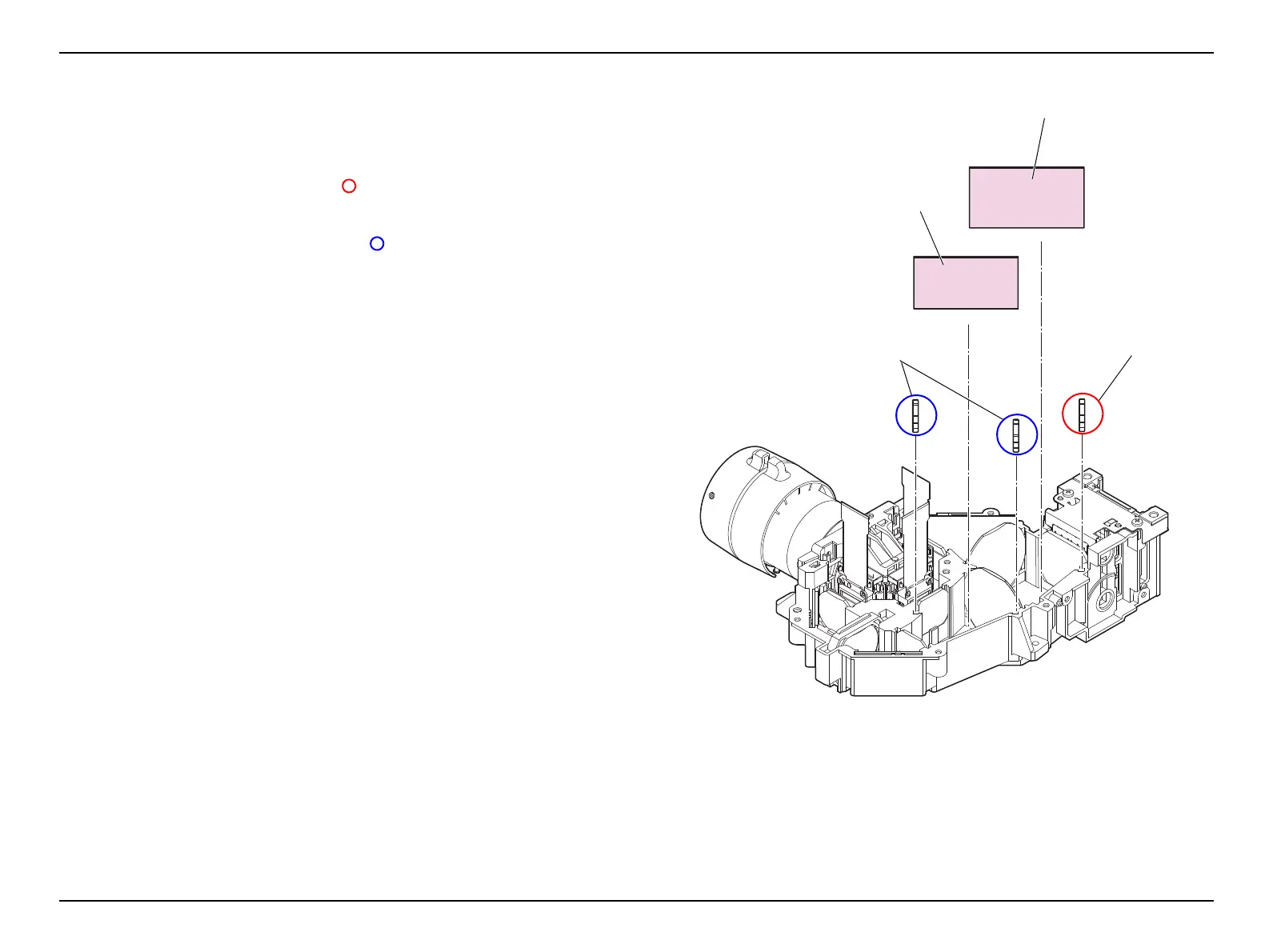

Figure 4-16.
BDM
GDM
Spring,Mirror
Fixing,FIF
Spring,Mirror
Fixing,FIF
