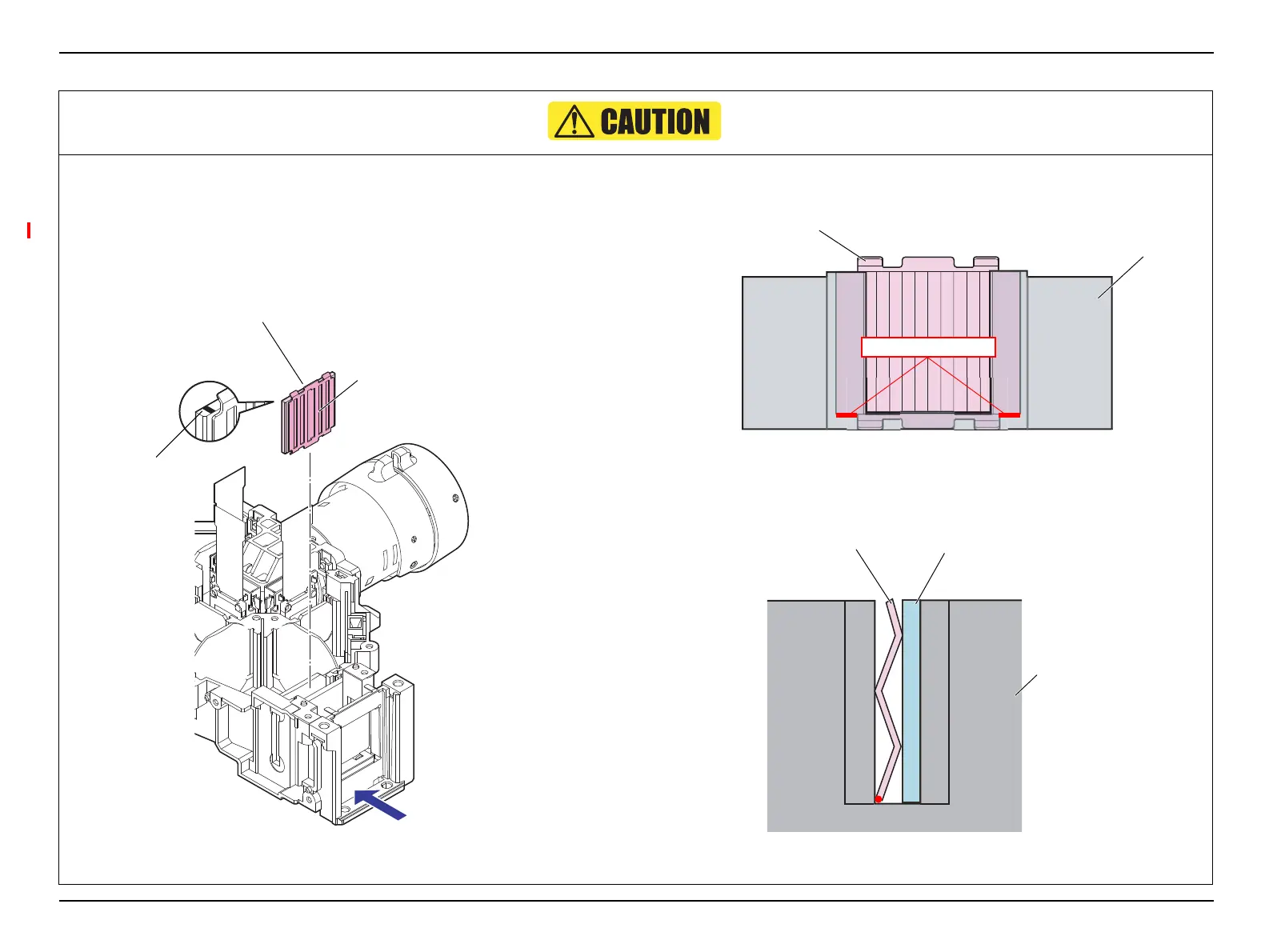

Install the PBS MASK ASSY.2 according to the following instructions.
1. Install the PBS MASK ASSY.2 with the metal plate side facing the incidence
side.
2. Please note marking.
Figure 4-25.
3. Insert the PBS MASK ASSY.2 without any gap between the bottom of it and the
LIGHT GUIDE,LOWER.
Figure 4-26.
4. Insert the spring without any gap between the bottom and the LIGHT
GUIDE,LOWER to secure the
PBS MASK ASSY.2 .
Figure 4-27.
Metal plate side
PBS MASK ASSY.2
Incidence side
Marking
LIGHT GUIDE,LOWER
No gap in between
PBS MASK ASSY.2
Spring,Mirror Fixing,FIF
LIGHT GUIDE,LOWER
PBS MASK ASSY.2
