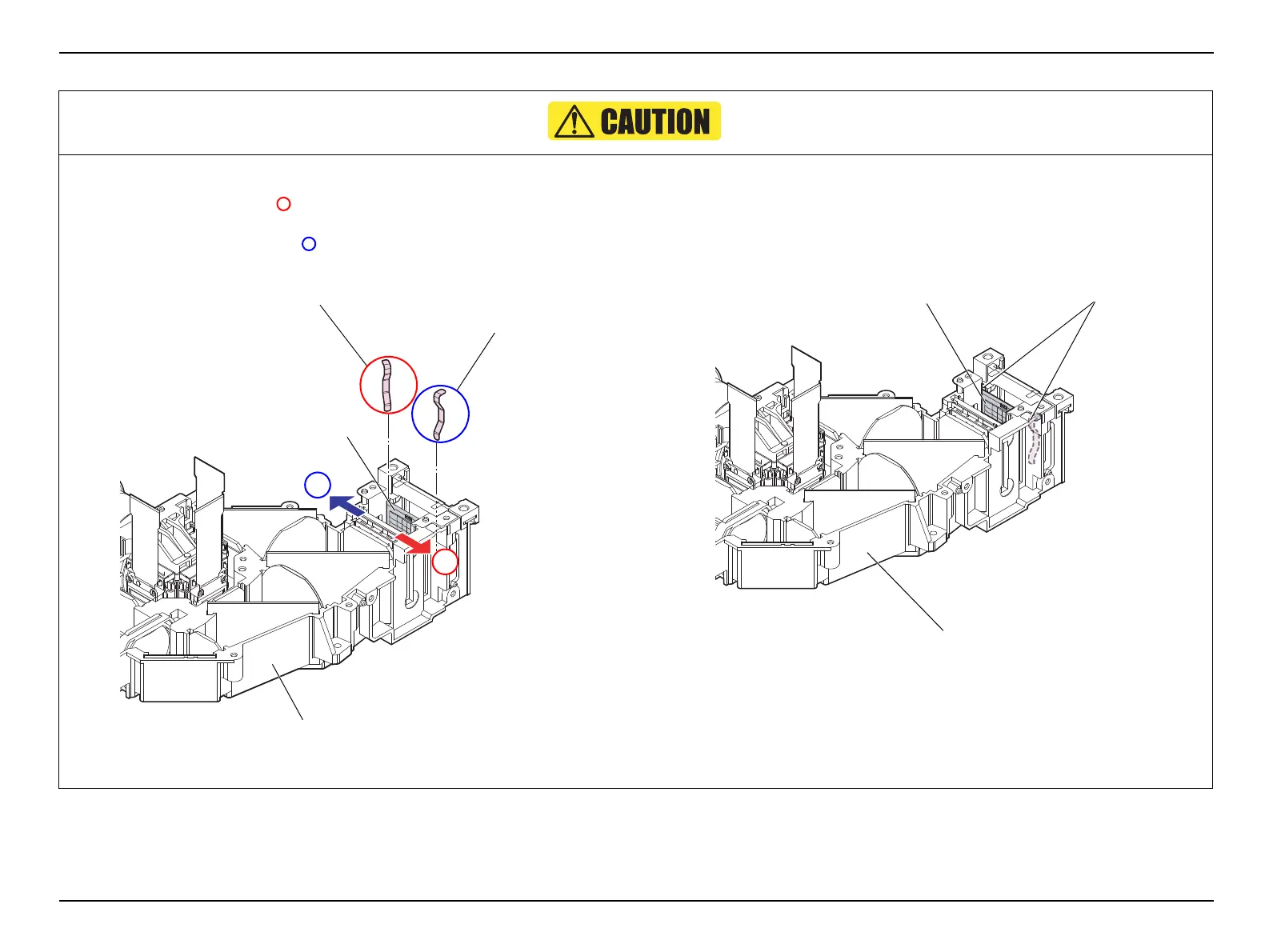

When installing the SPRING,ML FASTEN, take care in the following.
1. Slide the MULTI LENS;A in the direction of arrow (1), and attach the
SPRING,ML FASTEN ( ).
2. While pressing the MULTI LENS;A in the direction of arrow (2), attach
the SPRING,ML FASTEN ().
Figure 4-32.
When installing the SPRING,ML FASTEN, make sure to set the springs with
the top of them touching the top surface of the LIGHT GUIDE,LOWER.
After installing the SPRING,ML FASTEN, confirm there is no gap between
the bottom of MULTI LENS;A and the LIGHT GUIDE,LOWER.
(See Figure 4-30, Figure 4-31.)
Figure 4-33.
SPRING,ML FASTEN (1)
SPRING,ML FASTEN (2)
MULTI LENS;A
LIGHT GUIDE,LOWER
1
2
MULTI LENS;A
LIGHT GUIDE,LOWER
SPRING,ML FASTEN
