EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 76 Revision C

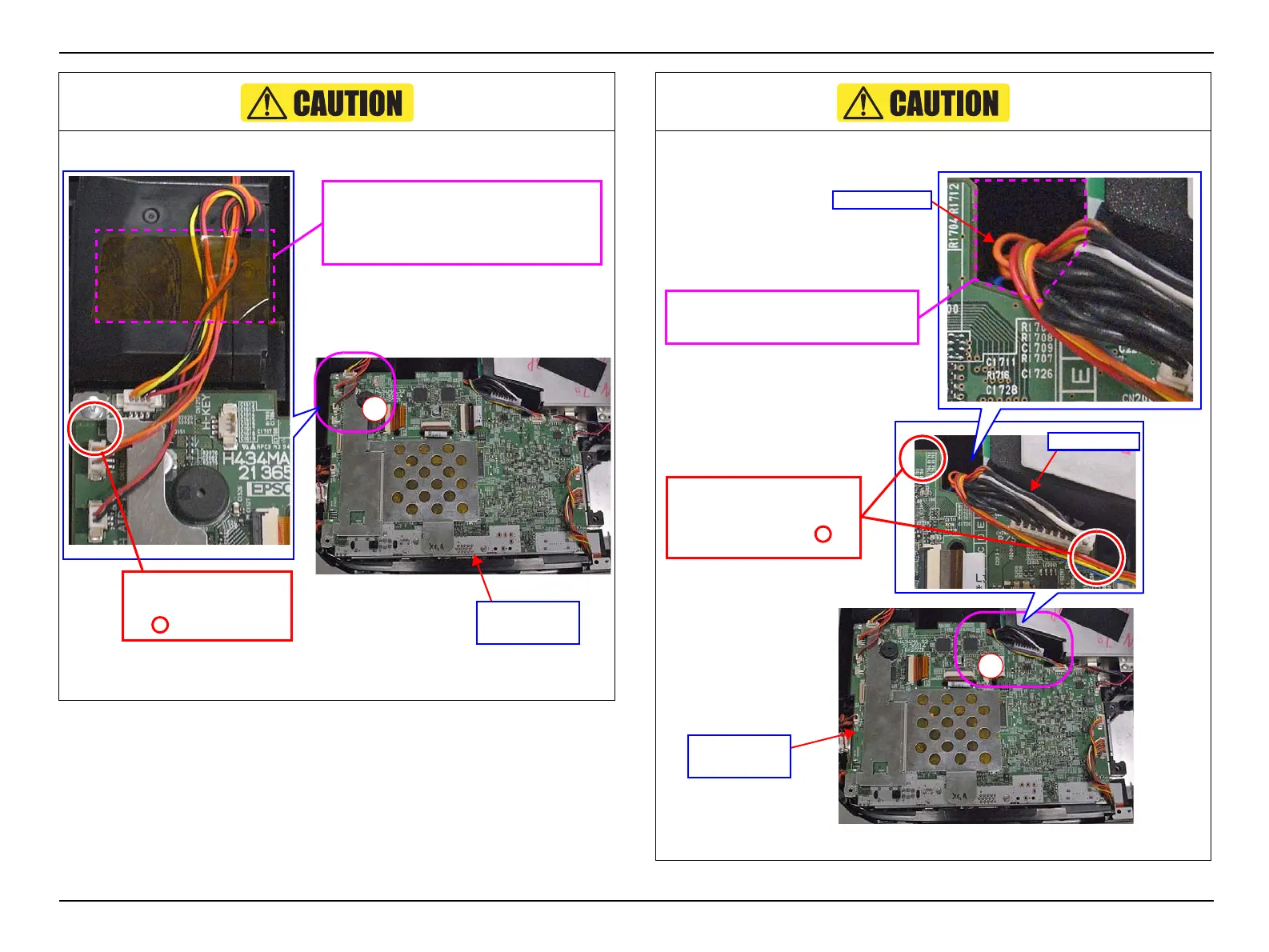

1. Routing the INT Fan cable, RC cable, and TH cable
Figure 3-17.
1
Route the above three cables on the INT
Duct (assembly) and secure them with
Polyimide tape as shown on the left.
Do not route the cables
over the area enclosed
in .
MA Board
(assembly)
2. Routing the PS Filter cable and SCI Cable
Figure 3-18.
2
MA Board
(assembly)
Power cable
When connecting the
Power cable, hold either of
the areas enclosed in .
SCI Cable
Twist the excess wires of the SCI
Cable and put them in the hole here.
To Next Page
