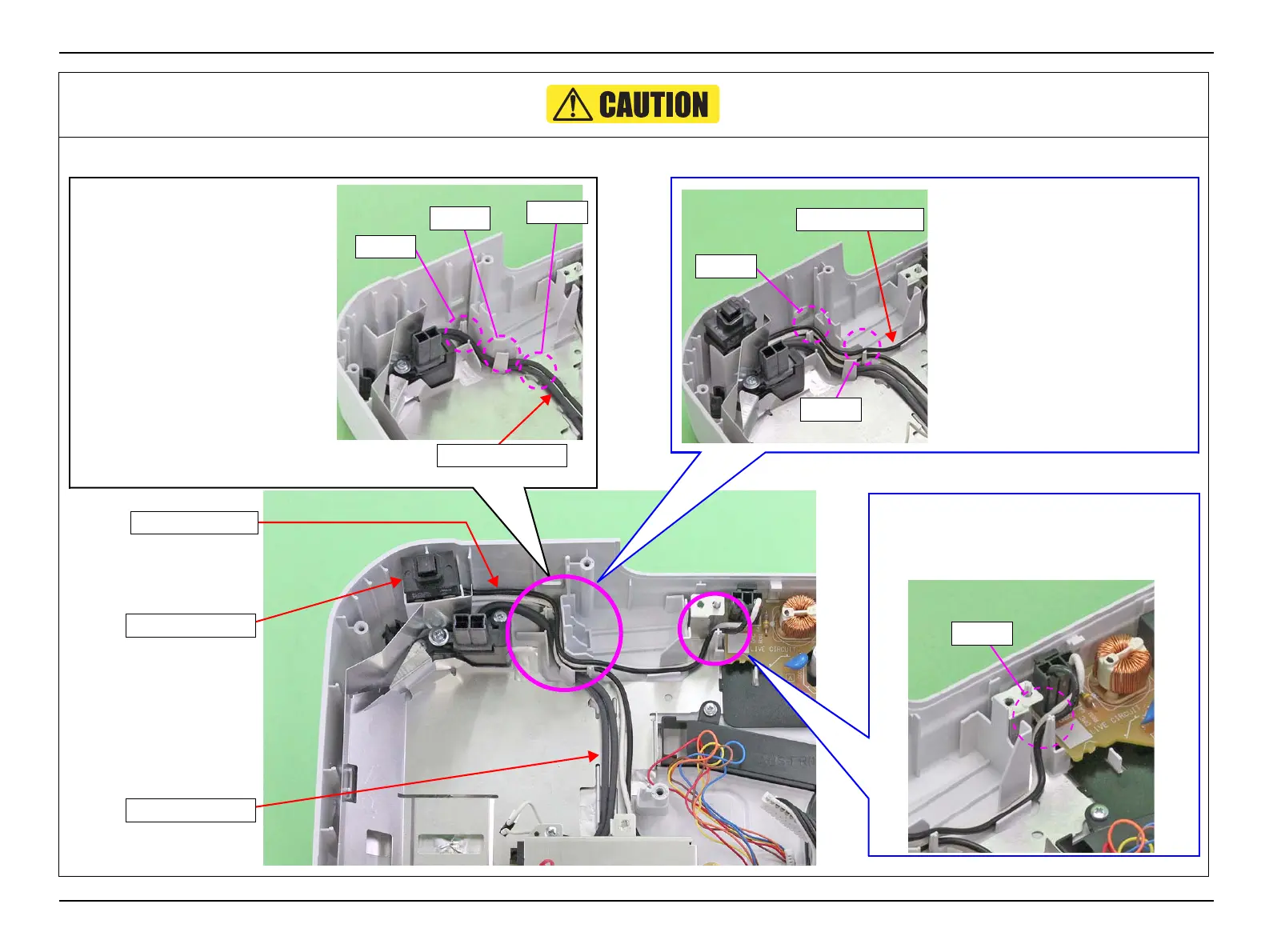

 Route the BA Lamp Cable and the PS Filter cable according to the instructions below. (Interlock Switch side)
Rib(3)
Routing the BA Lamp Cable
Route the cable through the rib(1),
rib(2) and rib(3).
(1) Routing the PS Filter cable
• Route the PS Filter cable on the
BA Lamp Cable as shown.
• Route the cable through the
rib(1) and rib(2).
Rib(1)
Rib(3)
Rib(2)
Interlock Switch
BA Lamp Cable
BA Lamp Cable
(2) Routing the PS Filter cable
Route the PS Filter cable through the rib(3).
Rib(1)
Rib(2)
PS Filter cable
PS Filter cable
