13. Release the four hooks of the PS Case.
14. Remove the BA Cable from the PS Case and remove the PS Filter.
15. Remove the following parts from the PS Filter.
• BA Cable
• PS-MA Cable

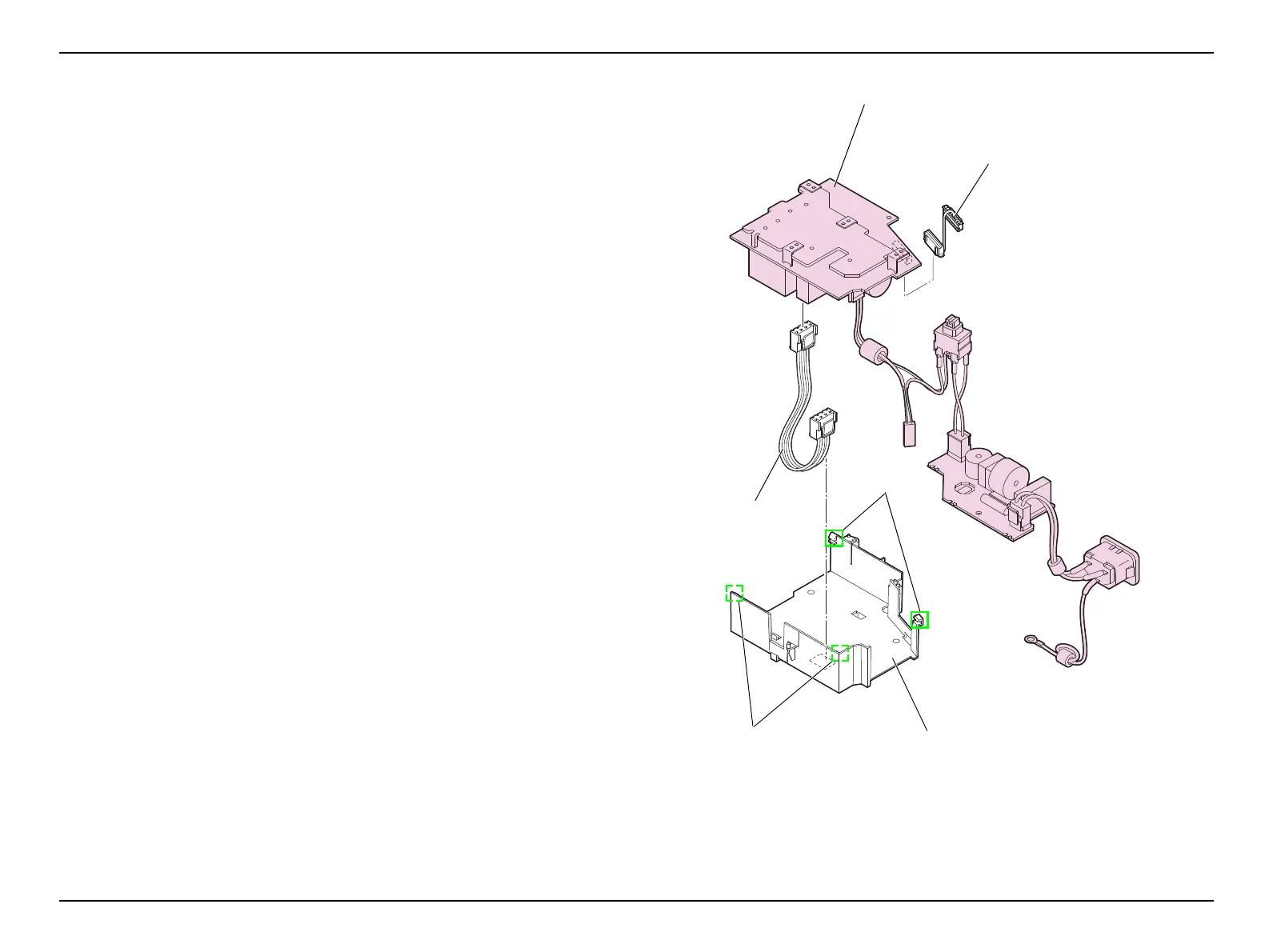

Figure 3-34.
Hooks
Hooks
BA Cable
PS Filter
PS-MA Cable
PS Case
