EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 98 Revision C

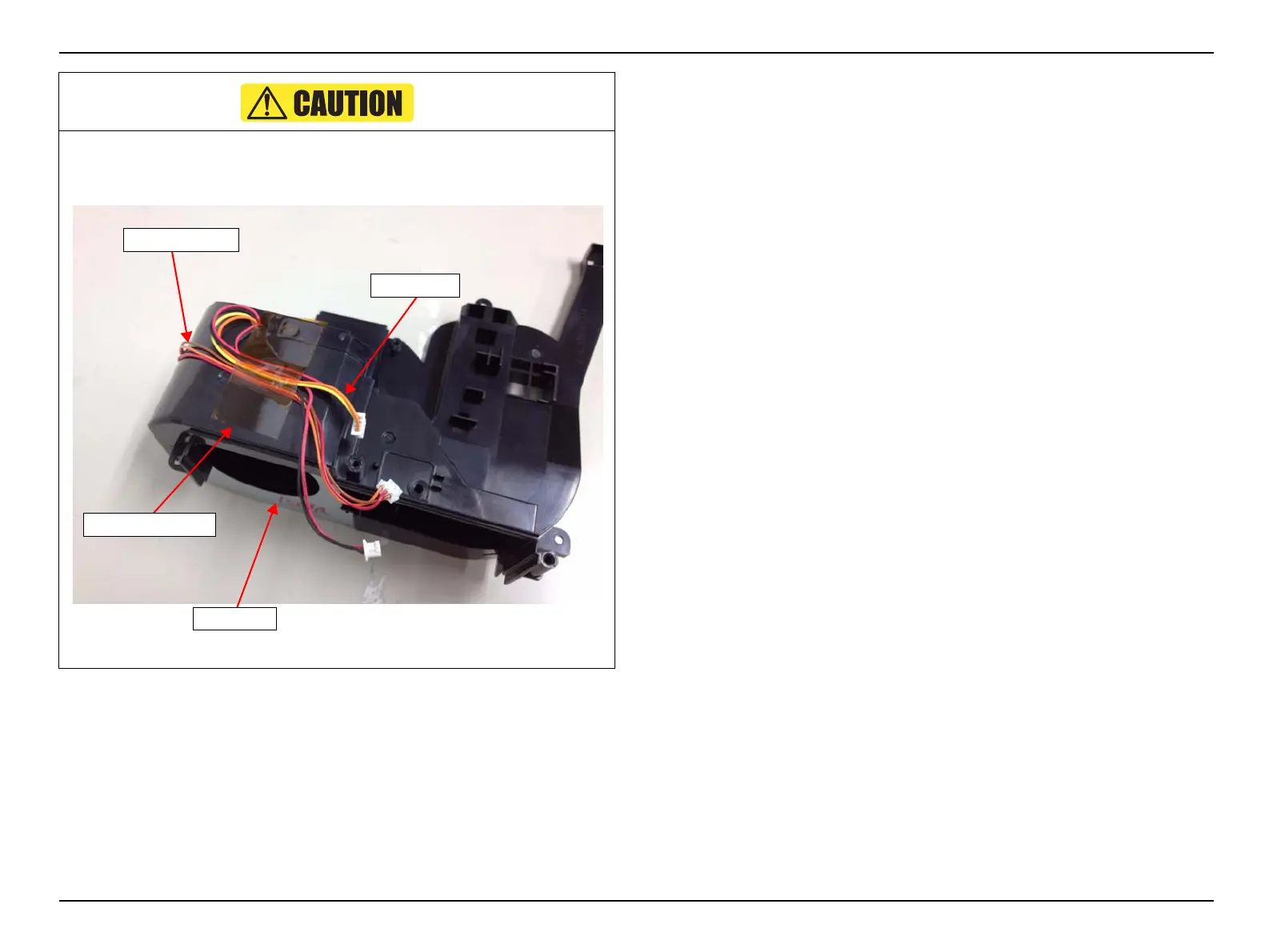

Route the TH Cable and INT Fan Cable as shown below and secure them with a heat-
resistant tape.
TH Cable
LV Duct
INT Fan Cable
heat-resistant tape
