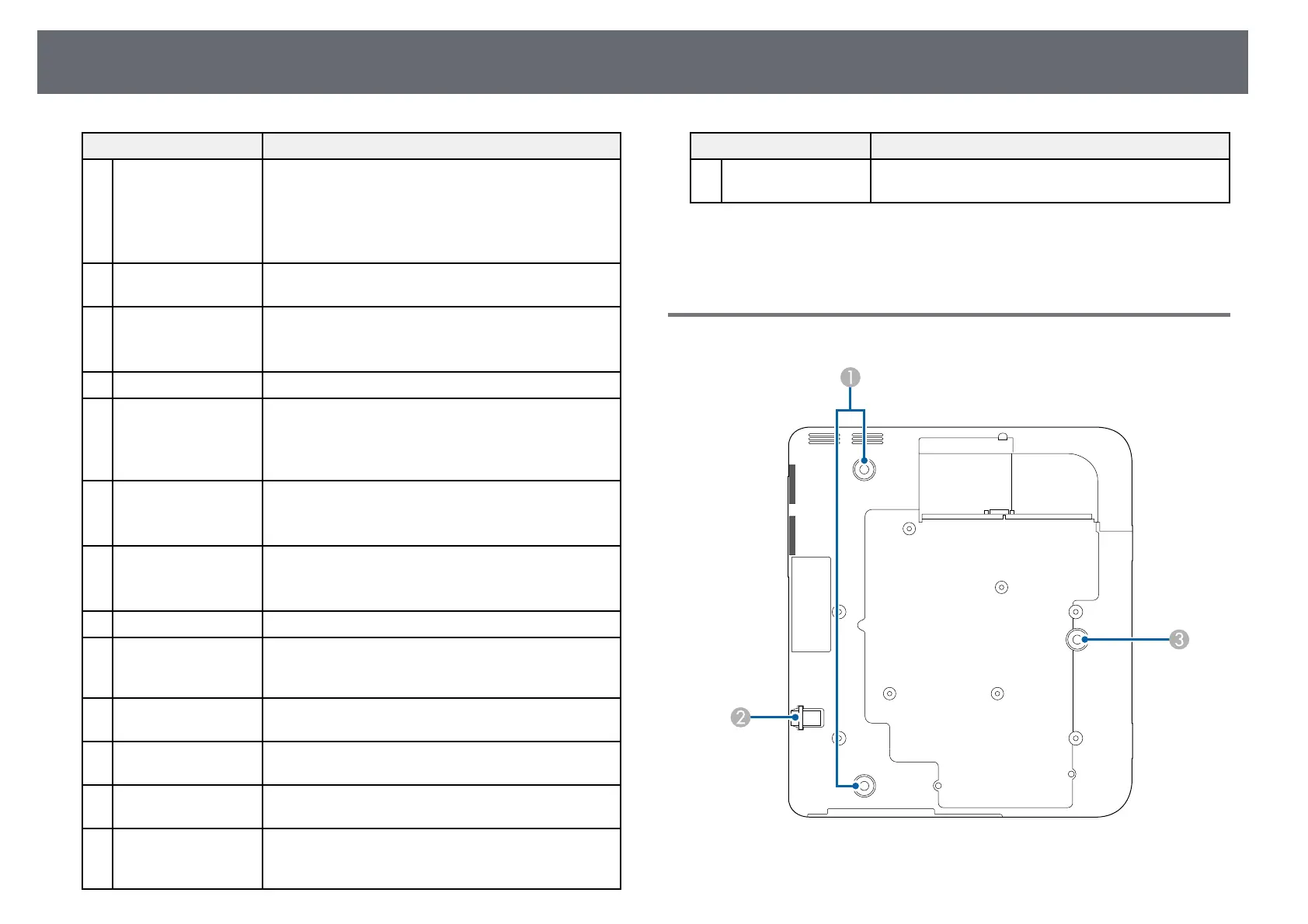

Projector Parts and Functions
11
Name Function
C
Audio port Inputs audio from equipment connected to the Video
port.
Inputs audio from other devices when projecting
images from the device connected to the USB-A port.
From now on, referred to as the Audio 2 port.
D
Audio Out port Outputs audio from the current input source to an
external speaker.
E
Audio port Inputs audio from equipment connected to the
Computer port.
From now on, referred to as the Audio 1 port.
F
Power inlet Connects the power cord to the projector.
G
HDMI1/MHL port Inputs video signals from HDMI compatible video
equipment and computers, or MHL (Mobile High-
Definition) compatible mobile devices.
This projector is compatible with HDCP.
H
HDMI2 port Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
I
HDMI3 port Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
J
LAN port Connects a LAN cable to connect to a network.
K
USB-B port Connects a USB cable to the computer to project
computer images or to use the Wireless Mouse
function.
L
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
M
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
N
Computer port Inputs image signals from a computer and component
video signals from other video sources.
O
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (This port is for control use and
should not normally be used.)
Name Function
P
Wireless LAN module
slot
Install the wireless LAN module.
gg Related Links
• "Projector Connections" p.17
Projector Parts - Base
