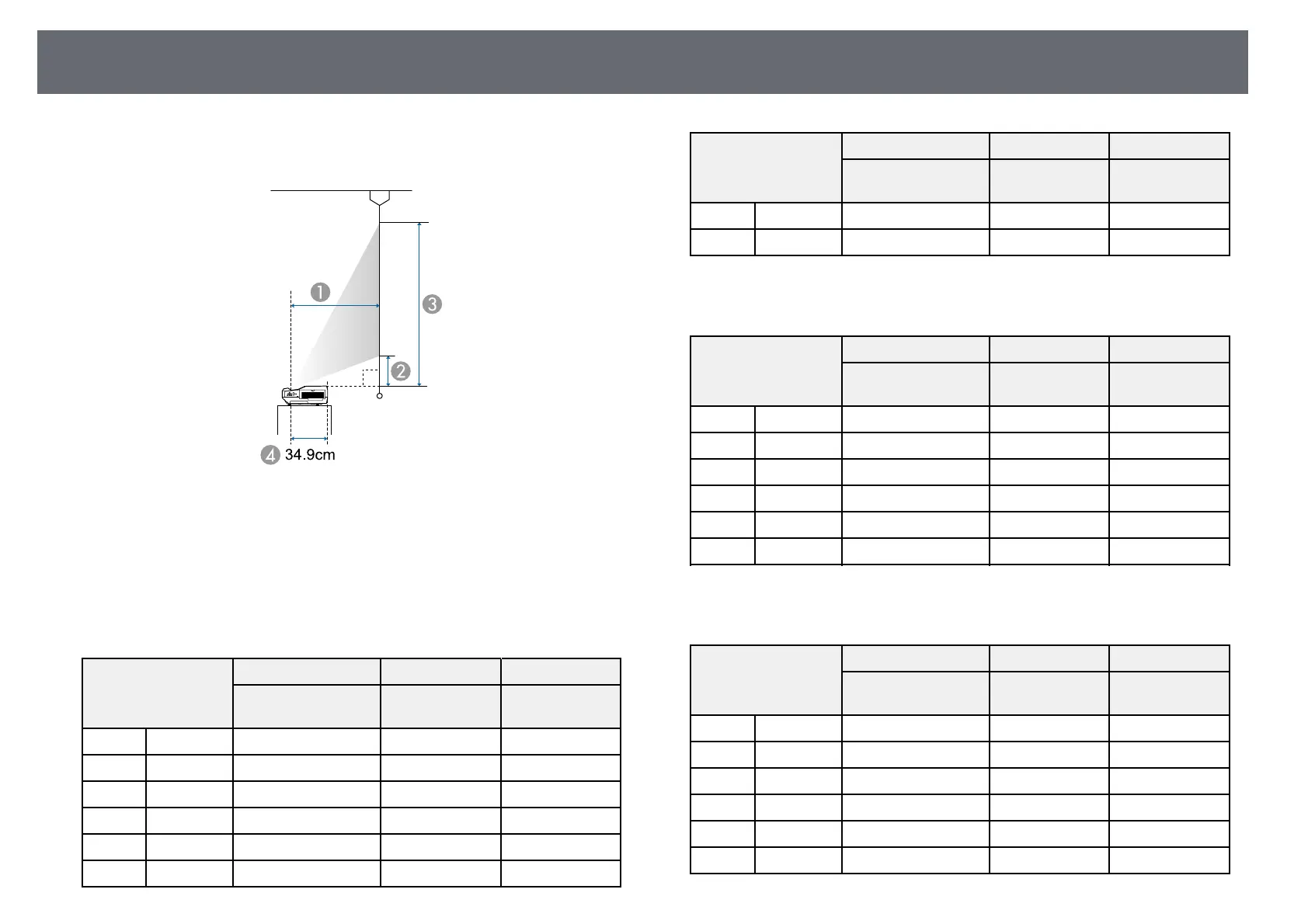

Screen Size and Projection Distance
159
Check the table here to determine how far to place the projector from the
screen based on the size of the projected image.
A
Projection distance (cm)
B
Distance from the projector to the bottom of the screen (cm)
C
Distance from the projector to the top of the screen (cm)
D
Distance from the center of the lens to the rear of the projector (cm)
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
70" 151 × 94 40.5 - 55.8 12.9 107.2
75" 162 × 101 43.6 - 60.1 14.3 115.3
80" 172 × 108 46.7 - 64.3 15.7 123.4
90" 194 × 121 53.0 - 72.8 18.6 139.7
100" 215 × 135 59.3 * 21.4 156.0
110" 237 × 148 65.6 * 24.2 172.2
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
120" 259 × 162 71.9 * 27.0 188.5
130" 280 × 175 78.1 * 29.8 204.8
* Project using Wide (maximum zoom).
4:3 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
70" 142 × 107 46.3 - 63.7 15.5 122.2
80" 163 × 122 53.4 - 73.3 18.7 140.6
90" 183 × 137 60.5 * 21.9 159.0
100" 203 × 152 67.6 * 25.1 177.5
110" 224 × 168 74.7 * 28.2 195.9
114" 232 × 174 77.5 * 29.5 203.2
* Project using Wide (maximum zoom).
16:9 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
70" 155 × 87 41.7 - 57.5 18.3 105.5
80" 177 × 100 48.1 - 66.2 21.9 121.5
90" 199 × 112 54.6 - 74.9 25.5 137.6
100" 221 × 125 61.0 * 29.1 153.6
110" 244 × 137 67.5 * 32.6 169.6
120" 266 × 149 73.9 * 36.2 185.6
