Projector Parts and Functions
12
Name Function
A
Rear feet Turn to extend and retract the feet to adjust the
horizontal tilt.
B
Security cable
attachment point
Pass a commercially available wire lock through here
and lock it in place.
C
Front adjustable foot Extend the foot to adjust the position of the image.
Caution
This projector is designed to be placed on a flat surface such as table. Do not use
the screw holes on the bottom of the projector to attach commercially available
mounting hardware. If you suspend the projector from a ceiling or install it on a
wall using these screw holes, it could fall and cause damage or injury.
gg Related Links
• "Installing a Security Cable" p.86

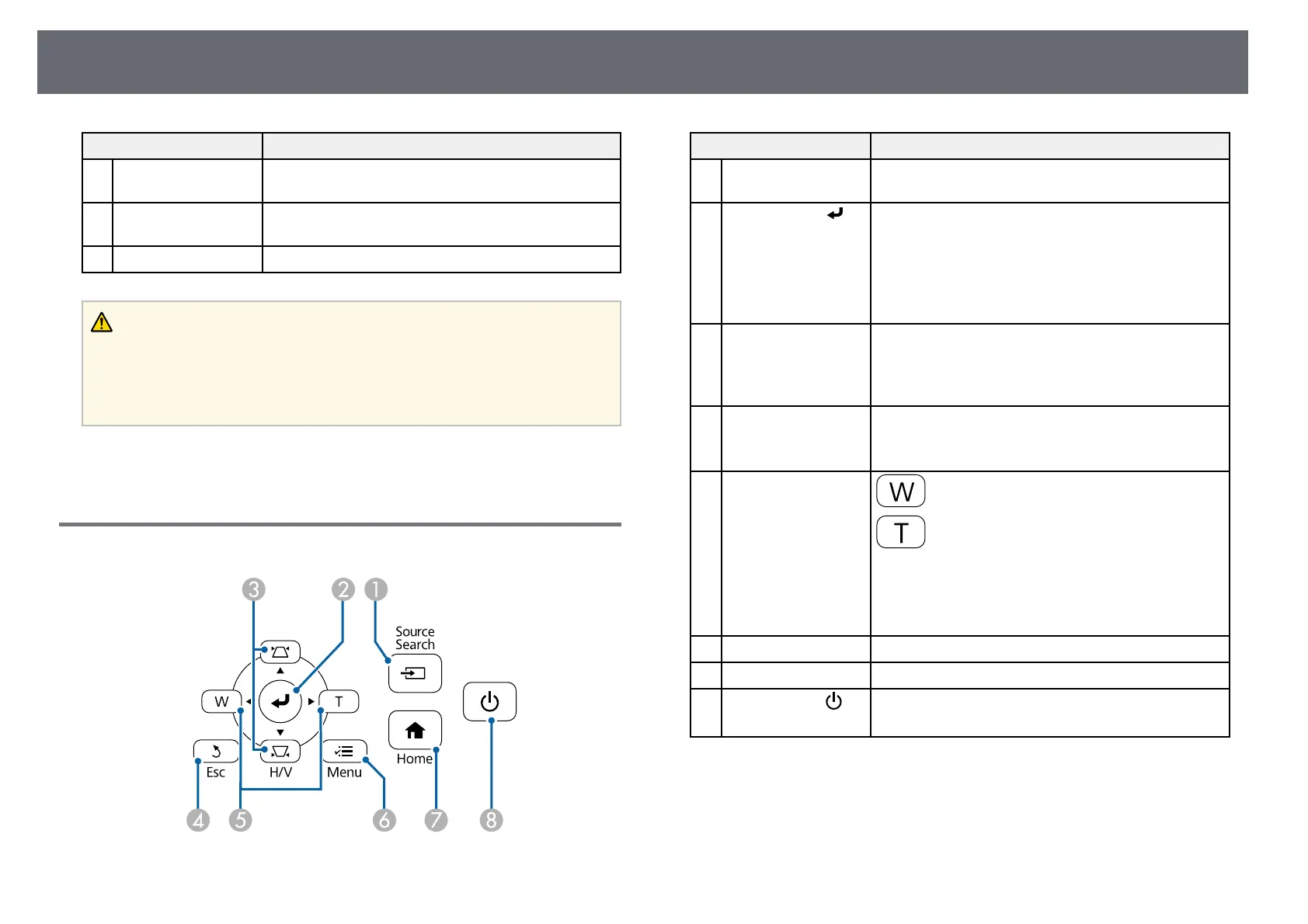

Projector Parts - Control Panel
Name Function
A
[Source Search]
button
Changes to the next input source.
B
[Enter] button [ ] Enters the current selection and moves to the next level
while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
From now on, referred to as the [Enter] button.
C
Keystone adjustment
buttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
D
[Esc] button Stops the current function.
Moves back to the previous menu level while
displaying the projector's menu.
E
Wide/Tele buttons
and arrow buttons
: Enlarges the size of the projected image.
: Reduces the size of the projected image.
Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
F
[Menu] button Displays and closes the projector's menu.
G
[Home] button Displays and closes the Home screen.
H
Power button [ ]
Turns the projector on or off.
From now on, referred to as the power button.
gg Related Links
• "Home Screen" p.30
• "Selecting an Image Source" p.47
• "Correcting the Image Shape with the Keystone Buttons" p.38
• "Resizing the Image with the Buttons" p.45
