Epson EH-TW480 User Manual

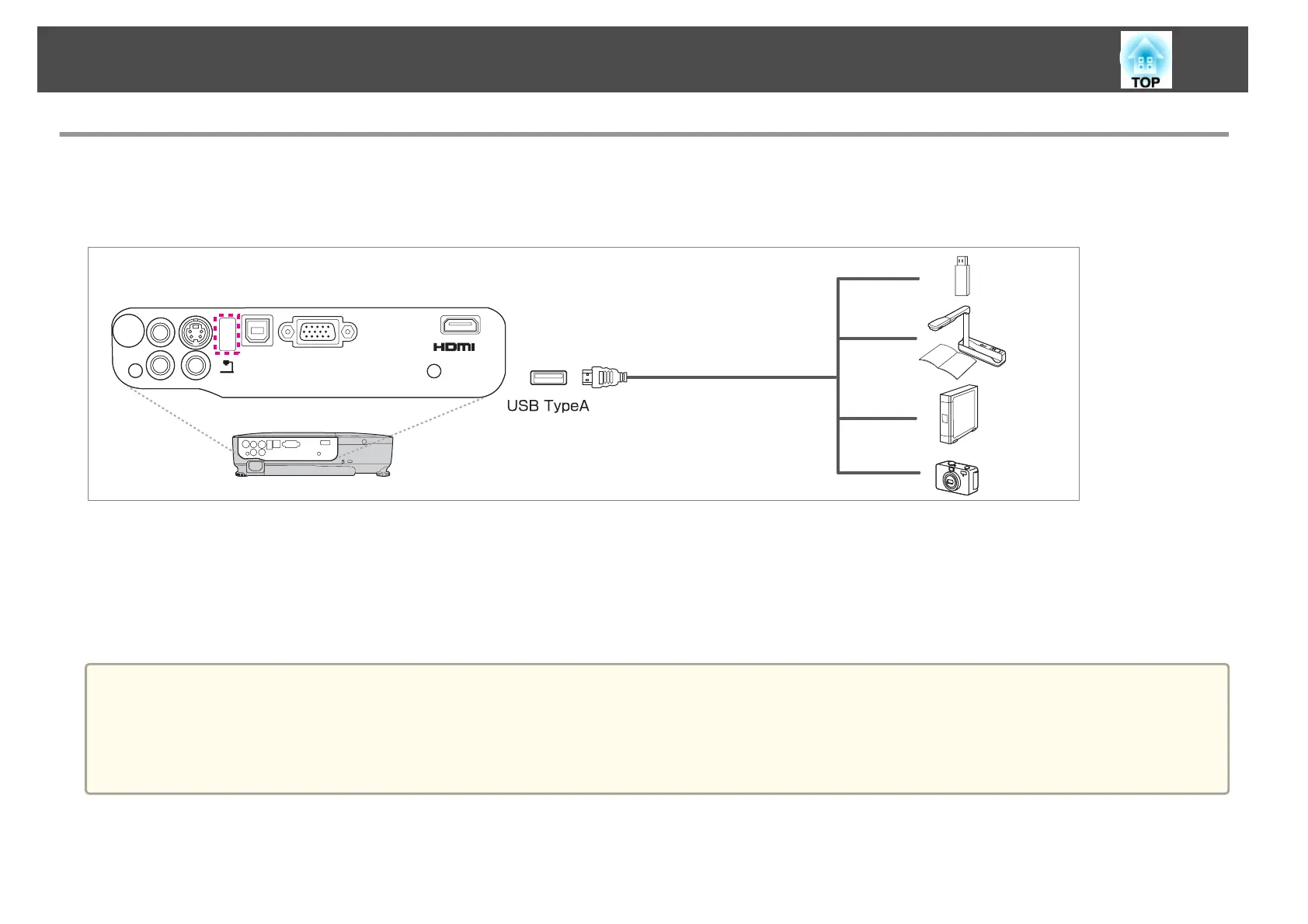

Connecting USB Devices
You can connect devices such as USB memory, the optional Document Camera, and USB compatible hard disks and digital cameras.
Using the USB cable supplied with the USB device, connect the USB device to the USB(TypeA) port on the projector.
When the USB device is connected, you can project image files on the USB memory or digital camera using Slideshow.
s "Slideshow examples" p.39
If the Document Camera is connected while projecting images from another input port, press the [USB] button on the remote control, or the [Source Search]
button on the control panel, to switch to images from the Document Camera.
s "Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.24
Attention
• If you use a USB hub, the connection may not operate correctly. Devices such as digital cameras and USB devices should be connected to the projector directly.
• When connecting and using a USB-compatible hard disk, make sure you connect the AC adaptor supplied with the hard disk.
• Connect a digital camera or hard disk to the projector using the USB cable provided with the device.
• Use a USB cable less than 3 m in length. If the cable exceeds 3 m, Slideshow may not function correctly.
Connecting Equipment
21

Epson EH-TW480 Specifications

General

Matrix size	0.59 \
Number of colors	16.78 million colors
Projection distance	1.68 - 2.02 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	33 - 318 \
Projector native resolution	WXGA (1366x768)
Keystone correction, horizontal	30 °
Aspect ratio	16:10
RS-232 ports	-
Dimensions (WxDxH)	295 x 79 x 228 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Auto
Offset	100 %
Throw ratio	1.3 - 1.56:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	750 h
Service life of light source (economic mode)	5000 h
DVI port	No
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
HD-Ready	Yes
Supported video modes	720p
RMS rated power	2 W
Product color	Black
LED indicators	Power, Y
Market positioning	Home cinema
Cable lock slot type	Kensington
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	3.3 W
Power consumption (typical)	270 W
Noise level	29 dB
Country of origin	China
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	3834 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	361 mm
Package width	336 mm
Package height	165 mm
Package weight	3750 g
