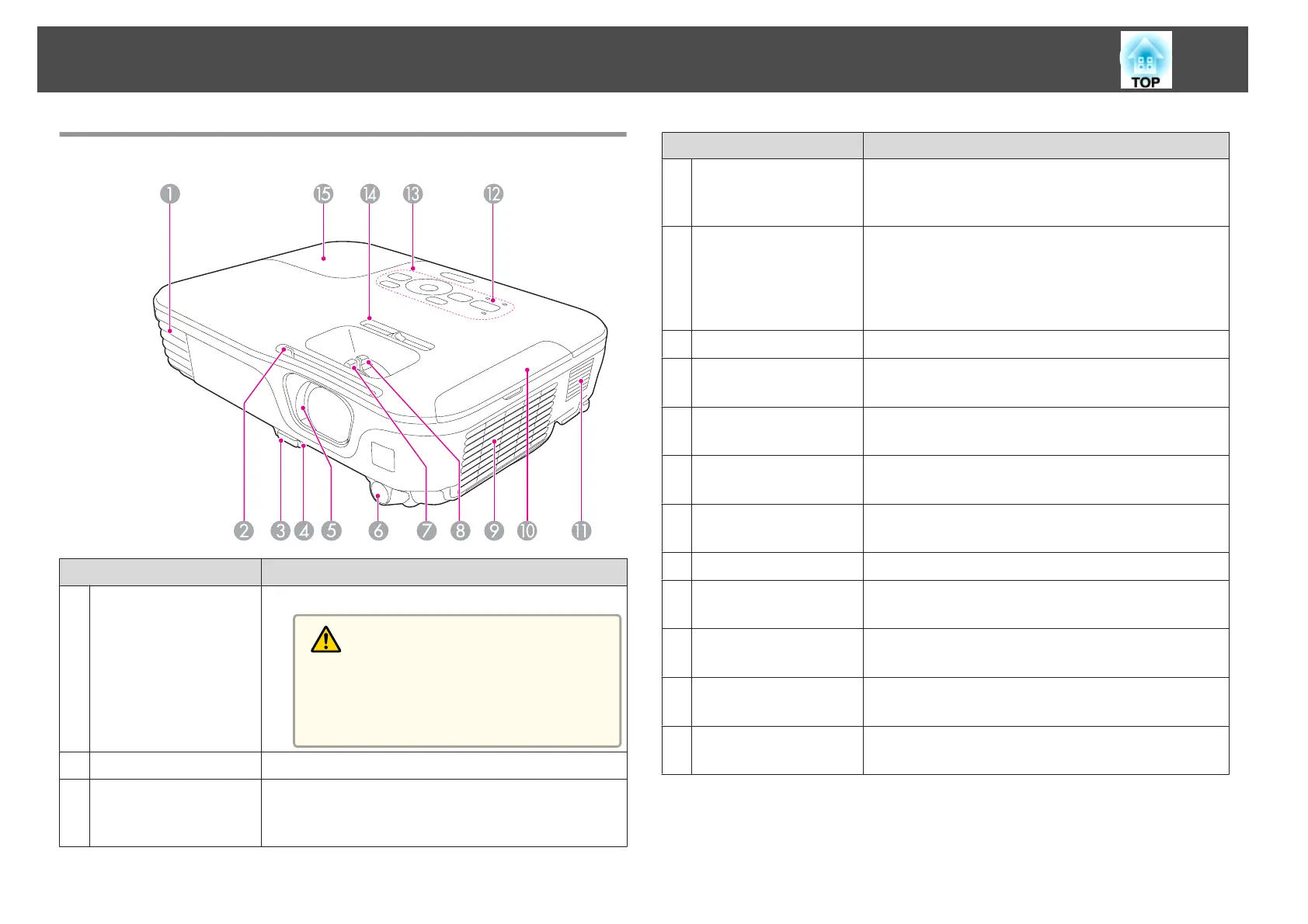

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
B
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
C
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.33
Name Function
D
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.33
E
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.44
F
Remote receiver
Receives signals from the remote control.
G
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.34
H
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.33
I
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.80
J
Air filter cover
Opens and closes the air filter cover.
s "Replacing the Air Filter" p.85
K
Speaker
Outputs audio.
L
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.67
M
Control panel
Operates the projector.
s "Base" p.9
N
Horizontal keystone
adjuster
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.30
O
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.82
