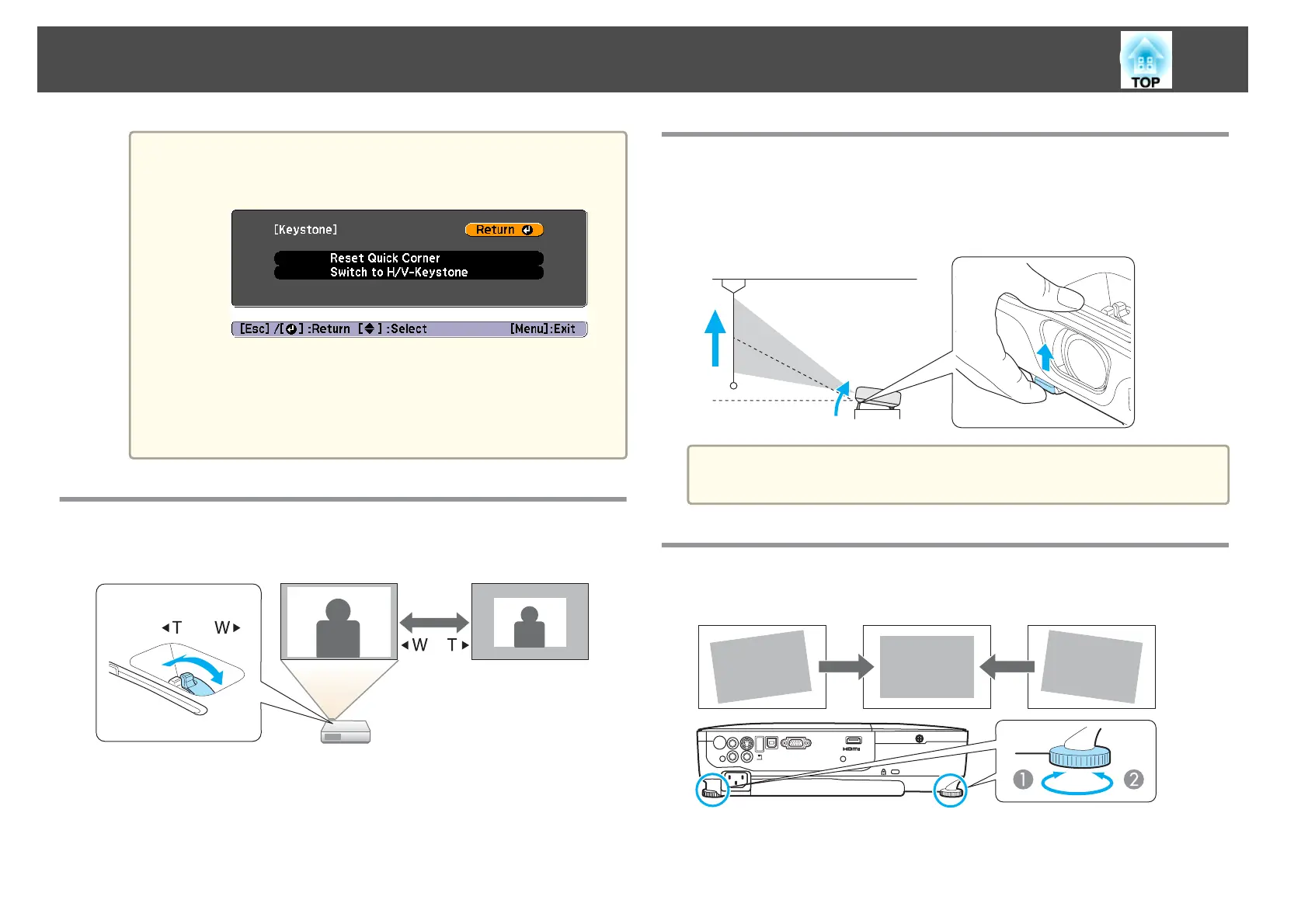

Epson EH-TW480 User Manual

a
If the [Esc] button is held down for about two seconds while
the corner selection screen from step 4 is displayed, the
following screen is displayed.
Reset Quick Corner: Resets the result of Quick Corner
corrections.
Switch to H/V-Keystone: Switches the correction method to
H/V-Keystone.
s "Settings Menu" p.61
Adjusting the Image Size
Turn the zoom ring to adjust the size of the projected image.
Adjusting the Image Position
Press the foot adjust lever to extend and retract the front adjustable foot.
You can adjust the position of the image by tilting the projector up to 12
degrees.
a
The larger the angle of tilt, the harder it becomes to focus. Install the
projector so that it only needs to be tilted at a small angle.
Adjusting the Horizontal Tilt
Extend and retract the rear feet to adjust the projector's horizontal tilt.
A
Extend the rear foot.
B
Retract the rear foot.
Adjusting Projected Images
33

Epson EH-TW480 Specifications

General

Matrix size	0.59 \
Number of colors	16.78 million colors
Projection distance	1.68 - 2.02 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	33 - 318 \
Projector native resolution	WXGA (1366x768)
Keystone correction, horizontal	30 °
Aspect ratio	16:10
RS-232 ports	-
Dimensions (WxDxH)	295 x 79 x 228 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Auto
Offset	100 %
Throw ratio	1.3 - 1.56:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	750 h
Service life of light source (economic mode)	5000 h
DVI port	No
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
HD-Ready	Yes
Supported video modes	720p
RMS rated power	2 W
Product color	Black
LED indicators	Power, Y
Market positioning	Home cinema
Cable lock slot type	Kensington
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	3.3 W
Power consumption (typical)	270 W
Noise level	29 dB
Country of origin	China
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	3834 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	361 mm
Package width	336 mm
Package height	165 mm
Package weight	3750 g
