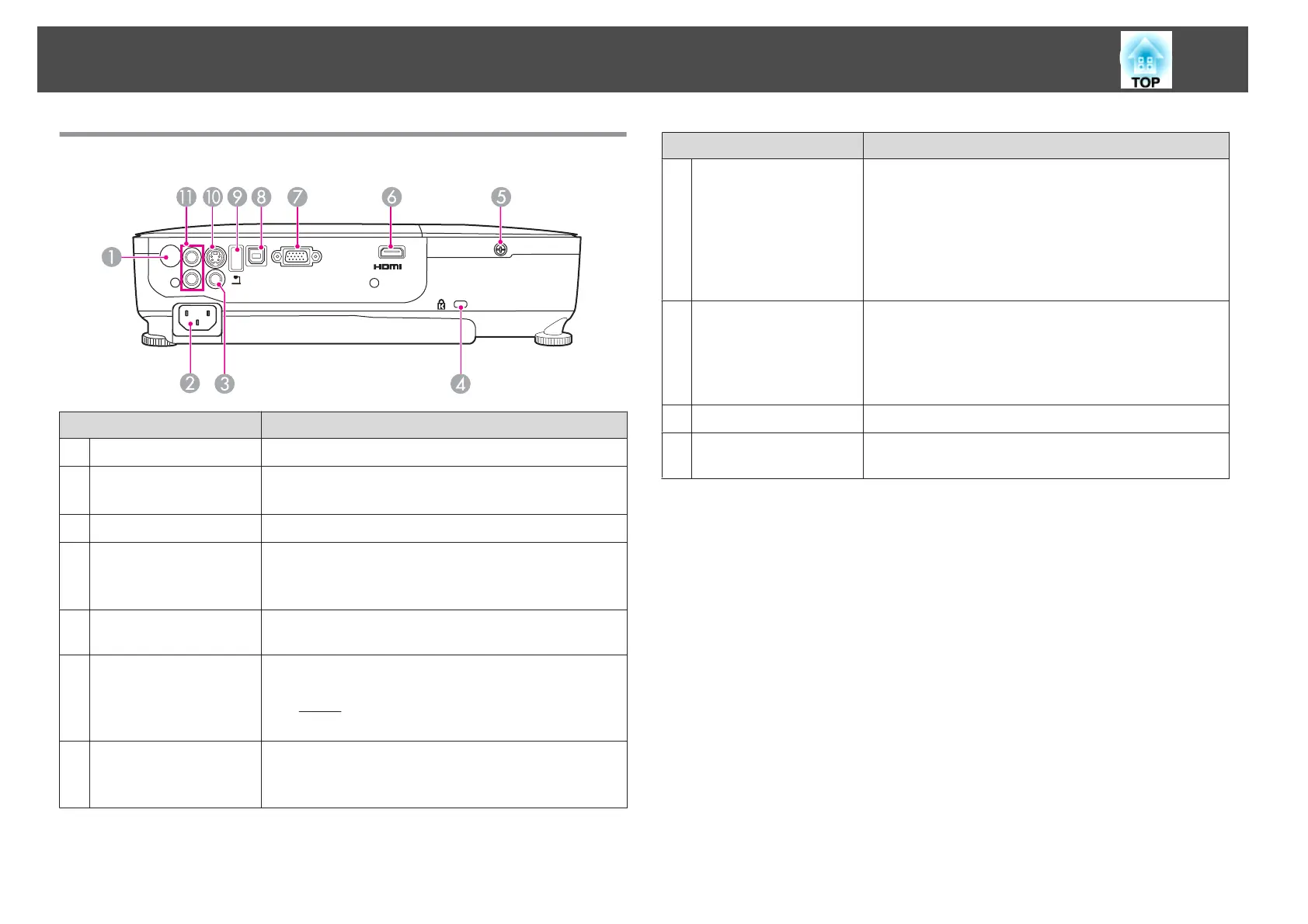

Epson EH-TW480 User Manual

Rear
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Power inlet
Connects the power cable to the projector.
s Quick Start Guide
C
Video port
Inputs composite video signals from video sources.
D
Security slot
The Security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.53
E
Lamp Cover Fixing
Screw
Screw to fix the lamp cover in place.
F
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.17
G
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
Name Function
H
USB(TypeB) port
• Connects the projector to a computer via the USB cable,
and the image on the computer is projected.
s
"Projecting with USB Display" p.25
• Also use this port to connect to a computer via the USB
cable to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.47
I
USB(TypeA) port
• Connects a USB memory device or a digital camera, and
projects images as a Slideshow.
s "Projecting Without a Computer (Slideshow)"
p.39
• Connects the optional Document Camera.
J
S-Video port
For S-video signals from video sources.
K
Audio-L/R port
Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
Part Names and Functions
8

Epson EH-TW480 Specifications

General

Matrix size	0.59 \
Number of colors	16.78 million colors
Projection distance	1.68 - 2.02 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	33 - 318 \
Projector native resolution	WXGA (1366x768)
Keystone correction, horizontal	30 °
Aspect ratio	16:10
RS-232 ports	-
Dimensions (WxDxH)	295 x 79 x 228 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Auto
Offset	100 %
Throw ratio	1.3 - 1.56:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	750 h
Service life of light source (economic mode)	5000 h
DVI port	No
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
HD-Ready	Yes
Supported video modes	720p
RMS rated power	2 W
Product color	Black
LED indicators	Power, Y
Market positioning	Home cinema
Cable lock slot type	Kensington
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	3.3 W
Power consumption (typical)	270 W
Noise level	29 dB
Country of origin	China
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	3834 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	361 mm
Package width	336 mm
Package height	165 mm
Package weight	3750 g
