Epson EH-TW480 User Manual

Warning
• When replacing the lamp because it has stopped illuminating, there is a
possibility that the lamp may be broken. If replacing the lamp of a projector
which has been installed on the ceiling, you should always assume that the
lamp is cracked, and you should stand to the side of the lamp cover, not
underneath it. Remove the lamp cover gently.
• Never disassemble or remodel the lamp. If a modified or disassembled lamp
is installed in the projector and used, it could cause a fire, electric shock, or
an accident.
Caution
Wait until the lamp has cooled down sufficiently before removing the lamp
cover. If the lamp is still hot, burns or other injuries may result. It takes about
one hour after the power has been turned off for the lamp to be cool enough.

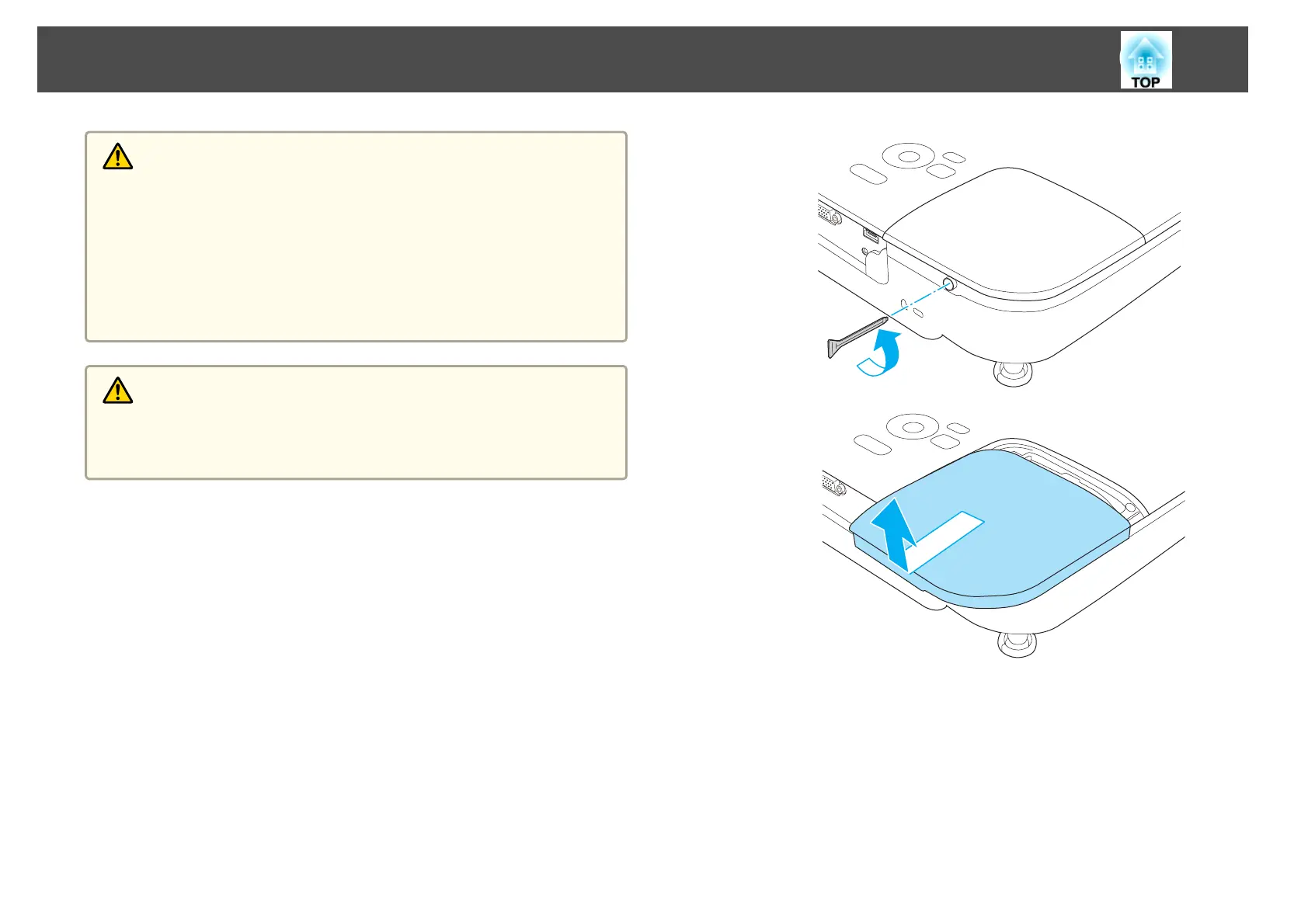

a
After you turn off the projector's power and the confirmation
buzzer beeps twice, disconnect the power cable.
b
Wait until the lamp has sufficiently cooled down, and then remove
the lamp cover at the top of the projector.
Loosen the Lamp cover fixing screw with the screwdriver supplied
with the new lamp unit or a Phillips screwdriver. Then slide the
lamp cover straight forward and lift it to remove.
c
Loosen the two lamp fixing screws.
Replacing Consumables
83

Epson EH-TW480 Specifications

General

Matrix size	0.59 \
Number of colors	16.78 million colors
Projection distance	1.68 - 2.02 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	33 - 318 \
Projector native resolution	WXGA (1366x768)
Keystone correction, horizontal	30 °
Aspect ratio	16:10
RS-232 ports	-
Dimensions (WxDxH)	295 x 79 x 228 mm
Connectivity technology	Wired
F-number (relative aperture)	1.58
Focus	Auto
Offset	100 %
Throw ratio	1.3 - 1.56:1
Optical zoom	1.2 x
Focal length range	16.9 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	750 h
Service life of light source (economic mode)	5000 h
DVI port	No
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
HD-Ready	Yes
Supported video modes	720p
RMS rated power	2 W
Product color	Black
LED indicators	Power, Y
Market positioning	Home cinema
Cable lock slot type	Kensington
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	3.3 W
Power consumption (typical)	270 W
Noise level	29 dB
Country of origin	China
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	3834 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	72 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	361 mm
Package width	336 mm
Package height	165 mm
Package weight	3750 g
